Spraymec 9150 WPC EVO
7Pages

{{requestButtons}}

Catalog excerpts

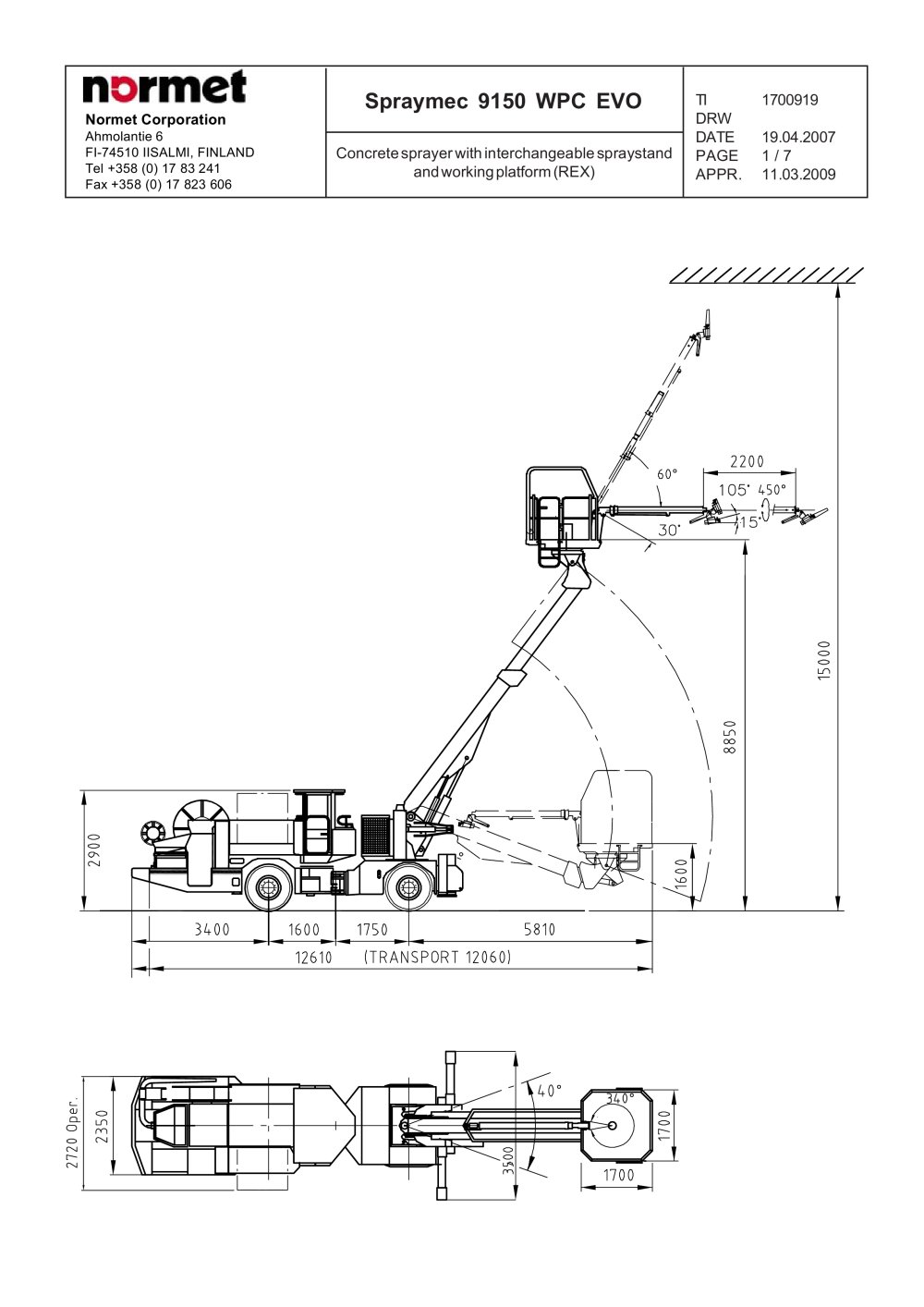

Spraymec 9150 WPC EVO - 1

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 1 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606

Open the catalog to page 1
Spraymec 9150 WPC EVO - 2

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 2 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606

Open the catalog to page 2
Spraymec 9150 WPC EVO - 3

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 3 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 A=60 m2 4 m 5,5 m 4 m A=270 m2 16 m 7 m 15 m 60o A=348 m2 14 m 30o 12 m 12 m Spraying reach

Open the catalog to page 3
Spraymec 9150 WPC EVO - 4

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 4 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606

Open the catalog to page 4
Spraymec 9150 WPC EVO - 5

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 5 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 Working area with Rex platform

Open the catalog to page 5
Spraymec 9150 WPC EVO - 6

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 6 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 DIMENSIONS Length 12610 mm Width 2350 mm Height 2900 mm Wheel base 3350 mm Ground clearance 320 mm Outer turning radius 7850 mm Inner turning radius 3450 mm Weight, max. total 20700 kg SPRAYPUMP Cylinder diameter 180 mm Cylinder stroke 630 mm Pumping pressure 65 bar Pumping capacity 4 - 33 m3/h 1000 l space for container Dosing rate...

Open the catalog to page 6
Spraymec 9150 WPC EVO - 7

Spraymec 9150 WPC EVO TI 1700919 DRW DATE 19.04.2007 PAGE 7 / 7 APPR. 11.03.2009 Concrete sprayer with interchangeable spraystand and working platform (REX) Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 8. CABLE REEL KKH35 for power supply of the electrically operated functions, including 100 m of cable. 9. SUPPORT LEGS 1 pair in front and 1 pair at rear are hydraulically operated, front pair with lateral extensions. 10. WORKING LIGHTS 11. SAFETY CANOPY over the drivers seat fulfills the European safety regulations. 12. REAR BUMPER...

Open the catalog to page 7
