Charmec 9910 BC ANX 1000
4Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

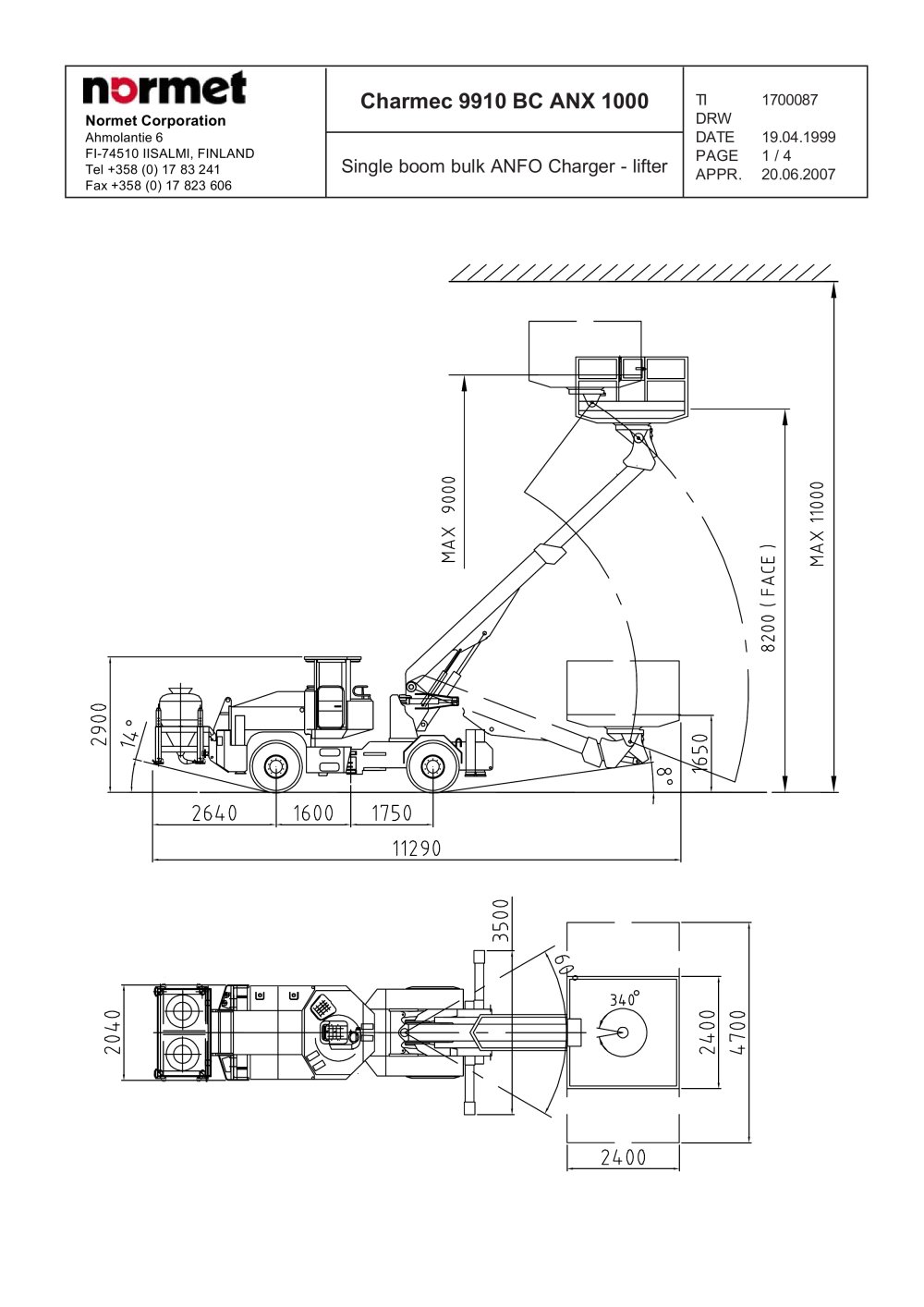

Charmec 9910 BC ANX 1000 TI 1700087 DRW DATE 19.04.1999 PAGE 1 / 4 Single boom bulk ANFO Charger - lifter APPR. 20.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606

Open the catalog to page 1

Charmec 9910 BC ANX 1000 TI 1700087 DRW DATE 19.04.1999 PAGE 2 / 4 Single boom bulk ANFO Charger - lifter APPR. 20.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 12,5 m 10 m

Open the catalog to page 2

Charmec 9910 BC ANX 1000 TI 1700087 DRW DATE 19.04.1999 PAGE 3 / 4 Single boom bulk ANFO Charger - lifter APPR. 20.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 DIMENSIONS Length 11290 mm Width 2400 mm Height 2900 mm Wheel base 3350 mm Ground clearance 320 mm Outer turning radius 7780 mm Inner turning radius 3530 mm Weight, operating 19500 kg Boom lift - 20o ... + 53o Boom slew +/- 30o Vertical working reach, max 11 m Vertical working reach, (FACE) 10 m Platform slew 340o Platform size 2,40 m x 2,40 m * extended 2,40 m x...

Open the catalog to page 3

Charmec 9910 BC ANX 1000 TI 1700087 DRW DATE 19.04.1999 PAGE 4 / 4 Single boom bulk ANFO Charger - lifter APPR. 20.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 OPTIONS AND ACCESSORIES: * PPE 150 V- electrically driven hydraulic power pack for boom operation * HGEN60 - hydraulically operated generating set * Manually or hydraulically driven cable reel with cable * Screen kit - kit for net installing * HHPW- hydraulic driven high pressure washing kit * HD - power train; 120 kW engine * Driver's cabin * Anfo Vessels * 2 x 720...

Open the catalog to page 4
