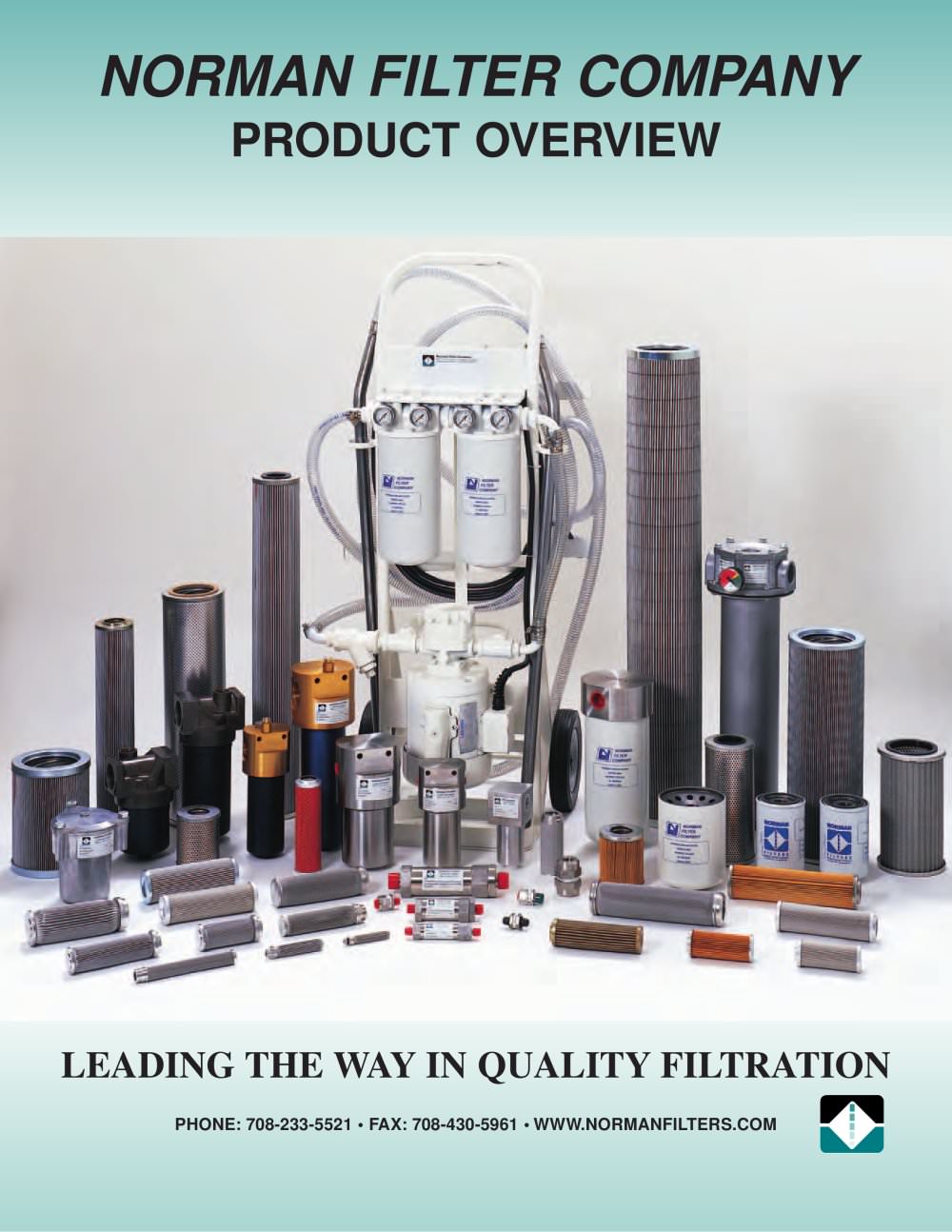

Product Overview

Product Overview
1 / 6 PagesView full catalog

Product Overview

Product catalog summary
Product Overview
Norman Filter Company specializes in high-quality filtration solutions, offering a wide range of products designed for various pressure and temperature conditions. Their products are suitable for applications in hydraulic systems, lube oil systems, and more.
Key Features
  • Housing Materials: Options include anodized aluminum, 303, 316, and 17-4 stainless steel.
  • Flow Rates: Ranging from 0-50 gpm for oil and up to 4,000 SCFM for gases at high pressures.
  • Pressure Ratings: Maximum operating pressures up to 20,000 psi.
  • Temperature Range: -425°F to 600°F.
  • Port Sizes: Various NPT and SAE sizes available.
  • Bypass Settings: Standard settings at 0 and 50 psi, with optional settings available.
  • Element Cleanliness Indicators: Visual, electrical, and gauge ports available.
Filter Elements
  • Microglass elements with Beta 200 ratings in various micron sizes.
  • Stainless steel woven wire and sintered elements available in multiple micron ratings.
  • Cellulose elements for specific applications.
Product Series
  • 34500 Series: Designed for pressure applications up to 15,000 psi, ideal for protecting critical components.
  • 4500, 14500, 34500, and 54500 Series: High-pressure tee-type filters with various housing materials and micron ratings.
  • 4300 and 4400 Series: Compact in-line filters suitable for cryogenic applications.
  • 4100 Series: Mini tee-type filters with easy change-out and high dirt holding capacity.
  • 4200 Series: Compact in-line filters for critical testing equipment.
  • F4173 Series: High-pressure disc filters for instrumentation and valve protection.
  • 3000 Series: Medium pressure tee-type filters for lube oil systems.
  • 3100 Series: Duplex filters allowing change-out without system downtime.
  • 6000 Series: Suction strainers for pump inlets with epoxy bonded protection.
  • 5000 Series: Spin-on filters for hydraulic and lube oil applications.
Additional Products
  • Filter Transfer Cart: Portable filtration system with easy-to-change elements and built-in bypass valve.
  • Filter Panel: Off-line filtration system for hydraulic and lube oil fluids.
  • Mighty Might: Compact filter/pump device for industrial fluid conditioning and transfer.
High Viscosity Filtration Systems
  • Designed to extend the life of gearboxes and bearings, available in cart, panel, and Mighty Might configurations.
  • Capable of handling high viscosity fluids with filtration down to 3 microns.
