NORDEX

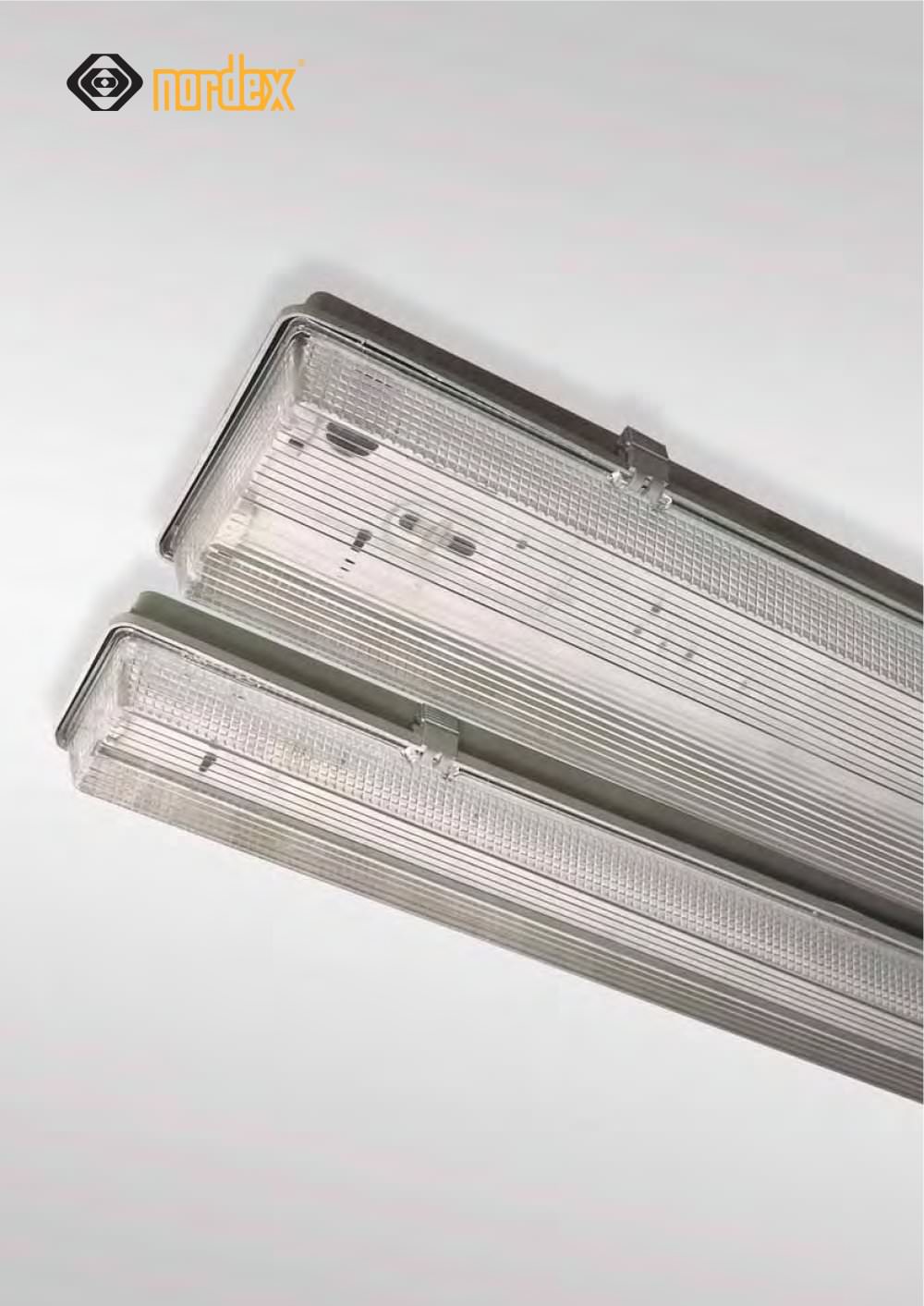

TINAK NON CORROSIVE LUMINAIRES

TINAK NON CORROSIVE LUMINAIRES

Product catalog summary

Specifications:
The document outlines the specifications for the Tinak range of non-corrosive luminaires, which include 18W, 36W, and 58W single and twin lamp configurations. These luminaires are fully enclosed and designed to be non-corrosive.

Applications:
These luminaires are suitable for humid and dusty environments such as workshops, laboratories, loading bays, and food processing plants, where corrosive vapors may be present.

Construction:
The body is constructed from high-impact injection-molded thermoresistant acrylic, while the diffuser is made from clear injection-molded acrylic with internal prisms for improved light distribution. The diffuser is hinged for easy lamp replacement, and a continuous gasket seal is injected into the body. The gear tray is made of white prepainted steel and is secured with quick-release toggle clips. Nylon suspension straps are included for installation.

Electrical:
The control gear is switch start as standard, rated at 230V or 240V 50 Hz. A three-way terminal block is provided, and high-temperature PVC insulated wiring is used throughout.

Mechanical:
Cable entry is facilitated through a 20mm grommeted entry hole or a 20mm knockout. Recessed suspension lugs are available for chain suspension, and the luminaires can be mounted directly or suspended via conduit entries.

Accessories:
High-frequency ballasts are available upon request.

Standards:
The luminaires are designed in accordance with CEI 34 - 21 and EN60598-1 standards.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:22.00pt "Arial", sans-serif; } .font4 { font:45.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Times New Roman", serif; } .font6 { font:11.00pt "Times New Roman", serif; } TIN AK NON CORROSIVE LUMINAIRES LAMP COMPAK/BNT IP65iAA RANGE The Tinak range consists of 18W 36W and 58W single and twin lamps fully enclosed non corrosive luminaires. APPLICATIONS Humid and dusty areas i.e. workshops, laboratories,...

Open the catalog to page 2
