NORDEX
AZAR CORROSION RESISTANT, WEATHER PROOF COMPACT FLOODLIGHT

AZAR CORROSION RESISTANT, WEATHER PROOF COMPACT FLOODLIGHT

Product catalog summary

Ordering Data
The document lists various models of floodlights with their respective codes and specifications. The models include NX 3640, NX 3680, NX 3610, NX 3650, NX 3620, NX 3660, NX 3631, NX 3671, NX 3628, NX 3668, NX 3612, NX 3652, NX 3642, NX 3682, NX 3636, and NX 3676. Each model is associated with specific lamp types and weights.

Product Description
The Azar® floodlight is a compact, corrosion-resistant, and weatherproof lighting solution with an IP 65 rating. It is designed for use with 70W HPS, 70W/150W HQI, and 80W MBF lamps. The floodlight is energy-efficient, using 75% less energy than traditional tungsten halogen lamps and offering a longer lamp life. It is suitable for applications requiring long operation periods, such as security lighting and floodlighting for buildings, signs, and monuments, especially in coastal areas.

Construction
The floodlight is constructed from high-quality, impact-resistant polycarbonate available in black or grey. It features an anodized aluminum reflector for a wide beam and a toughened glass front cover. The design includes a special gasket to ensure IP 65 protection.

Electrical Specifications
The floodlight includes a zinc-coated steel gear tray for mounting ballast and components. It uses a PG 11 compression type cable gland and high-temperature silicon insulated conductors.

Mechanical Specifications
The floodlight is mounted using a painted steel bracket.

Standards
The product is designed in accordance with CEI 34-21 and EN60598-1 standards.

Catalog excerpts

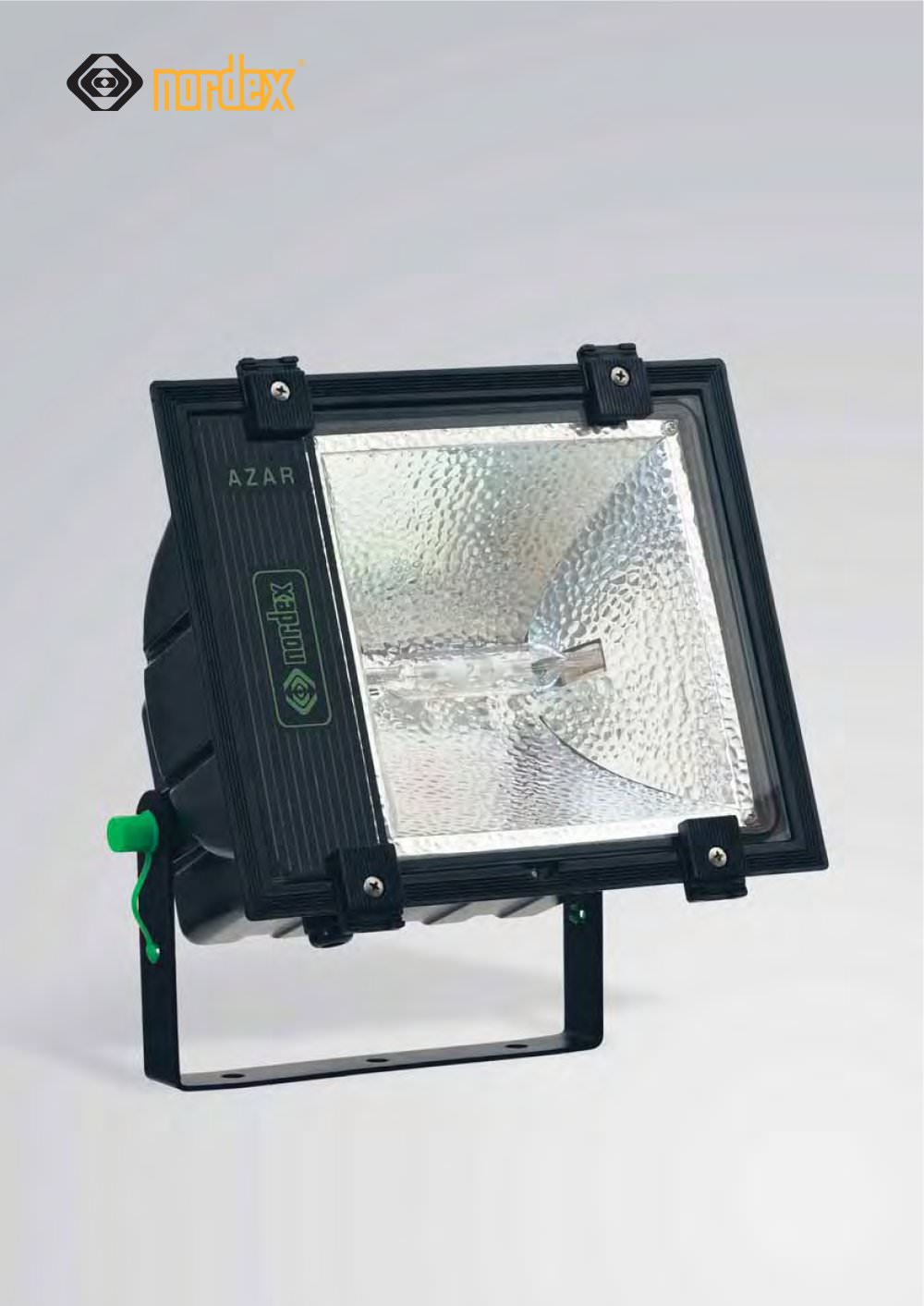

AZAR CORROSION RESISTANT, WEATHER PROOF COMPACT FLOODLIGHT-1

tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 1

AZAR CORROSION RESISTANT, WEATHER PROOF COMPACT FLOODLIGHT-2

CORROSION RESISTANT, WEATHER PROOF COMPACT FLOODLIGHT RANGE Compact corrosion resistant, weather proof IP 65 flood light with integral gear tray for use with70W HPS, 70W/150W HQI and 80W MBF lamps. APPLICATION Azarή is an ENERGY SAVING floodlight which uses 75% less energy than traditional tungsten halogen lamps with more than five times longer lamp life. Azar is particularly suitable for applications involving long periods of operation i.e. security lighting, flood lighting of buil- dings, shop signs, restaurants, monuments and car parks. This fitting is highly recommended for the sites near...

Open the catalog to page 2
