About Nordel
Nordel is a Lithuanian manufacturing company established in 2019, specializing in electrical and automation components. It serves electrical panel builders and industrial automation integrators across Europe, offering products like control panel components, electrical systems, and custom automation solutions. The company emphasizes innovation, efficiency, and compliance with international quality standards, with a focus on long-term partnerships.

Universal Connecting Terminals NLT
NLT terminals are designed for copper and aluminum conductors with cross-sections from 1.5 mm² to 240 mm². They feature IP20 protection, are rated for 1000 V AC and 1500 V DC, and include features like tightening torque labels and antioxidation grease. They comply with EN 60947-7-1:2009 and EN 61238-1:2003 CLASS A standards.

Distribution Blocks NLDB
NLDB distribution blocks are for DIN rail or solid surface mounting, handling conductors from 1.5 mm² to 185 mm². They operate at a maximum temperature of 90°C, offer IP20 protection, and comply with 1000V AC / 1500V DC standards. Features include bimetal cross-sections and tin-plated contact surfaces.

Surge Protective Devices and LED Cabinet Lamps
AC Surge Protective Devices: Models like NSPD40-275/xx are Class II / Type 2 devices for three-phase systems, with surge ratings of 20 kA and 40 kA.
DC Surge Protective Devices: Designed for DC systems, with surge ratings of 20 kA and 40 kA.
PoE Surge Protector: Supports PoE with nominal currents up to 1A.
PV Surge Protective Devices: For photovoltaic systems, with surge ratings of 12.5 kA and 40 kA.
LED Cabinet Lamps: Models operate from 24-265V AC/DC, with a service life of 60,000 hours.

Insulated Flexible Busbars
The NORDFLEX series includes copper, tin-plated copper, and aluminum busbars, rated for 1000 V AC to 1500 V DC. They feature high mechanical and electrical resistance, are halogen-free, and comply with EN 61439-1:2011 standards.

Shear Bolt Lugs and Connectors
Designed for aluminum and copper conductors up to 12kV, these connectors use shear bolt technology for easy installation without special tools. They are watertight and certified to IEC61238-1 class A.

Heat-Shrink Tubing and Cable Glands
Heat-Shrink Tubing (NLHS): Flame retardant and flexible, suitable for various applications.
Heat-Shrink Tubing with Adhesive (NLHSA): Provides high mechanical strength and electrical insulation.
Polyamide Cable Glands: Offer antivibration protection and UV resistance.

Product Specifications
Kanalflex Trunking: Flexible wiring duct for quick installation.
Transparent Protection Window Hood: Provides protection for switch boxes.
F5 Filter Mats: Ensure reliable air filtration.
NMC Waterproof Metal Cover: Offers robust protection for outdoor electrical cabinets.

Catalog excerpts

Nordel manufacturing company Nordel is is aa manufacturing company established established in in 2019 2019 and and headquartered headquartered in in Lithuania. Lithuania. The The company company specializes specializes in in the the design design and and production production of of electrical electrical and and automation automation components, catering components, catering primarily primarily to to electrical electrical panel panel builders builders and and industrial industrial automation automation integrators integrators across the Europe and beyond. Nordel develops a wide range of products,...

Open the catalog to page 3

UNIVERSAL CONNECTING TERMINALS NLTwww.nordel.euNORDEL universal connecting terminals NLT are suitable for use with copper and aluminum conductors with cross- sections from 1.5 mm2 up to 240 mm2.IP protection class for NLT terminals is IP20. tightening torque labels on the connector cover places for component markers class A short circuit tested antioxidation grease on bolts NORDEL’s universal connecting terminals NLT are certified according to:EN 60947-7-1:2009 and EN 61238-1:2003 CLASS AMaterial classification according to UL 94 V-0 standard (vertical burning test) Criteria Conditions 04 / UNIVERSAL...

Open the catalog to page 4

UNIVERSAL CONNECTING TERMINALS NLT1 POLE (2 HOLES)www.nordel.eu NLT 1,5-16mm2

Open the catalog to page 5

UNIVERSAL CONNECTING TERMINALS NLT1 POLE (2 HOLES)www.nordel.eu NLT 6-95mm2

Open the catalog to page 6

nn UNIVERSAL CONNECTING TERMINALS NLT / 07

Open the catalog to page 7

UNIVERSAL CONNECTING TERMINALS NLT2 POLE (4 HOLES) www.nordel.eu DIMENSIONS 08 / UNIVERSAL CONNECTING TERMINALS NLT

Open the catalog to page 8

UNIVERSAL CONNECTING TERMINALS NLT3 POLE (6 HOLES) www.nordel.eu Currents achievable by connecting multiple input cables. Currents achievable by connecting multiple input cables. UNIVERSAL CONNECTING TERMINALS NLT / 09 Currents achievable by connecting multiple input cables. Currents achievable by connecting multiple input cables.

Open the catalog to page 9

UNIVERSAL CONNECTING TERMINALS NLT3 POLE (6 HOLES) / 5 POLE (10 HOLES)www.nordel.euNLT 3x 2,5-50mm2 C)C) o 10 / UNIVERSAL CONNECTING TERMINALS NLTNLT 5x 2,5-35mm2 Color

Open the catalog to page 10

NOTES NOTES www.nordel.eu www.nordel.eu NOTES NOTES

Open the catalog to page 11

DISTRIBUTION DISTRIBUTION BLOCKS BLOCKS NLDB NLDB UP UP TO TO 500 500AA www.nordel.eu www.nordel.eu NORDEL distribution blocks NLDB designed to be mounted on DIN rails or solid surfaces and distribute larger to smaller cross-section conductors from 1,5 mm* to 185 mm*. They offer a maximum operating temperature of 90 *C, and provide IP20 protection. Certified according to standards: EN 61238-1 and EN 60947-7-1 CLASS A cross-sections indicated on the cover color-code marking available in 5 colors (comes with each unit) safe UL94 V-0 plastic material both box and cover protruding serrations inside...

Open the catalog to page 12

DISTRIBUTION BLOCKS NLDB Color indicators included

Open the catalog to page 13

DISTRIBUTION BLOCKS NLDB Color indicators included 14 / DISTRIBUTION BLOCKS NLDB

Open the catalog to page 14

NOTES NOTES www.nordel.eu www.nordel.eu NOTES NOTES

Open the catalog to page 15

NLBC NLBC BRANCHING BRANCHING CONNECTORS CONNECTORS UP UP TO TO 630 630AA www.nordel.eu www.nordel.eu Certified according to standards: EN 61238-1 and EN 60947-7-1 color-code marking available in 5 colors (comes with each unit) cross-sections indicated on the cover safe UL94 V-0 plastic material tin-plated tact In-plated contaci easy installation with tin-plated contact conductor input collars easy installation on DIN-rails or with screws solid one-piece brass inner contact block, no additional connections NLBC NLBC BRANCHING BRANCHING CONNECTORS CONNECTORS

Open the catalog to page 16

NLBC BRANCHING CONNECTORS Color marke Color marke Color marke NLBC BRANCHING CONNECTORS / 17

Open the catalog to page 17

NLBC BRANCHING CONNECTORS Color marke 18 / NLBC BRANCHING CONNECTORS

Open the catalog to page 18

NLBC BRANCHING CONNECTORS Color marks Color marke Color marke NLBC BRANCHING CONNECTORS / 19

Open the catalog to page 19

NLBC BRANCHING CONNECTORS Color marks Color marke Color marke 20 / NLBC BRANCHING CONNECTORS

Open the catalog to page 20

NLBC BRANCHING CONNECTORS Color marks Color marke Color marke NLBC BRANCHING CONNECTORS / 21

Open the catalog to page 21

NLBC BRANCHING CONNECTORS Color marks Color marke Color marke 22 / NLBC BRANCHING CONNECTORS

Open the catalog to page 22

NLBC BRANCHING CONNECTORS Color marks Color marke Color marke NLBC BRANCHING CONNECTORS / 23

Open the catalog to page 23

NLBC BRANCHING CONNECTORS Color marks Color marke 24 / NLBC BRANCHING CONNECTORS

Open the catalog to page 24

NOTES NOTES www.nordel.eu www.nordel.eu NOTES NOTES

Open the catalog to page 25

DISTRIBUTION DISTRIBUTION BLOCKS BLOCKS NORDBLOCK NORDBLOCK UP A / 50 mm UP TO TO 160 160A/50 mm? 2 www.nordel.eu www.nordel.eu NORDEL distribution blocks of series NORDblock ensure safe and efficient electrical connections and convenient installation on DIN rails or panels. NORDblock's are available in two-pole (up to 35 mm? and 125A) and four-pole (up to 50 mm? and 160A) versions. transparent cover for quick-view inspection between phases cross-sections indicated on the cover easy disassembly I reassembly construction easy instalation on DIN-rails or with screws safe UL94 V-0 class materials...

Open the catalog to page 26

DISTRIBUTION BLOCKS NORDBLOCKTWO-POLE DISTRIBUTION BLOCKS NORDBLOCKwww.nordel.eu DIMENSIONS

Open the catalog to page 27

DISTRIBUTION BLOCKS NORDBLOCKFOUR-POLE DISTRIBUTION BLOCKS www.nordel.eu 28 / DISTRIBUTION BLOCKS NORDBLOCK

Open the catalog to page 28

DISTRIBUTION BLOCKS NORDBLOCKFOUR-POLE DISTRIBUTION BLOCKSwww.nordel.eu NORDblock 4P125A-15 Art. No. NLBTB412 Nominal DISTRIBUTION BLOCKS NORDBLOCK / 29 DIMENSIONS

Open the catalog to page 29

LIGHTING LIGHTING POLE POLE BRANCHING BRANCHING CONNECTORS CONNECTORS NLPT NLPT CONNECTOR CONNECTOR KITS KITS NLPT-SET NLPT-SET www.nordel.eu www.nordel.eu Certified according to standards: EN 61238-1 and EN 60947-7-1 1000V AC/DC Bimetal (Al/Cu) Nickel-plated contacting surfaces LIGHTING LIGHTING POLE POLE BRANCHING BRANCHING CONNECTORS CONNECTORS NLPT NL

Open the catalog to page 30

LIGHTING POLE BRANCHING CONNECTORS NLPT hdNCRDEL NORDEL lighting pole branching connectors NLPT are suitable for all types of copper or aluminum conductors with cross-sections up to 50 mm2 (Al) / 35 mm2 (Cu). Multiple copper wires can be placed to the blocks according to the respective terminal type. IP protection class for connectors is IP23. Insulation made of halogen free polyamide (PA). NLPT branching connectors come in 2, 3, 4 and 6 terminal sizes and are equipped with additional connection points for connecting small (1,5-6 mm2) conductors (e.g. LED lights). LIGHTING POLE BRANCHING CONNECTORS...

Open the catalog to page 31

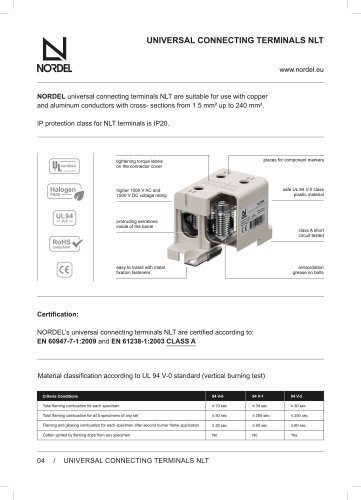

All NORDEL catalogs and technical brochures
