- Inch Twin-Lead Screw Assemblies
Inch Twin-Lead Screw Assemblies
1 / 2 PagesView full catalog
Inch Twin-Lead Screw Assemblies
Product catalog summary

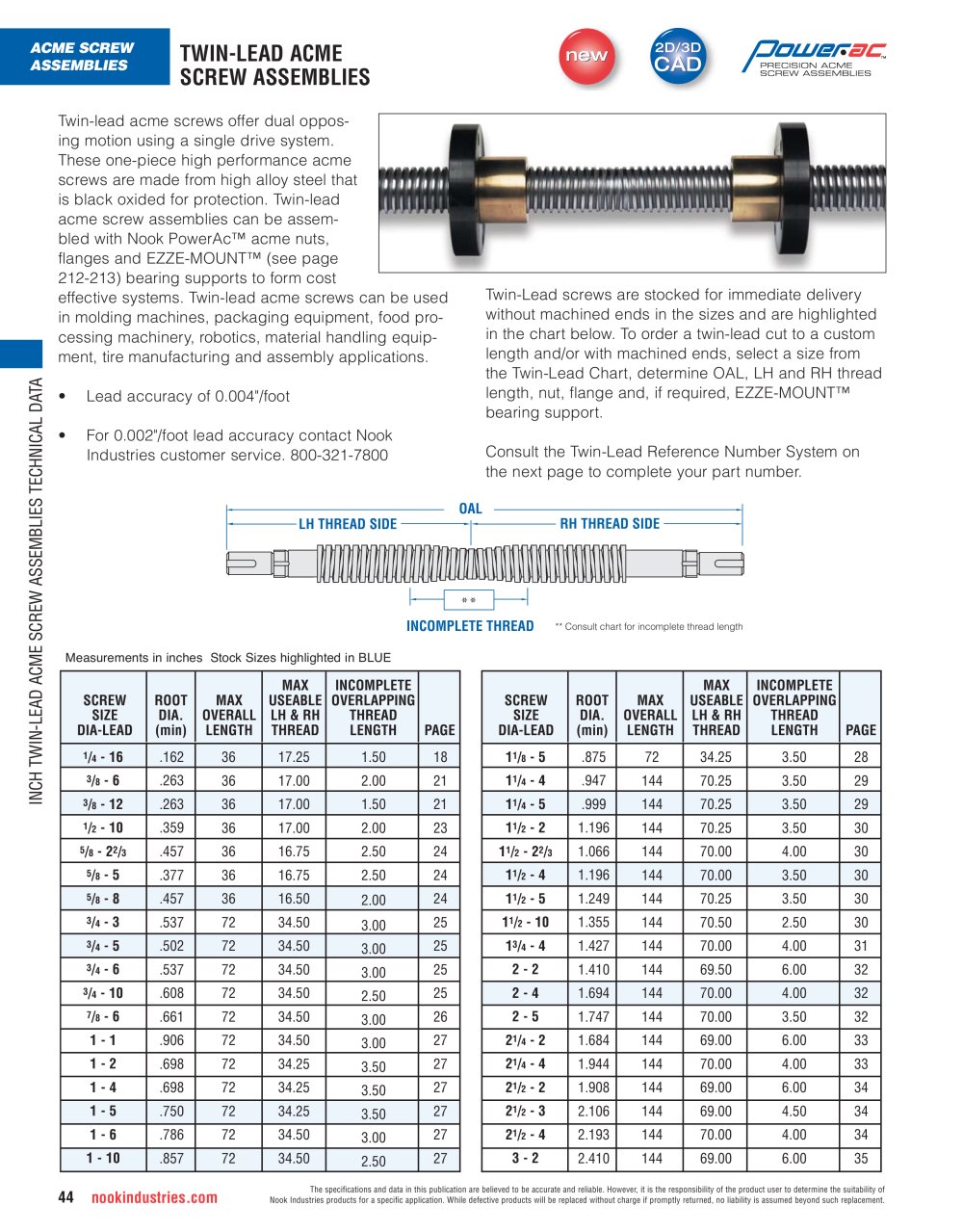

Overview: Twin-lead acme screws are designed to provide dual opposing motion using a single drive system. These screws are crafted from high alloy steel and are black oxided for protection. They are compatible with Nook PowerAc™ acme nuts, flanges, and EZZE-MOUNT™ bearing supports to create cost-effective systems.
Applications: These screws are suitable for use in molding machines, packaging equipment, food processing machinery, robotics, material handling equipment, tire manufacturing, and assembly applications.
Specifications:
- Lead accuracy is 0.004" per foot, with an option for 0.002" per foot upon contacting Nook Industries customer service.
- Available in various sizes, with stock sizes highlighted in the accompanying chart.
- Materials include alloy steel and stainless steel, with different processing methods such as rolled, milled, and ground.
Ordering Information: To order a custom twin-lead screw, select a size from the Twin-Lead Chart, determine the overall length (OAL), left-hand (LH) and right-hand (RH) thread lengths, nut, flange, and if necessary, EZZE-MOUNT™ bearing support. Consult the Twin-Lead Reference Number System for part number completion.
Technical Data: The document provides a detailed chart listing screw sizes, maximum incomplete screw root diameter, maximum usable overall length, and overlapping thread lengths. It also includes a reference number system for ordering, specifying diameter-lead codes, material options, and end configurations.
Important Notes: Users are responsible for determining the suitability of Nook Industries products for specific applications. Defective products will be replaced if returned promptly, but no liability is assumed beyond replacement.
