EGT/EGK MODULAR LINEAr ACTUATOR

Product catalog summary

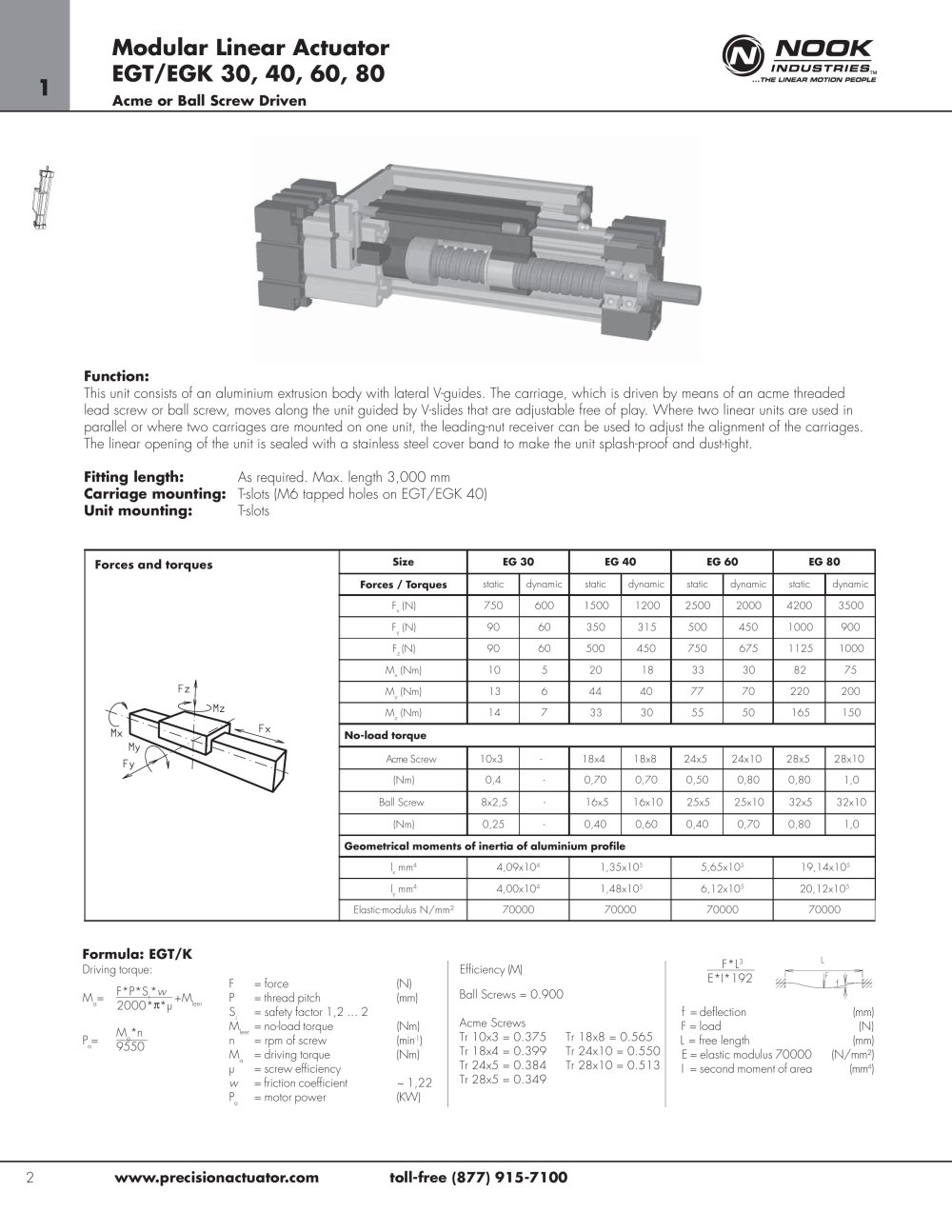

Overview: The document provides technical specifications and configurations for modular linear actuators, specifically the EGT/EGK series (sizes 30, 40, 60, 80). These actuators are driven by either acme or ball screws and are designed for precision movement with adjustable V-guides.

Specifications:

Body and Carriage: Made from aluminum extrusion with lateral V-guides. Carriages are driven by acme threaded lead screws or ball screws.
Sealing: Stainless steel cover band for splash-proof and dust-tight protection.
Fitting Length: Customizable up to 3,000 mm.
Mounting: T-slots for both carriage and unit mounting.

Forces and Torques:

Static and dynamic forces and torques are specified for each size (EG 30, 40, 60, 80), with increasing capacity from size 30 to 80.
Example: EG 30 has a static force of 750 N and a dynamic force of 600 N in the x-direction.

Performance:

No-load Torque: Varies by screw type and size, with ball screws generally requiring less torque than acme screws.
Repeatability: ±0.2 mm for acme screws and ±0.025 mm for ball screws.

Design and Configuration:

Carriage length affects load capacity and basic length.
Options for screw type (acme or ball), screw hand (right or left), and guide body profile (standard or stainless for size 30).
Sample ordering codes provided for configuration.

Dimensions and Weight:

Detailed dimensions and weights are provided for each actuator size, with specific measurements for components like length, width, and mounting holes.
Example: EG 30 has a basic length of 120 mm and a weight of 0.6 kg per 100 mm.
