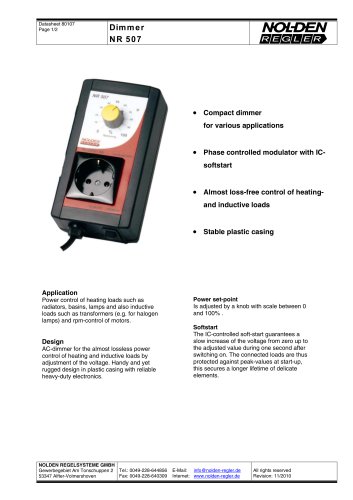

• Compact dimmer • Phase controlled modulator with IC-softstart • Almost loss-free control of heating-and inductive loads • Stable plastic casing Power control of heating loads such as radiators, basins, lamps and also inductive loads such as transformers (e.g. for halogen lamps) and rpm-control of motors. AC-dimmer for the almost lossless power control of heating and inductive loads by adjustment of the voltage. Handy and yet rugged design in plastic casing with reliable heavy-duty electronics. Is adjusted by a knob with scale between 0 and 100% . The IC-controlled soft-start guarantees a slow increase of the voltage from zero up to the adjusted value during one second after switching on. The connected loads are thus protected against peak-values at start-up, this secures a longer lifetime of delicate elements. NOLDEN REGELSYSTEME GMBH All rights reserved Revision: 11/2010 Gewerbegebiet Am Tonschuppen 2 Tel.: 0049-228-644856 E-Mail: [email protected] 53347 Alfter-Volmershoven Fax: 0049-228-640309 Internet: www.nolden-regler.de

Specification Set-point adjustment Knob and scale 10% per step Mains voltage 230V +/-10%, 48...63Hz Main power switch Lit green 2-pol. Heating load connection Schuko-connector Nominal rating/nominal current 1,3kW/6A Fuse 6,3AFF, 5x20mm Net cable 2m, black with Schukoconnector Casing ABS black Power control Heavy duty solid-state relay Phase control modulation Softstart IC-controlled From zero to set-point in ca. 1 sec. after switching on Uitgangsspanning 10... 230V~ Load cable breakage indication LED yellow NOLDEN REGELSYSTEME GMBH Gewerbegebiet Am Tonschuppen 2 53347 Alfter-Volmershoven E-Mail:...
