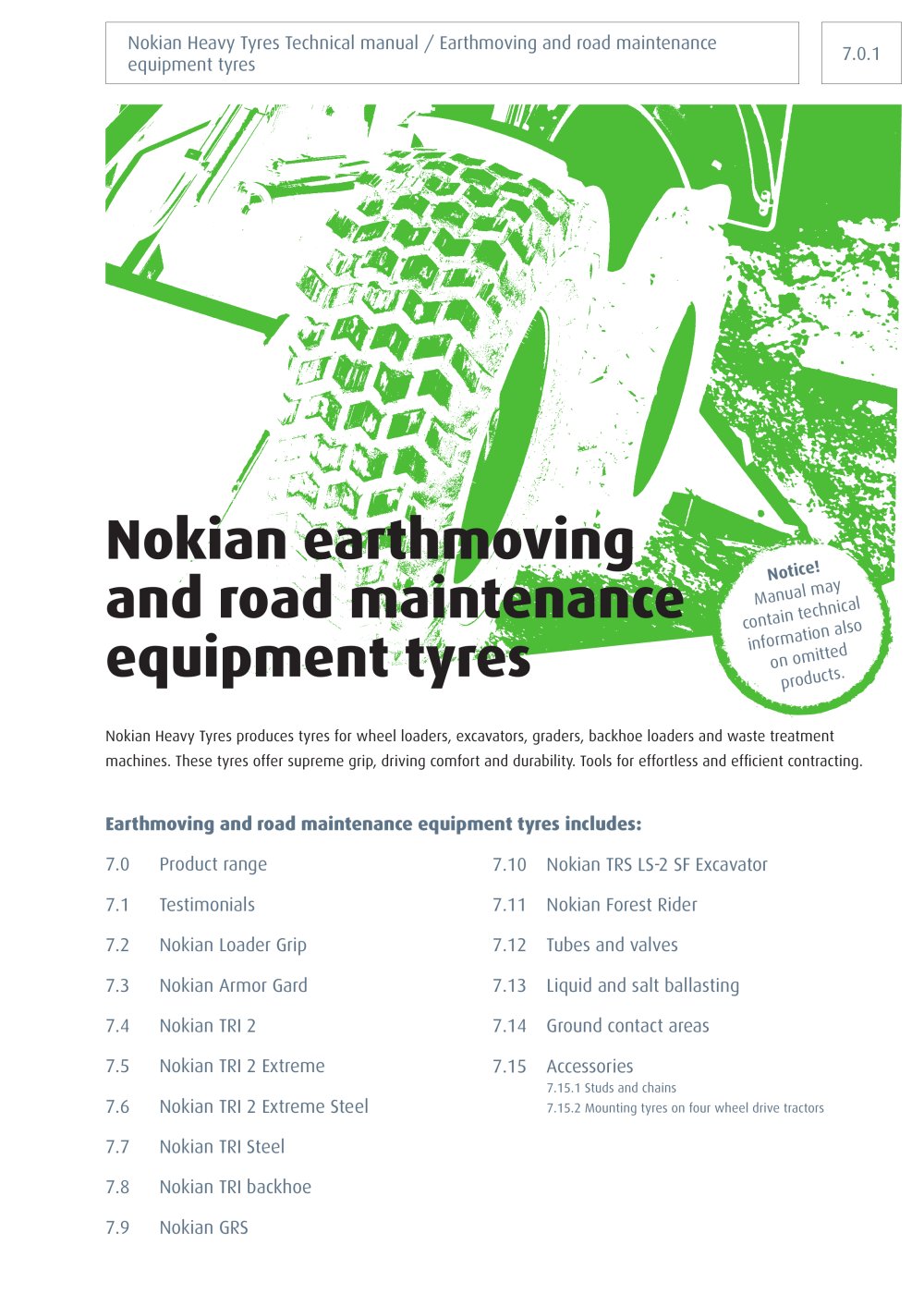

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres Jيm Nokian earthmoving and road maintenance equipment tyres Nokian Heavy Tyres produces tyres for wheel loaders, excavators, graders, backhoe loaders and waste treatment machines. These tyres offer supreme grip, driving comfort and durability. Tools for effortless and efficient contracting. Earthmoving and road maintenance equipment tyres includes: 7.0 Product range 7.10 Nokian TRS LS-2 SF Excavator Testimonials 7.11 Nokian Forest Rider 7.2 Nokian Loader Grip 7.12 Tubes and valves Nokian Armor Gard 7.13 Liquid and salt ballasting Nokian TRI 2 7.14 Ground contact areas 7.5 7.6 Nokian TRI 2 Extreme Nokian TRI 2 Extreme Steel 7.15 Accessories 7.15.1 Studs and chains 7.15.2 Mounting tyres on four wheel drive tractors 7.7 Nokian TRI Steel 7.8 Nokian TRI backhoe 7.9 Nokian GRS

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres Earthmoving and road maintenance equipment tyres

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Testimonials / Fritz Obermaier, AGCO Fendt Supplier of premium tractors apprcites quality and superior performance from tyres Fritz Obermaier, AGCO Fendt, Sales Director Special Applications Germany's leading tractor manufacturer relies on Nokian TRI 2 tyres Fendt, a brand known for superior quality and technological excellence, has been one of the best selling tractor brands in Germany for several years. - As a supplier of premium tractors, we appreciate quality and superior performance in tyres also....

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Testimonials / Profiteam Holzer GmbH Nokian Forest Ride Contractors Thomas and Jakob Holzer, Profiteam Holzer GmbH Taking novelty tyres on a European tour Profiteam Holzer, a contracting company owned by Austrian brothers Thomas and Jakob Holzer, specialises in clearing forest roads, crushing stumps and rocks, and levelling terrain after harvesting. In summer 2009, Profiteam Holzer took its massive Fendt tractors and the new tyres of the Nokian Forest Rider product line on a unique tour of Europe. - We...

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian Loader Grip and Nokian Loader Grip 2 7.2 okian Loader Grip and Nokian Loader Grip 2 ABSOLUTE GRIP AND DURABILITY FOR WHEEL LOADERS AND oTHER woRK MAcHINES > Excellent traction and lateral grip on soft gravel and slippery roads > Strong and sturdy structure - stability even on demanding sites > Abrasion protection against sidewall cuts and chafing Nokian Loader Grip Nokian Loader Grip 2 nokian loader grip and nokian loader GRIP 2 Size LI/SS Pattern TT/ TL Rim Permitted rims Width Diameter Loaded...

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian Armor Gard 7.3 TREAD DEPTH Size PR Pattern Tread depth mm 32 nds in 9.00-20 14 Armor Gard 20 25 10.00-20 16 Armor Gard 20.5 26 11.00-20 16 Armor Gard 21.3 27 12.00-20 20 Armor Gard 25.5 32

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian TRI 2 7.4 tkian RELIABLE PERFORMANCE ALL YEAR ROUND > Efficient working hours for versatile contracting > Unique wear resistance > Good self-cleaning > Comfortable on-road driving > Stable and smooth driving response > High speed category (max 65 km/h / 40 mph)

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian TRI Steel 7.7 tkian TRI Steel PUNCTURE PROTECTION FOR SPECIAL APPLICATIONS > Special tyre for wheel loaders and handlers in recycling applications > Steel puncture protection > Excellent choise for telescopic handlers NOKIAN TRI STEEL Size LI/SS Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2,5% / in±2,5% mm±2,5% / in±2,5% kPa / p.s.i. 40 km/h / 25 mph 50...

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian GRS tkian GRS SUPERB GRIP FOR GRADERS > Good winter driving characteristics > Also for excavator use when winter grip is needed > Excellent drive comfort NOKIAN GRS Size LI/SS Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2,5% / in±2,5% mm±2,5% / in±2,5% kPa / p.s.i. 40 km/h / 25 mph 14.00R24 153 A8 GRS TL 10.00VA SDC 8.00TG SDC, 9.00 / 1.5 DC 362 14.3 392...

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian TRS LS-2 SF Excavator tkian TRS LS-2 SF Excavai NOKIAN TRS LS-2 EXCAVATOR WITH STEEL FORTIFICATION The tyre carcass is protected by steel fortification (SF). Multiple ply cords are laid at alternate angles substantially less than 90° to the centerline of the tread.

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:9.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:18.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:38.00pt "Franklin Gothic Medium", sans-serif; } Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Nokian Forest Rider tkian Forest Rider EFFICIENCY FOR VERSATILE FRESTRY...

Nokian Heavy Tyres Technical manual / Earthmoving and road maintenance equipment tyres / Tubes and valves up Size LI / SS Product code Valve tubeless Tube product code Valve tube-type 15.5R25 152 B / 169 A2 T445463 - - 17.5R25 157 B / 176 A2 T445255 TR 650 T55867 TRJ1175 20.5R25 168 B / 186 A2 T445171 TR 618 A T55831 TRJ1175 23.5R25 176 B / 195 A2 T445223 T55831 TRJ1175 Size PR Product code Valve tubeless Tube product code Valve tube-type 9.00-20 14 T445452 - T52520 TR175 10.00-20 16 T445451 - T52620 TR78 11.00-20 16 T445450 - T52720 TR179 12.00-20 20 T445459 - T52810 V3.02.16 Size LI / SS...
