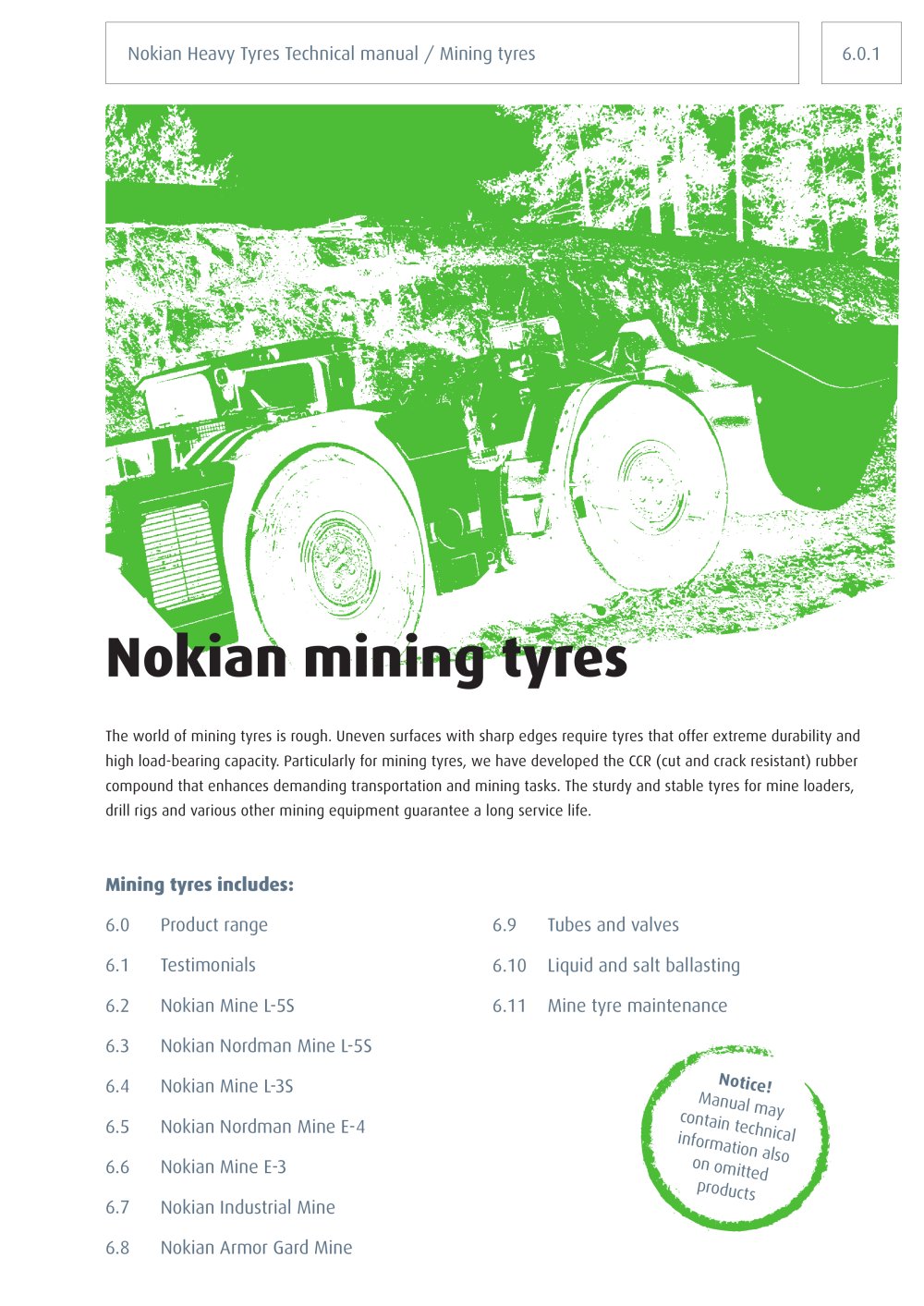

The world of mining tyres is rough. Uneven surfaces with sharp edges require tyres that offer extrme durability and high load-bearing capacity. Particularly for mining tyres, we have developed the CCR (cut and crack resistant) rubber compound that enhances demanding transportation and mining tasks. The sturdy and stable tyres for mine loaders, drill rigs and various other mining equipment guarantee a long service life. Mining tyres includes: 6.0 Product range 6.9 Tubes and valves 6.1 Testimonials 6.10 Liquid and salt ballasting 6.2 Nokian Mine L-5S 6.11 Mine tyre maintenance 6.4 Nokian Nordman Mine L-5S Nokian Mine L-3S Nokian Nordman Mine E-4 Nokian Mine E-3 Nokian Industrial Mine jr Notice» i co^nual 6^ Nokian Armor Gard Mine

Photos: Sandvik

Mining tyres

Nokian Heavy Tyres Technical manual / Mining tyres / Testimonials / Zinc mine in Kazakhstan, Ludmilla Fesyanova, AO Kazzinc in Kazakhstan Ludmilla Fesyanova, Crisis Management Manager and head of the commercial representative office, AO Kazzinc Nokian Mine L-5S improves productivity in AO Kazzinc's mines AO Kazzinc, a metallurgy company striving to be one of the top five zinc producers in the world, has been successfully using Nokian Mine L-5S mining tyres for years. - We have managed to make tyre deliveries almost automatic, which is quite an achievement, given the geographical distance...

6.3 FOR EFFICIENT AND COMFORTABLE MATERIAL LADING > Durable Bias-Ply structure > Cost effective mine tyre - EUR/produced ton > Compliant with the EU's REACH regulations > Nordman Mine by Nokian Heavy Tyres Ltd NOKIAN NORDMAN MINE L-5S Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Maximum inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2.5%/ in±2.5% mm±2.5%/ in±2.5% kPa/p.s.i. 0 km/h 0 mph 5 km/h 3 mph 10 km/h 5 mph 12.00-20 17.5-25 18.00-25 20 24 32 Mine L-5S Mine L-5S Mine L-5S TT TL TL...

6.4 tkian Mine L-3 NOKIAN MINE L-3S Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Max inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2,5%/ in±2,5% mm±2,5%/ in±2,5% kPa/p.s.i. 0 km/h 0 mph 5 km/h 3 mph 10 km/h 5 mph 26.5-25 36 Mine L-3S TL 22.00/3.0 650 25.6 722 28.4 1700 66.9 1785 70.3 772 30.4 824 32.4 625 91 29600 65255 20900 46075 18500 40785 T445522 NEW READ DEPTH Size PR Pattern Tread depth mm 32 nds in 26.5-25 36 Mine L-3S 42 53

6.5 tkian Nordman Mu DURABILITY FOR ARTICULATED DUMP TRUCKS > Durable radial all-steel structure > Excellent choice for rough conditions in quarries > Compliant with the ElTs REACH regulation > Cost effective mine tyre - EUR/h nokian nordman MINE E-4 Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Max inflation pressure Load capacity kg/lb Max inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2.5%/ in±2.5% mm±2.5%/ in±2.5% kPa/p.s.i. 10 km/h 5 mph kPa/p.s.i. 50 km/h 30 mph 26.5R25 Mine E-4 TL...

6.6 tkian Min STURDINESS AND RELIABILITY FOR DRILL RIGS > Sturdy spcial tyre for drill rigs and other mining machines > Durable tread ensures long lifespan > Stable driving response NOKIAN MINE E-3 Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2,5%/ in±2,5% mm±2,5%/ in±2,5% kPa/p.s.i. 0 km/h 0 mph 10 km/h 5 mph 25 km/h 15 mph 14.00-24 28 Mine E-3 TL 10.0VA, 10.00WA 10.0, 10.00W 375 14.8 405 15.9 1368 53.9 1414 55.7 634 25.0 4134 162.8 1000 145...

6.7 ilkian Industrial Mine durability and agility for drill rigs > Light and agile spcial tyre for drill rigs and other mining machines > Durable rubber compound tailored specifically for mining use > Abrasion protection that minimises sidewall damage nokian industrial mine Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Maximum inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2.5%/ in±2.5% mm±2.5%/ in±2.5% kPa/p.s.i. 0 km/h 0 mph 10 km/h 5 mph 25 km/h 15 mph 14.00-24 28 Industrial Mine TT...

6.8 tkian Armor Gard Min LONG SERVICE LIFE FOR MINING MACHINES > Top-class tyre for mining machinery, lift trucks and excavators > Record-breaking mileage > Tread design with excellent traction > Durable construction > Precise and stable driving response > Groove depth indicator NoKIAN ARMoR GARD MINE Size PR Pattern TT/ TL Rim Permitted rims Width Diameter Loaded static radius Rolling circum-ference Maximum inflation pressure Load capacity kg/lb Product code New mm/in Max mm/in New mm/in Max mm/in mm±2,5%/ in±2,5% mm±2,5%/ in±2,5% kPa/p.s.i. 0 km/h 0 mph 10 km/h 5 mph 25 km/h 15 mph...

Nokian Heavy Tyres Technical manual / Mining tyres / Nokian Armor Gard Mine / Groove depth 6.8 GROOVE DEPTH INDICATOR NOKIAN ARMOR GARD MINE Regular tyre maintenance is made easier by a groove depth indicator. This indicator helps you monitor tyre wear.

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Tahoma", sans-serif; } .font1 { font:8.00pt "Tahoma", sans-serif; } .font2 { font:10.00pt "Tahoma", sans-serif; } .font3 { font:12.00pt "Tahoma", sans-serif; } Size PR Product code Valve tubeless Tube product code Valve tube-type Flap Flap product code 12.00-20 20 T487630 - T52810 V3.02.16 195-20 T229530 17.5-25 20 T445326 TR650 T55867 TRJ1175 - - 18.00-25 28 T445325 TR650 T55831 TRJ1175 - - 26.5-25 36 T445324 TR650 - - - - Size PR Product code Valve tubeless Tube product code Valve tube-type Flap Flap...
