NHT Technical Manual 04 Agricultural
59Pages

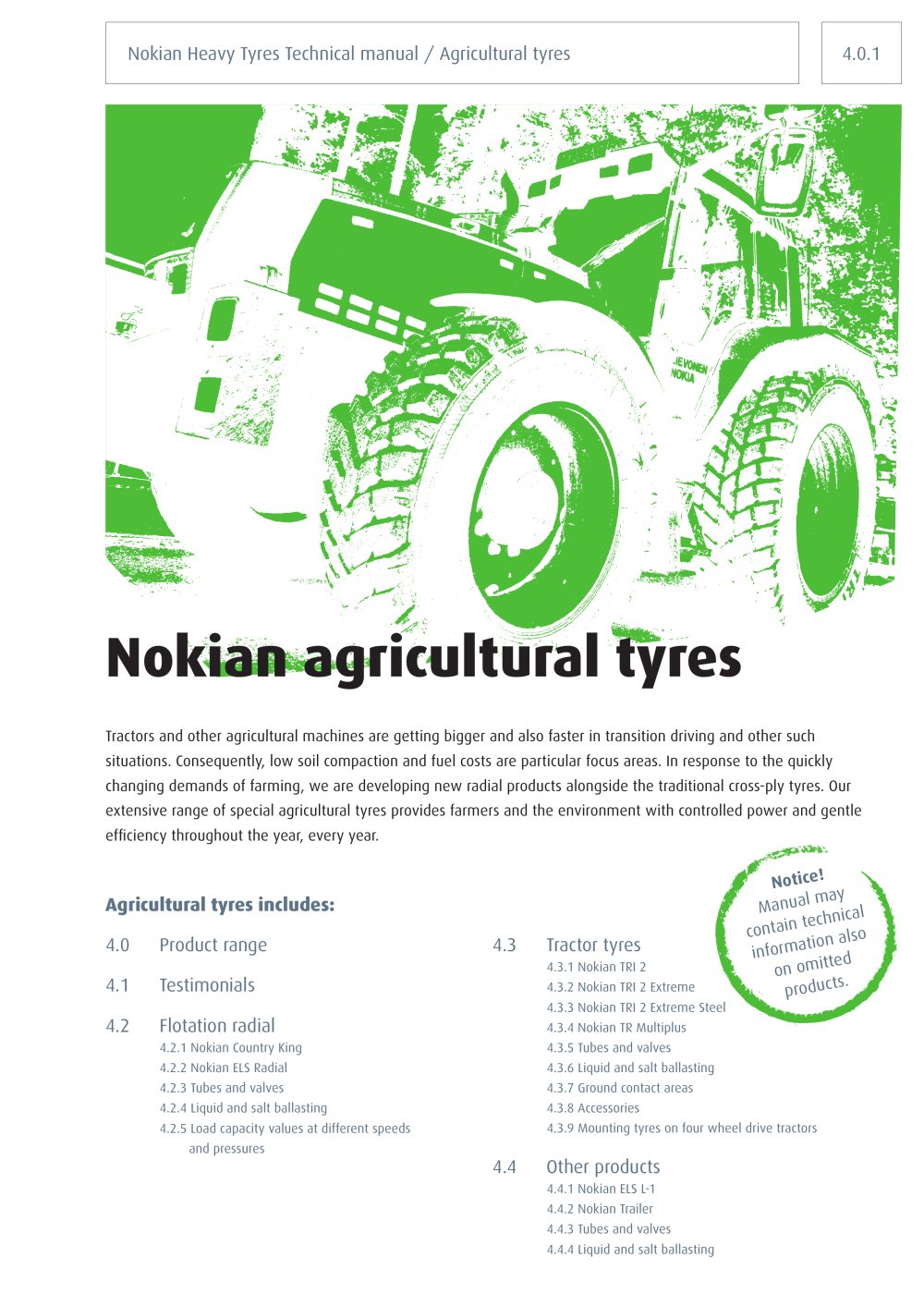

Tractors and other agricultural machines are getting bigger and also faster in transition driving and other such situations. Consequently, low soil compaction and fuel costs are particular focus areas. In response to the quickly changing demands of farming, we are developing new radial products alongside the traditional cross-ply tyres. Our extensive range of special agricultural tyres provides farmers and the environment with controlled power and gentle efficiency throughout the year, every year. Agricultural tyres includes: 4.0 Product range 4.1 Testimonials 4.2 Flotation radial 4.2.1 Nokian Country King 4.2.2 Nokian ELS Radial 4.2.3 Tubes and valves 4.2.4 Liquid and salt ballasting 4.2.5 Load capacity values at different speeds and pressures 4.3 Tractor tyres 4.3.1 Nokian TRI 2 4.3.2 Nokian TRI 2 Extreme 4.3.3 Nokian TRI 2 Extreme Steel 4.3.4 Nokian TR Multiplus 4.3.5 Tubes and valves 4.3.6 Liquid and salt ballasting 4.3.7 Ground contact areas 4.3.8 Accessories 4.3.9 Mounting tyres on four wheel drive tractors Other products 4.4.1 Nokian ELS L-1 4.4.2 Nokian Trailer 4.4.3 Tubes and valves 4.4.4 Liquid and salt ballasting 4.4

incultural tyre:

Nokian Heavy Tyres Technical manual / Agricultural tyres / Testimonials / Henrik Simonsen, Denmark ia er leaves you in trouble Henrik Simonsen, farmer and contractor Nokian Heavy Tyres' products and services are highly trusted in Denmark Henrik Simonsen is a contractor and a farmer with 3,500 hectares of field in Denmark's East Jutland. Simonsen owns approximately 700 hectares, 1,000 hectares is rented, and the rest is held on a contracting basis. -During the season peak, we work around the clock. It is essential that we can rely on the tyre manufacturer's products and services. l'm happy...

Nokian Heavy Tyres Technical manual / Agricultural tyres / Testimonials / J0rgen Stougaard, Denmark Nokian tyr are put totest indegaard farm J0rgen Stougaard, farmer and farm owner Finnish tyres are being tested in Danish countryside Located on the Danish island Fyn, the Lindegaard farm is a big one on the Danish scale. Tending the 930-hectare farm are Hans and Kirsten Stougaard and their sons Jorgen and Ulrik. Besides growing crops, the farm also raises some 34,000 pigs annually. - The agricultural machinery is in heavy use at the farm, which is why we need a reliable tyre supplier. We...

Flotation radia Notation radial means efficiency with respect for the environment. A low profile radial flotation tyre has wide contact area, which creates less surface pressure on soil compared with diagonal tyres. Right tyre pressure, radial structure and optimal tread pattern keep the fields productive by giving less soil compaction. Low rolling resistance in flotation radials saves up to 20 % in fuel compared with diagonal tyres.

Nokian Heavy Tyres Technical manual / Agricultural tyres / Flotation radial / Nokian Country King TREAD DEPTH Size LI / SS / PR Pattern Total tread depth Tread depth measured on top of tie-bar mm 32 nds in mm 32 nds in 560/45R22.5 152 D Country King 16 20 13 16 500/60R22.5 155 D Country King 17 21 14 18 600/50R22.5 159 D Country King 18 23 15 19 650/50R22.5 163 D Country King 18 23 15 19 560/60R22.5 161 D Country King 18 23 15 19 580/65R22.5 166 D Country King 19 24 16 20 620/60R26.5 169 D Country King 20 25 17 21 710/50R26.5 170 D Country King 20 25 17 21 650/65R26.5 174 D Country King 20...

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Tahoma", sans-serif; } .font1 { font:8.00pt "Tahoma", sans-serif; } .font2 { font:10.00pt "Tahoma", sans-serif; } Nokian Heavy Tyres Technical manual / Agricultural tyres / Flotation radial / Tubes and valves CING Size LI / SS Product code Valve tubeless Tube product code Valve tube-type 560/45R22.5 152 D T445402 TR 618 A T56435 TR 218 A 500/60R22.5 155 D T445453 TR 618 A T55096 TR 218 A 600/50R22.5 159 D T445441 TR 618 A T55089 TR 218 A 650/50R22.5 163 D T445407 TR 618 A T55089 TR 218 A 560/60R22.5 161 D...

Nokian Heavy Tyres Technical manual / Agricultural tyres / Flotation radial / Liquid and salt ballasting Liquia ana sali Dallasiing LIQUID AND SALT BALLASTING > Liquid ballasting is used to increase machine stability. > It is recommended to use professional tyre outlets to carry out the filling procedure. > Special equipment and water permeable valves are required. > In liquid and salt ballasting, use tubes to prevent rims from rusting. Note! If a filler other than liquid is used (i.e. polyurethane), tyre warranty does not apply. Waier Dallasiing 75 % of tyre volume is filled. Amounts...

yres Tractor tyres A modem tractor must carry heavy loads easily and it must suit an impressive variety of tasks. In addition to driving comfort, the tyre must endure high speeds and offer efficient grip on all surfaces. Nokian TRI2 is a tractor tyre to meet all these demands and much more.

Nokian Heavy Tyres Technical manual / Agricultural tyres / Tractor tyres / Nokian TRI 2 >kian RELIABLE PERFORMANCE ALL YEAR ROUND A reliable partner for modern-day farmers and equipment contractors. Excellent grip, high load-bearing capacity and a pleasant driving response. The low rolling resistance efficiently reduces fuel consumption. > Versatile and environmentally friendly special tyre designed for the needs of modern farming and machine contracting > Excellent grip, high load-bearing capacity and a pleasant driving response > Sturdy and fast also on the road (max. 65 km/h / 40 mph)...

Nokian Heavy Tyres Technical manual / Agricultural tyres / Tractor tyres / Liquid and salt ballasting Liquia ana sali ballasting LIQUID AND SALT BALLASTING > Liquid ballasting is used to increase machine stability. > It is recommended to use professional tyre outlets to carry out the filling procedure. > Special equipment and water permeable valves are required. > In liquid and salt ballasting, use tubes to prevent rims from rusting. Note! If a filler other than liquid is used (i.e. polyurethane), tyre warranty does not apply. Waier ballasting 75 % of tyre volume is filled. Amounts listed...
