Wireless Transmitters Product Summary 2009

Catalog excerpts

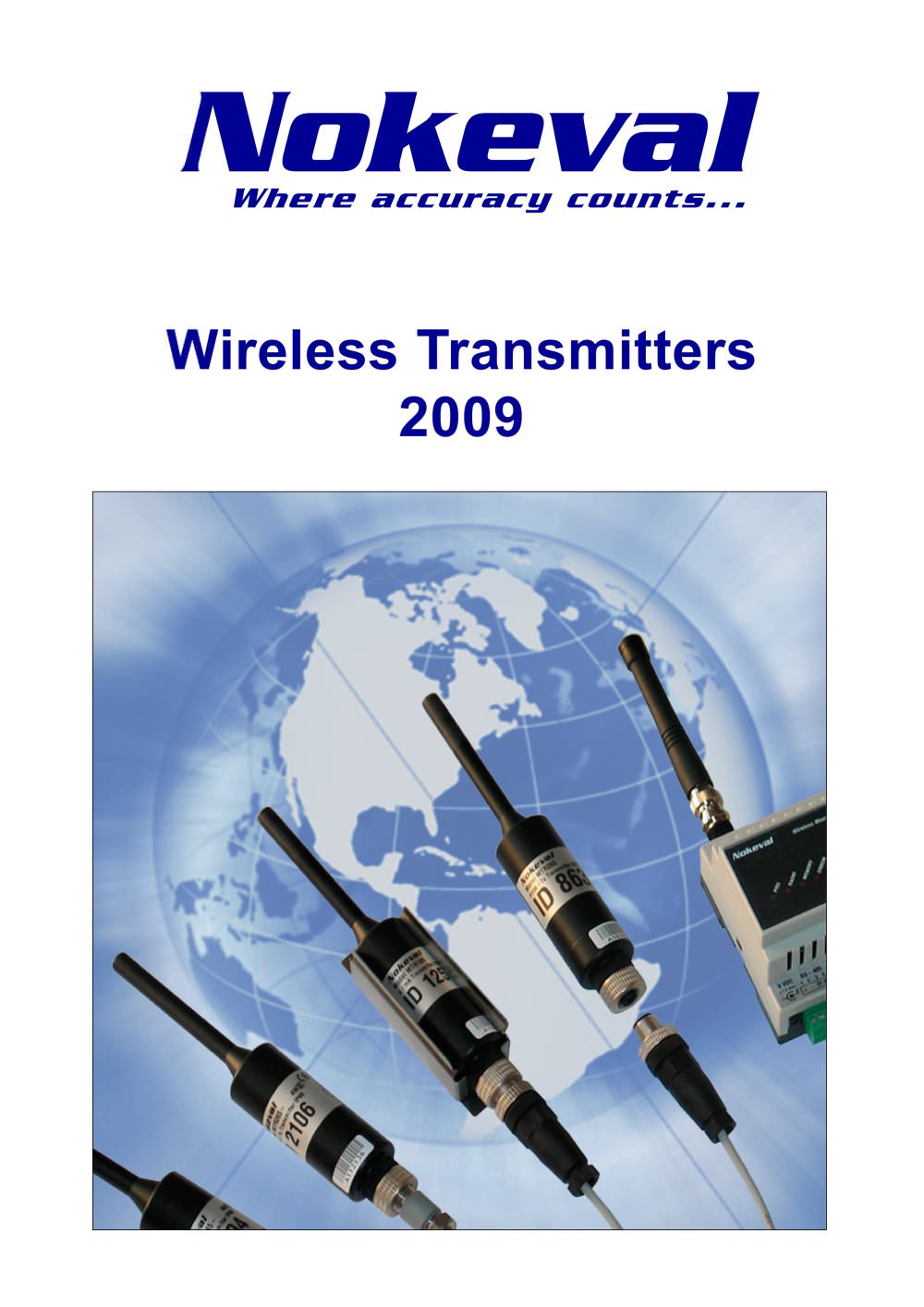

Where accuracy counts... Wireless Transmitters2009 >

 Open the catalog to page 1

Modules Wireless transmitters and receivers XXX Analog/Digital/Bar/Trend graph displays XXX Data recording to files, reviewing of records XXX Basic user interface components XXX Surveillance reporting XXX SMS alarm service XXX Remote access client XXX Wired inputs (SCL, Modbus RTU/TCP) XX > Multi-trend displays X Extended user interface components X Mathematical and statistical analysis modules X > Analog and digital outputs, external displays X Vaisala weather station support X > Remote access server, remote interface server X > Wired channelsWirelessNetwork PromoLog-Wireless - X*...

 Open the catalog to page 9

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmitters Software Applications Temperature sensors > Alarms change the background color of a channel display DPR990 Surveillance Unit comes with Web Server software package as standard. This software package enables remote monitoring of measurement data over network with a web browser. Just type the IP address of the Surveillance Unit into the address fi eld of your web browser to access the unit's web interface. A user name and password are required to access the data for security reasons. The...

 Open the catalog to page 10

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmitters Software Applications Temperature sensors > Channel specifi c trend graphs are available over the DPR990 Web Interface. Graph beginning and ending times can be selected freely. If alarm levels have been set, they are shown with red and blue lines over the trend graph. Alarm events are provided as a separate detailed list. This alarm list is interactive to quickly move the trend graph to the time when the alarm event occurred with a mouse-click. 11 size="-1">

 Open the catalog to page 11

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmitters Software Applications Temperature sensors > DPR990 Web Interface also provides complete up-to-date alarm summaries. Alarm summaries and trend graphs can be printed easily with a mouse-click. 12 size="-1">

 Open the catalog to page 12

TransmittersTransmitters RS485-USB Toistin *FTR960 Optional GSM modem, alarms > Repeater is installed closer to the transmitters to better collect the attenuated signals from them and to retransmit the data to the receiver. Repeaters do not need any confi guration, just a power supply.Optional repeaterFTR960 >

 Open the catalog to page 13

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmittersSoftware Applications Temperature sensors > Web Browser > Toistin *FTR960 Toistin *FTR960 OV-yksikkDPR990 remote access to measurement data PromoLogWorkstation > Surveillance Unit DPR990 Receiver List of needed equipment:MTR260C Transmitters for exampleFTR960 RepeatersDPR990 Surveillane Unit > In large buildings FTR960 repeaters (1...3) are placed according to the above picture. Re- peaters are installed closer to the transmitters to better collect the attenuated signals from them and to...

 Open the catalog to page 14

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 Recommended repeater layout in large buildings (eg. 120 x 100 m) > GSM modem DCS771USB Toistin *FTR960 Toistin *FTR960 OV-yksikkDPR990 PromoLogServer ReceiverFTR970 > In large buildings FTR960 repeaters (1...3) are placed according to the above picture. Re-peaters are installed closer to the transmitters to better collect the attenuated signals from them and to retransmit the data to the receiver. Repeaters do not need any confi guration, just a power supply. Repeater 3FTR960Repeater 2FTR960 Repeater 1FTR960 >

 Open the catalog to page 15

GSM modem DCS770USB PromoLogServer Toistin *FTR960 Toistin *FTR960 OV-yksikkDPR990 > In large installations, any part of the measurements can also be done with wired transmit- ters together with wireless ones. Repeaters are installed closer to the wireless transmitters to better collect the attenuated signals from them and to retransmit the data to the receiver. Repeaters do not need any confi guration, just a power supply. Repeater 2 FTR960Repeater 1FTR960 16 channel transmitter RMD680 Mixture of wireless and wired transmitters in a large installation site. >

 Open the catalog to page 16

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmittersSoftware Applications Temperature sensors > Recommended repeater layout in large buildings (eg. 120 x 100 m) Receiver PromoLog Workstation > DPR990 Unit Toistin *FTR960 Toistin *FTR960 OV-yksikkDPR990 DCS770USB-RS485 Web Browser remote access to measurement data > In large installations, any part of the measurements can also be done with wired trans-mitters in combination with wireless ones. Repeaters are installed closer to the wireless transmitters to better collect the attenuated signals...

 Open the catalog to page 17

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmittersSoftware Applications Temperature sensors > ReceiverFTR970 Serial bus RS485 Wireless transmitters Max. length1000 m PromoLog Workstation > Toistin *FTR960 Toistin *FTR960 OV-yksikkDPR990 DCS770 USB-RS485 Web Browser remote access to measurement data > DPR Unit (or a PC) If cabling for RS485 serial bus is available the receivers can be directly connected to it. This type of wireless system can cover very large areas even in very diffi cult conditions. The same serial bus can also be used to...

 Open the catalog to page 18

www.nokeval.com, sales@nokeval.com, tel. +358-3-3424 800, fax. +358-3-3422 066 ReceiversTransmittersSoftware Applications Temperature sensors > RTR970-PRO receiver (or FTR970-PRO) with 7470 output unit > Four outputs: 0-20 mA, 4-20 mA or 0-10VRS4858..28 VDCPower supply24 VDCPower supply Distance between the RTR970-PRO or FTR970-PRO receiver and the7470 output unit can be up to 1 km. Distance between transmitters and the receiver can be up to 50..100 m in typical factory buildings. MTR165 transmitter is a battery powered device. Battery life depends on the transmitting interval, which should...

 Open the catalog to page 21
