Panel meters 2012

Product catalog summary

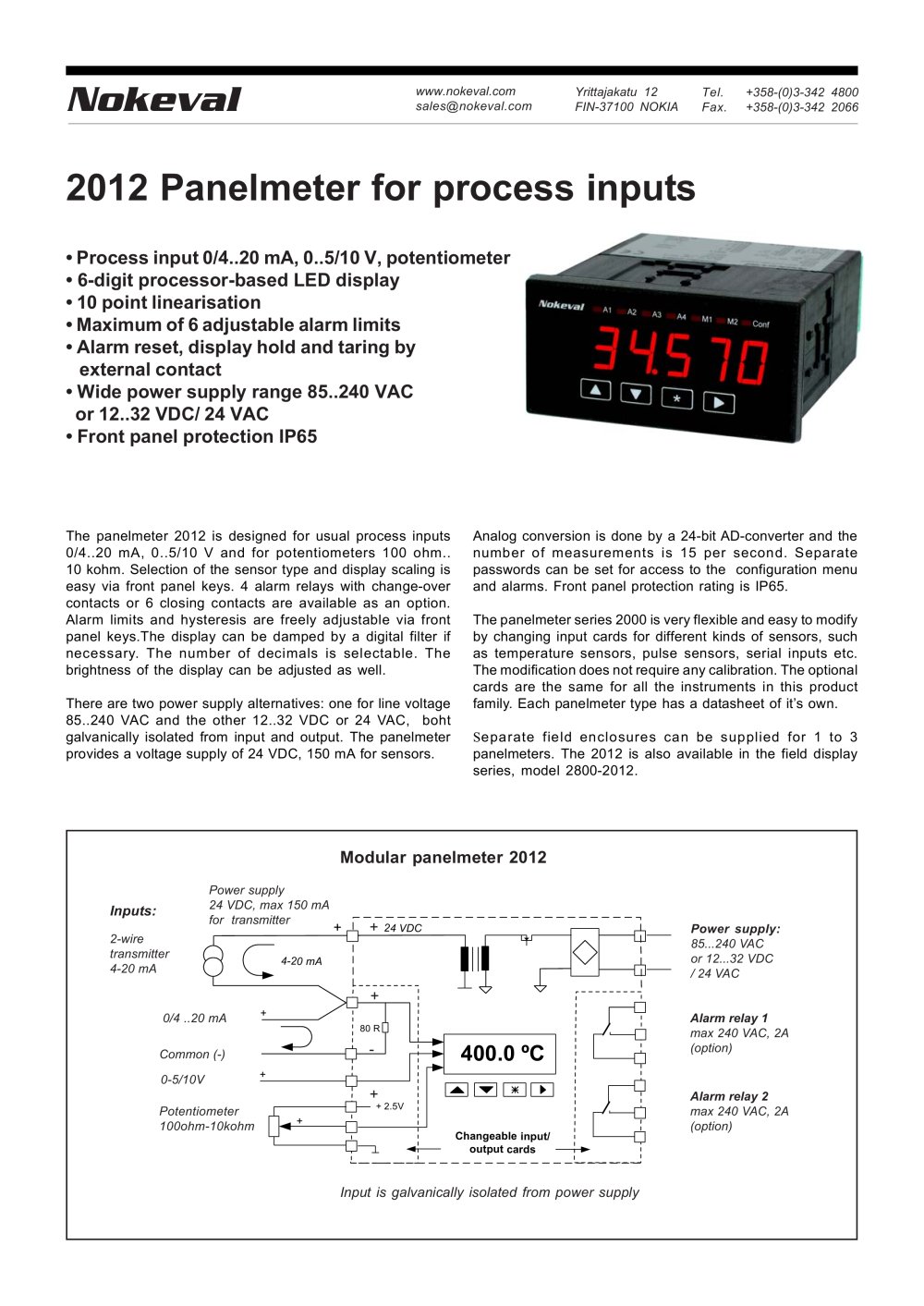

Overview: The 2012 Panelmeter is designed for process inputs such as 0/4..20 mA, 0..5/10 V, and potentiometers ranging from 100 ohms to 10 kohms. It features a 6-digit LED display, 10-point linearization, and up to 6 adjustable alarm limits. The device supports alarm reset, display hold, and taring via external contact, and offers front panel protection rated at IP65.

Specifications: The panelmeter supports a wide power supply range of 85..240 VAC or 12..32 VDC/24 VAC, both galvanically isolated from input and output. It provides a 24 VDC, 150 mA power supply for sensors. The display scaling is freely adjustable between -99999 and 999999, with selectable decimal points and brightness. The input resistance is 80Ω for current and 1.1 MΩ for voltage inputs, with accuracy of ±8µA for current and ±5mV for voltage inputs.

Features: The panelmeter includes a digital filter for display damping, selectable number of decimals, and adjustable display brightness. It supports 4 alarm relays with change-over contacts or 6 closing contacts, with freely adjustable alarm limits and hysteresis. The device also features a 24-bit AD-converter with 15 measurements per second and separate passwords for configuration menu and alarms.

Modularity and Compatibility: The panelmeter is part of the series 2000, which allows for easy modification by changing input cards for different sensors without requiring calibration. Optional cards include analog output, alarm, and serial data cards. The device can be installed in separate field enclosures for 1 to 3 panelmeters and is available in the field display series model 2800-2012.

Technical Details: The panelmeter operates within a temperature range of -10 to +60 °C, with a thermal drift of 0.002 °C/°C. It features removable terminals for wire connections and a plastic case with a maximum temperature of 120°C. The power consumption is 2.5 VA, 70..110 mA (24 VDC), and the device weighs 240 g.

Ordering Information: The panelmeter is available with either a red or green LED display. When ordering, specify the power supply type (85..240 VAC or 12..32 VDC/24 VAC) and the desired LED color (red or green).

Catalog excerpts

Process inputs: 0..20 mA, 4..20 mA, 0..5 V and 0..10VDisplay scalingfreely between -99999...999999Input resistancecurrent input 80 , voltage input 1.1 M Accuracy 8 > A current input, 5mV voltage input Linearity ѱ3 > A current input, ձ2mV voltage input Temperature drift 100 ppm/ѰC Supply for transmitter 24 VDC 20% , max. 150 mA Potentiometer input: 100 -10k Reference voltage2,5 V, max load 25 mA Voltage stability150 ppm/ѰC Alarms (optional): 4 alarms with change-over contacts,6 alarms with closing contacts relays max 240 VAC, 2 A, hysteresis 0..100%; Alarmreset: automatic or manual via front panel...
