Bulletin 2072
1 / 2 PagesView full catalog
Bulletin 2072
Product catalog summary

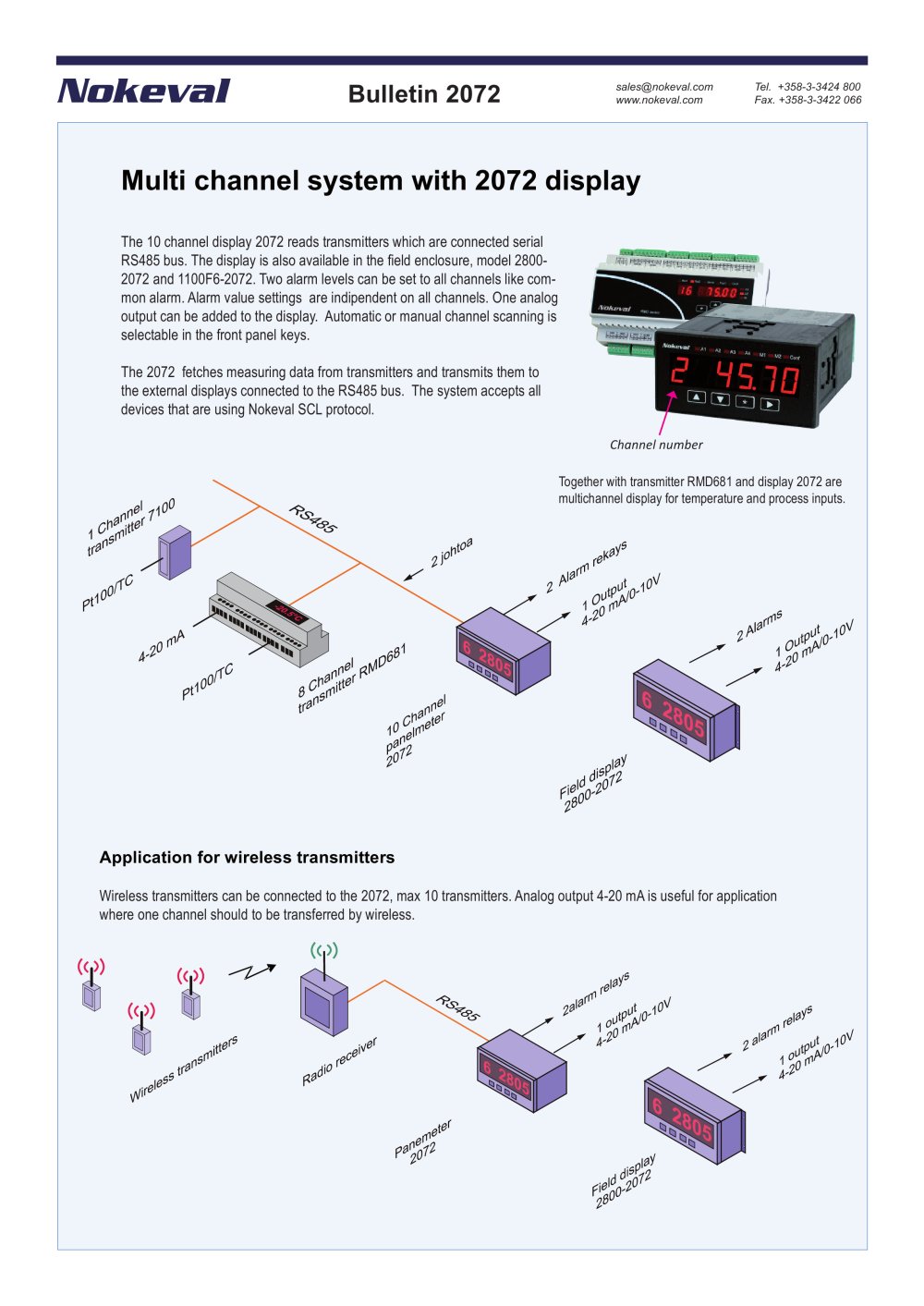

Overview: The Nokeval 2072 is a multi-channel display system designed to read transmitters connected via a serial RS485 bus. It supports up to 10 channels and is compatible with both standard and wireless transmitters.
Specifications: The 2072 display can be housed in field enclosures, models 2800-2072 and 1100F6-2072. It features two independent alarm levels per channel and supports an optional analog output. The system is compatible with devices using the Nokeval SCL protocol.
Functionality: The display can automatically or manually scan channels using front panel keys. It fetches data from transmitters and transmits it to external displays connected to the RS485 bus. Wireless transmitters can also be integrated, with a maximum of 10 transmitters supported.
Applications: The 2072 is suitable for temperature and process input monitoring. It acts as the master device on the RS485 bus, transmitting channel values to external displays, which can be configured to show specific channels or mirror the 2072 display.
External Displays: External displays, such as the 2071 panel or field displays, can be used to show selected channels or replicate the 2072 display.
