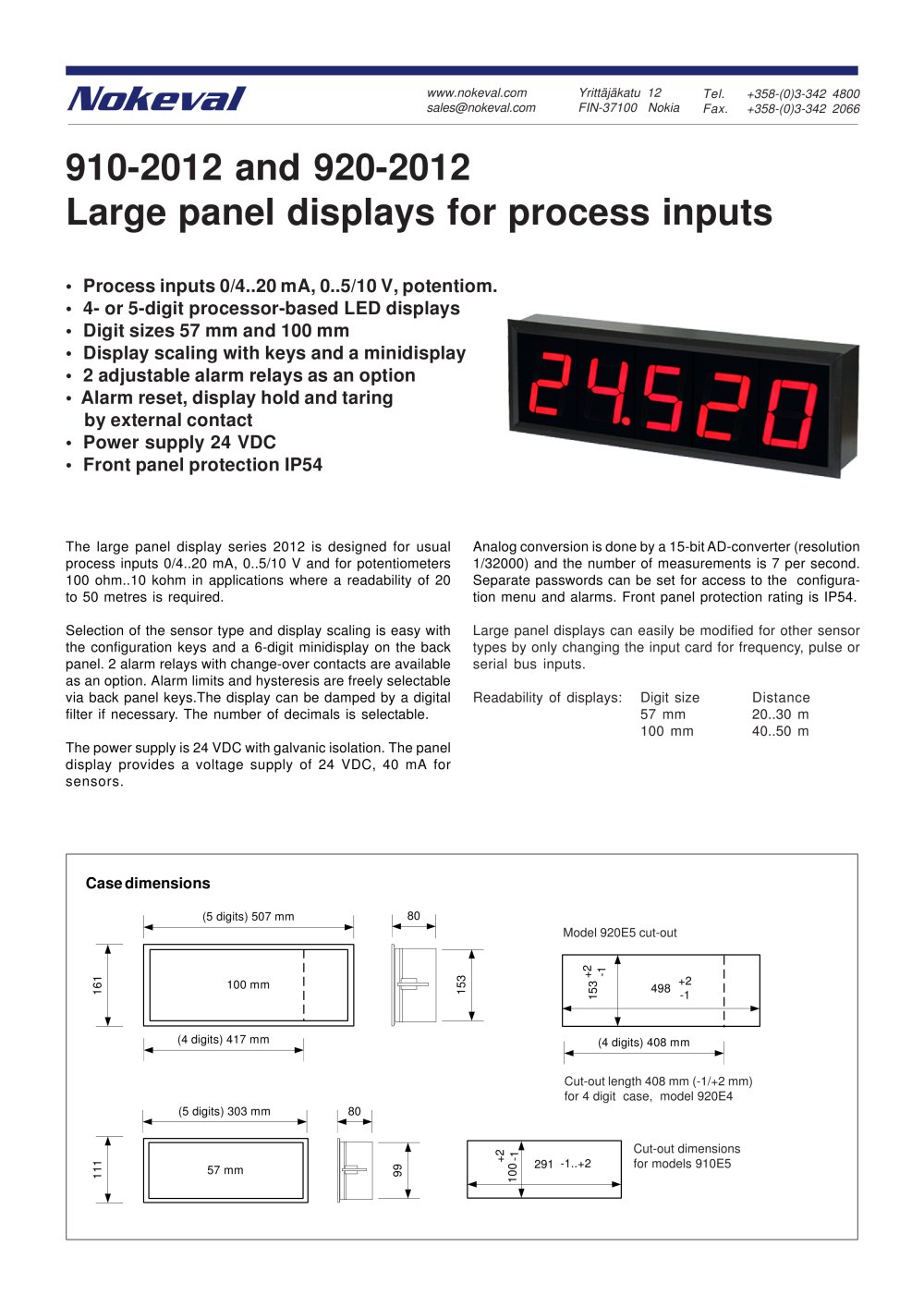

910E5-2012 Process Inputs

Product catalog summary

Overview: The document provides technical specifications and ordering information for large panel displays, models 910-2012 and 920-2012, designed for process inputs. These displays are suitable for applications requiring readability from 20 to 50 meters.

Specifications:

Process Inputs: 0/4..20 mA, 0..5/10 V, and potentiometers (100 ohm to 10 kohm).
Display: 4- or 5-digit LED displays with digit sizes of 57 mm and 100 mm.
Power Supply: 24 VDC with galvanic isolation, providing 24 VDC, 40 mA for sensors.
Accuracy: 0.05% FS with a linearity of 0.01% FS.
Protection: Front panel protection rated at IP54.

Features:

Display scaling and sensor type selection via configuration keys and a 6-digit minidisplay.
Optional 2 adjustable alarm relays with change-over contacts.
Alarm reset, display hold, and taring functions available through external contact.
Digital filter for display damping and selectable number of decimals.
Separate passwords for configuration menu and alarms access.

Technical Details:

AD Conversion: 15-bit converter with a resolution of 1/32000 and 7 measurements per second.
Input Resistance: Current input 50Ω, voltage input >1 MΩ.
Potentiometer Input: Reference voltage 2.5 V, max load 25 mA.
Operating Temperature: -10 to +60 °C.
Case Material: Black anodized aluminum.

Ordering Information:

Model Types: 910E5-2012 (5 digits, 57 mm), 920E4-2012 (4 digits, 100 mm), 920E5-2012 (5 digits, 100 mm).
Optional Cards: Alarm card with 2 relays (REL2).
Connections: Slot C for optional alarm card, Slot B not used.

Dimensions:
