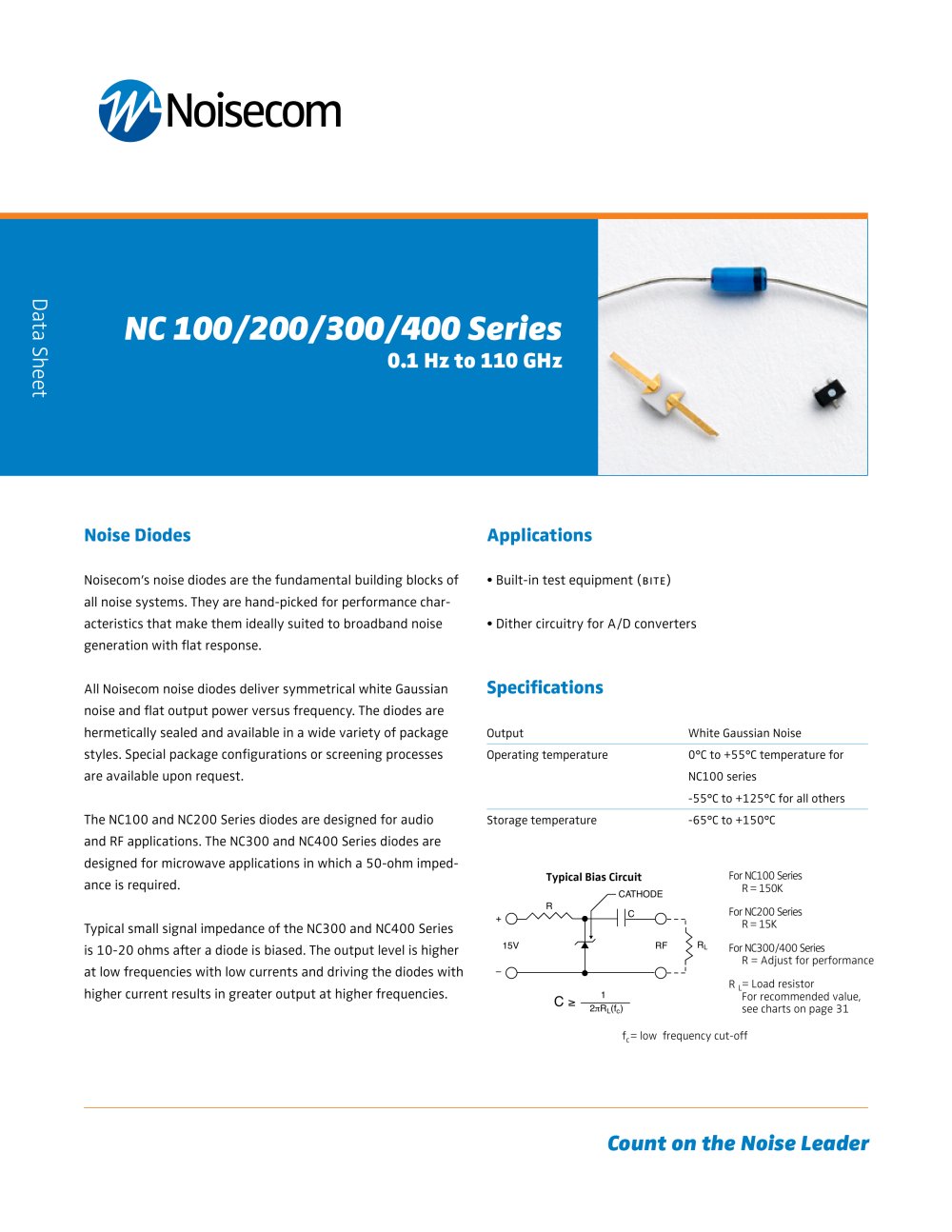

Noise Diodes

Product catalog summary

Overview
Noisecom's noise diodes are essential components for noise systems, providing broadband noise generation with a flat response. These diodes produce symmetrical white Gaussian noise and maintain flat output power across frequencies. They are hermetically sealed and available in various package styles, with custom configurations available upon request.

Product Series

NC100 and NC200 Series: Designed for audio and RF applications.
NC300 and NC400 Series: Suitable for microwave applications requiring a 50-ohm impedance.

Specifications

Output: White Gaussian Noise
Operating Temperature: 0°C to +55°C for NC100 series; -55°C to +125°C for others
Storage Temperature: -65°C to +150°C

Applications
These diodes are used in built-in test equipment and dither circuitry for A/D converters.

Technical Details

Typical small signal impedance for NC300 and NC400 Series is 10-20 ohms after biasing.
Output levels vary with frequency and current: higher output at low frequencies with low currents, and greater output at higher frequencies with higher currents.

Audio & VHF Types
Models NC101 to NC104 and NC201 to NC203 cover frequency ranges from 0.1 Hz to 100 MHz, with varying operating conditions and output levels.

RF & Microwave Types
Models NC302L to NC406 cover frequency ranges from 10 Hz to 110 GHz, with specific operating conditions and output levels detailed for each model.

Contact Information
Wireless Telecom Group Inc. has sales offices in the United States, United Kingdom, France, Germany, Singapore, and China. Contact details are provided for each location.

Note
Specifications, terms, and conditions are subject to change without prior notice.
