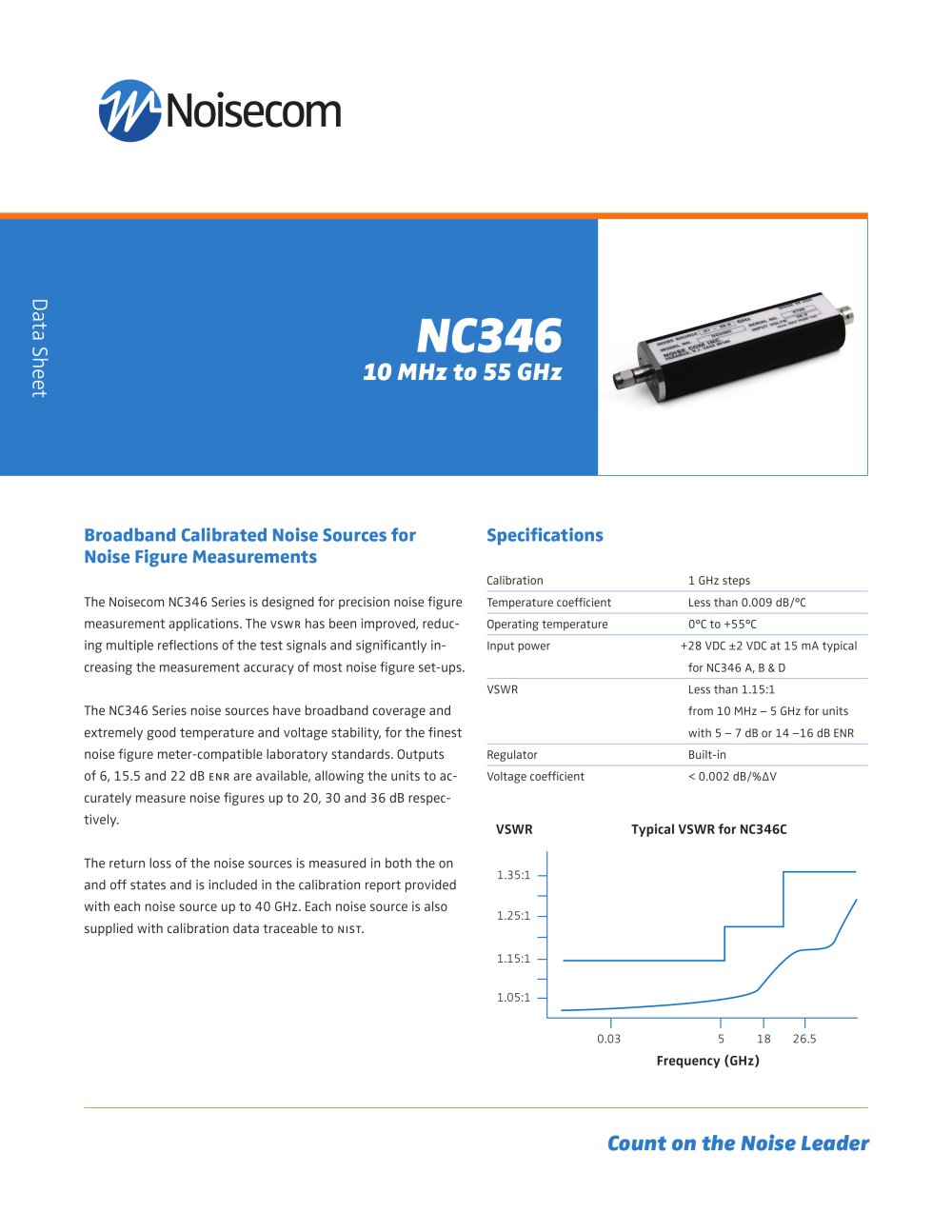

Count on the Noise Leader Broadband Calibrated Noise Sources for Noise Figure Measurements The Noisecom NC346 Series is designed for precision noise figure measurement applications. The vswr has been improved, reducing multiple reflections of the test signals and significantly increasing the measurement accuracy of most noise figure set-ups. The NC346 Series noise sources have broadband coverage and extremely good temperature and voltage stability, for the finest noise figure meter-compatible laboratory standards. Outputs of 6, 15.5 and 22 dB enr are available, allowing the units to accurately measure noise figures up to 20, 30 and 36 dB respectively. The return loss of the noise sources is measured in both the on and off states and is included in the calibration report provided with each noise source up to 40 GHz. Each noise source is also supplied with calibration data traceable to nist. Specifications Calibration 1 GHz steps Temperature coefficient Less than 0.009 dB/°C Operating temperature 0°C to +55°C Input power +28 VDC ±2 VDC at 15 mA typical for NC346 A, B & D VSWR Less than 1.15:1 from 10 MHz – 5 GHz for units with 5 – 7 dB or 14 –16 dB ENR Regulator Built-in Voltage coefficient < 0.002 dB/%ÄV Data Sheet NC346 10 MHz to 55 GHz VSWR Typical VSWR for NC346C 1.35:1 1.25:1 1.15:1 1.05:1 0.03 5 18 26.5 Frequency (GHz)
