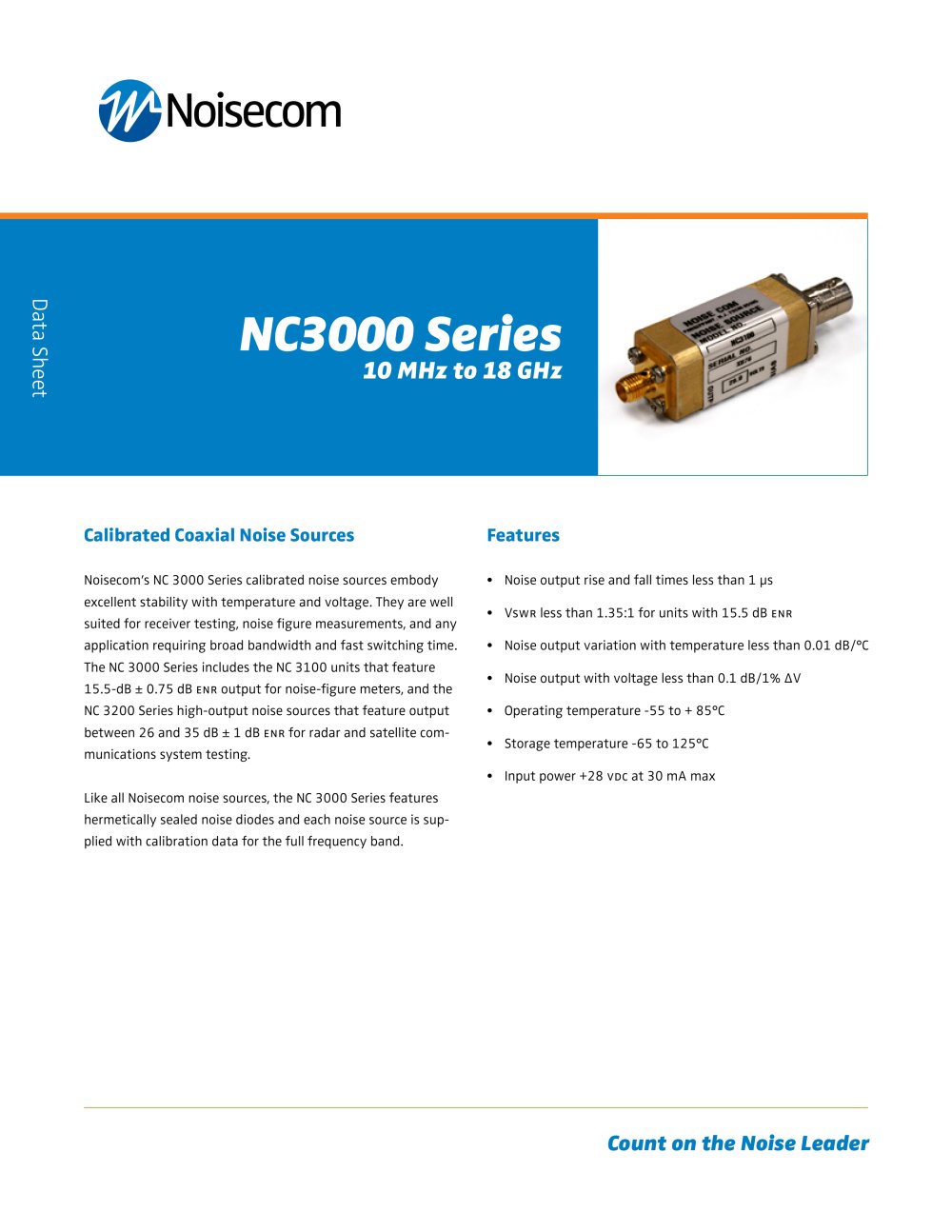

NC3000 Series Calibrated Coaxial Noise Sources

Product catalog summary

Overview: The NC 3000 Series by Noisecom offers calibrated coaxial noise sources known for their stability with temperature and voltage. These are ideal for receiver testing, noise figure measurements, and applications requiring broad bandwidth and fast switching time.

Specifications:

Noise output rise and fall times are less than 1 μs.
VSWR is less than 1.35:1 for units with 15.5 dB ENR.
Noise output variation with temperature is less than 0.01 dB/°C.
Noise output with voltage is less than 0.1 dB/1% ΔV.
Operating temperature ranges from -55 to +85°C.
Storage temperature ranges from -65 to 125°C.
Input power is +28 VDC at 30 mA max.

Product Variants:

NC 3100 Series: Features 15.5-dB ± 0.75 dB ENR output, suitable for noise-figure meters.
NC 3200 Series: High-output noise sources with output between 26 and 35 dB ± 1 dB ENR, used for radar and satellite communications system testing.

Calibration and Models:

NC3102-1 to NC3108 models cover frequency ranges from 0.4 GHz to 18 GHz with specific ENR and VSWR values.
NC3201-1 to NC3208 models offer high noise output for frequencies from 0.4 GHz to 18 GHz with specified ENR and flatness.

Options:

Packages can be supplied with threaded mounting holes.
Alternate sex of output connector available.
+15 VDC input voltage option (not available on all sources).
+28 VDC regulation with stabilized output ± 2 V variation.

Contact Information: Wireless Telecom Group Inc. has sales offices in the United States, United Kingdom, France, Germany, Singapore, and China.
