• High power output up to +13 dBm.
• Standard input voltage: +28 VDC for frequencies below 1.5 GHz and +15 VDC for frequencies above 1.5 GHz.
• Operating temperature range: -35°C to +100°C.
• Storage temperature range: -65°C to +150°C.
• Typical temperature coefficient: 0.025 dB/°C.
• Supply voltage sensitivity: 0.25 dB/1% V.
• Output connector: SMA female connector, with BNC available as an option.

Specifications are subject to change without notice.

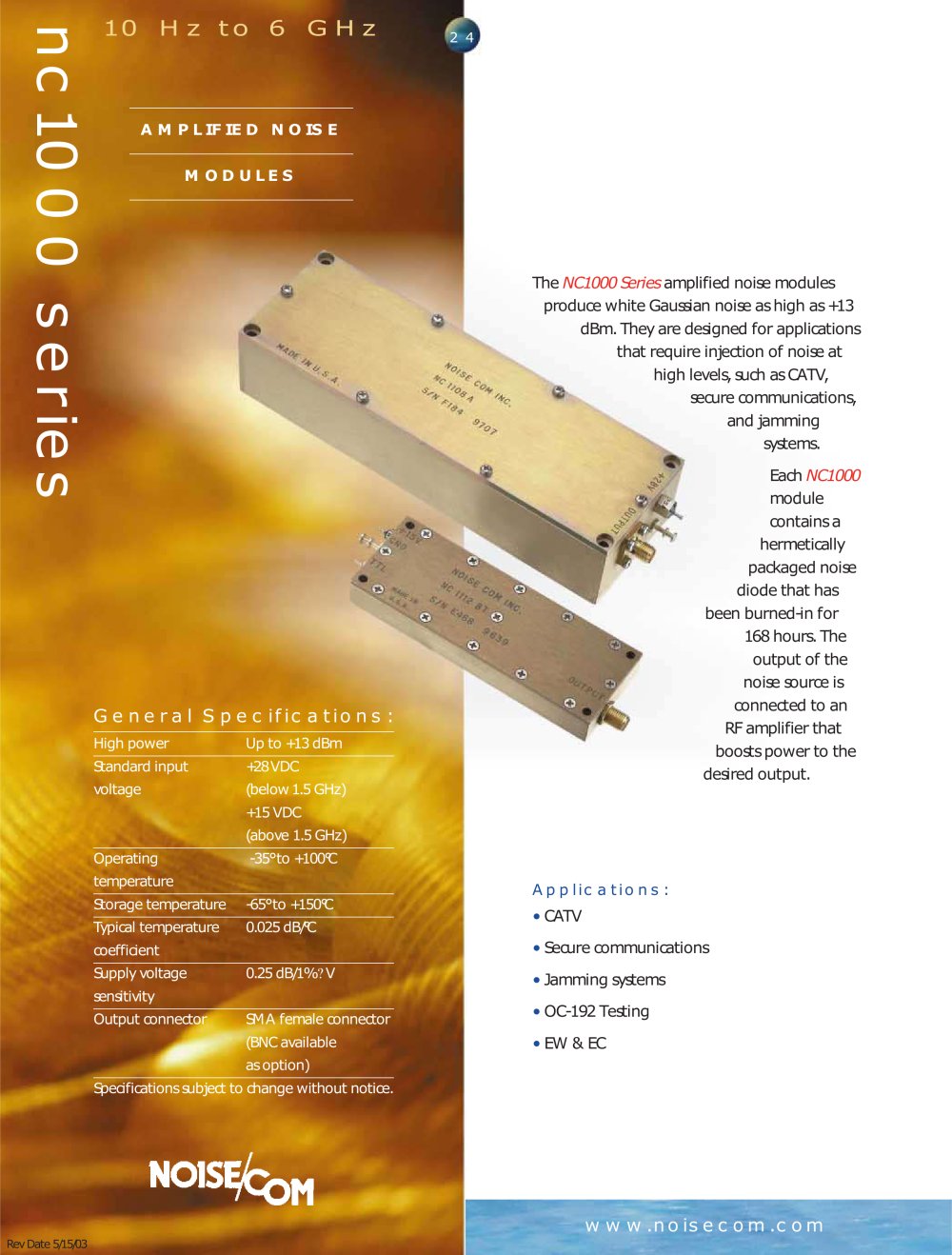

The NC1000 Series amplified noise modules generate white Gaussian noise up to +13 dBm. They are suitable for applications requiring high-level noise injection, such as CATV, secure communications, and jamming systems. Each module includes a hermetically packaged noise diode that has been burned-in for 168 hours, connected to an RF amplifier to boost power to the desired output.

• CATV
• Secure communications
• Jamming systems
• OC-192 Testing
• Electronic Warfare (EW) & Electronic Countermeasures (EC)

• NC1opt01: +15 VDC
• NC1opt02: +24 VDC
• NC1opt03: BNC female connector (for NC1101A through NC1110A only)
• NC1opt04: 0 dBm output (Package 2 for NC1101A through NC1110A, Package 3 for NC1111A through NC1128A)
• NC1opt05: TTL control "High" is on (add "T")
• NC1opt06: TTL control "Low" is on (add "IT")
• NC1opt07: Special frequency range (consult factory)

For 50-ohm load impedance, Package 1 operates with +28 VDC as standard, and Package 3 operates with +15 VDC as standard. The models cover various frequency ranges with different output power, flatness, and maximum current specifications.

• NC1101A: 10 Hz - 20 kHz, +13 dBm, ±0.5 dB flatness, 70 mA max current.
• NC1103A: 10 Hz - 500 kHz, +13 dBm, ±0.5 dB flatness, 150 mA max current.
• NC1105A: 10 Hz - 10 MHz, +13 dBm, ±0.75 dB flatness, 160 mA max current.
• NC1107A: 100 Hz - 100 MHz, +13 dBm, ±1.0 dB flatness, 160 mA max current.
• NC1108A: 100 Hz - 500 MHz, +10 dBm, ±1.5 dB flatness, 160 mA max current.
• NC1109A: 100 Hz - 1 GHz, +10 dBm, ±2.0 dB flatness, 160 mA max current.
• NC1110A: 100 Hz - 1.5 GHz, +10 dBm, ±2.0 dB flatness, 160 mA max current.
• NC1111A: 1 GHz - 2 GHz, -10 dBm, ±2.0 dB flatness, 250 mA max current.
• NC1111B: 1 GHz - 2 GHz, 0 dBm, ±2.0 dB flatness, 250 mA max current.
• NC1112B: 20 MHz - 2 GHz, 0 dBm, ±2.5 dB flatness, 250 mA max current.
• NC1124A: 2 GHz - 4 GHz, -7 dBm, ±2.0 dB flatness, 320 mA max current.
• NC1126A: 2 GHz - 6 GHz, -12 dBm, ±2.0 dB flatness, 320 mA max current.
• NC1128A: 10 MHz - 10 GHz, -17 dBm, ±3.0 dB flatness, 320 mA max current.
