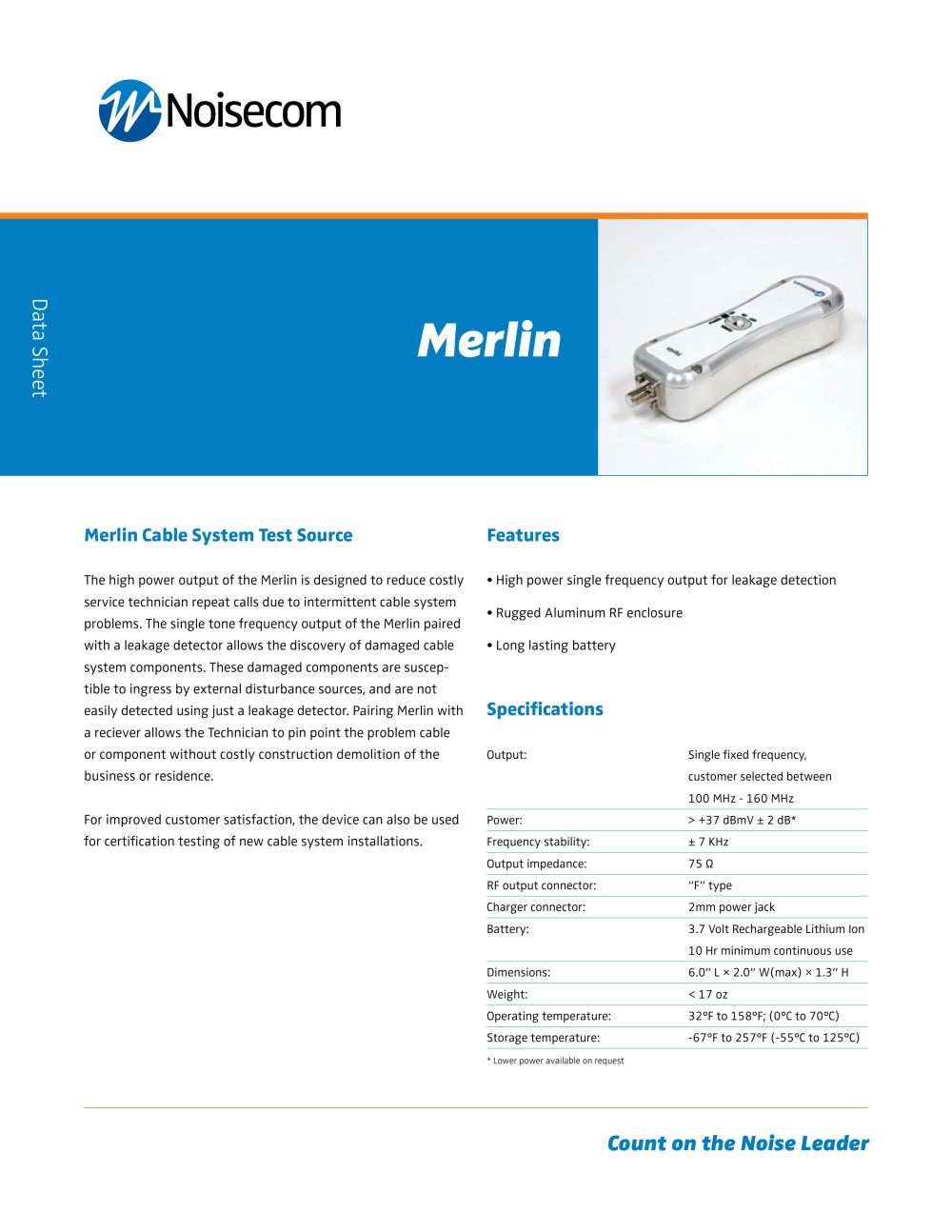

Count on the Noise Leader Merlin Cable System Test Source The high power output of the Merlin is designed to reduce costly service technician repeat calls due to intermittent cable system problems. The single tone frequency output of the Merlin paired with a leakage detector allows the discovery of damaged cable system components. These damaged components are susceptible to ingress by external disturbance sources, and are not easily detected using just a leakage detector. Pairing Merlin with a reciever allows the Technician to pin point the problem cable or component without costly construction demolition of the business or residence. For improved customer satisfaction, the device can also be used for certification testing of new cable system installations. Features • High power single frequency output for leakage detection • Rugged Aluminum RF enclosure • Long lasting battery Specifications Output: Single fixed frequency, customer selected between 100 MHz - 160 MHz Power: > +37 dBmV ± 2 dB* Frequency stability: ± 7 KHz Output impedance: 75 Ù RF output connector: “F” type Charger connector: 2mm power jack Battery: 3.7 Volt Rechargeable Lithium Ion 10 Hr minimum continuous use Dimensions: 6.0” L × 2.0” W(max) × 1.3” H Weight: < 17 oz Operating temperature: 32°F to 158°F; (0°C to 70°C) Storage temperature: -67°F to 257°F (-55°C to 125°C) * Lower power available on request Data Sheet Merlin

Open the catalog to page 1

Options Custom frequencies (consult factory) Applications Cable system test Cable installation Certification Part Numbering NCCW xxx.xxxx xxx.xxxx = Frequency between 100 MHz - 160 MHz Wireless Telecom Group Inc. 25 Eastmans Rd Parsippany, NJ United States Tel: +1 973 386 9696 Fax: +1 973 386 9191 www.noisecom.com © Copyright 2010 All rights reserved. N/Merlin/1010/EN Note: Specifications, terms and conditions are subject to change without prior notice.
