DSG9000 HD Radio

DSG9000 HD Radio

Product catalog summary

Overview: The DSG9000 series are HD Radio signal sources designed to play pre-recorded test vector files for various HD Radio service modes and channel configurations. Each unit includes a removable hard drive for storing test vectors, which can be upgraded by exchanging the drive.

Features: The DSG9000-02 model is equipped with a comprehensive suite of test vectors for engineers developing new AM/FM HD Radio products. The DSG9000-01 model is tailored for production testing with a simplified interface and includes basic test vectors for AM and FM.

Specifications:

Processor: Intel P4 1 MB L2-cache 800 MHz
Memory: 512 MB DDR333
Removable Hard Drive: 120 GB ATA
Dimensions: 7.5” x 17.25” x 19.5”
Weight: 29 lbs
Operating Temperature: 0 to 50° C
Power Requirements: 115 or 230 VAC, Max current 10 A @ 115 V, Frequency 47 – 63 Hz

FM Output:

Power Output: -10 dBm
Gain Flatness: within 1 dB peak to peak from 97.7 - 98.1 MHz
On Channel Spectral Emissions: < -50 dBc at 97.9 MHz
Wideband Spectral Emissions: < -60 dBc
SSB Phase Noise: at 107.9 MHz, Frequency Offset in Hz dBc: 10 -42, 100 -67, 1K -77, 10K -87, 100K -107

AM Output:

AM Power Output: > -30 dBm
Gain Flatness: within 1 dB peak to peak from 1110 – 1130 kHz
On Channel Spectral Emissions: < -80 dBc at 1710 kHz with > 20.5 kHz offset
Wideband Spectral Emissions: < -75 dBc
SSB Phase Noise: at 1710 kHz, Frequency Offset in Hz dBc: 1 -40, 10 -50, 100 -90, 1K -95, 10K -110, 100K -120

Test Vectors:

DSG9000-01: Includes AM and FM production test vectors.
DSG9000-02: Offers a wide range of AM and FM test vectors for various scenarios including audio mix, BER patterns, and different channel conditions.

Ordering Information:

DSG9000-01: For production testing.
DSG9000-02: For full development.
Options: LCD Monitor, Antenna Package, Vector updates, RF Amplifier & Attenuator Unit, Remote Control.

Contact Information: Wireless Telecom Group Inc., 25 Eastmans Rd, Parsippany, NJ, United States. Tel: +1 973 386 9696, Fax: +1 973 386 9191, www.noisecom.com

Catalog excerpts

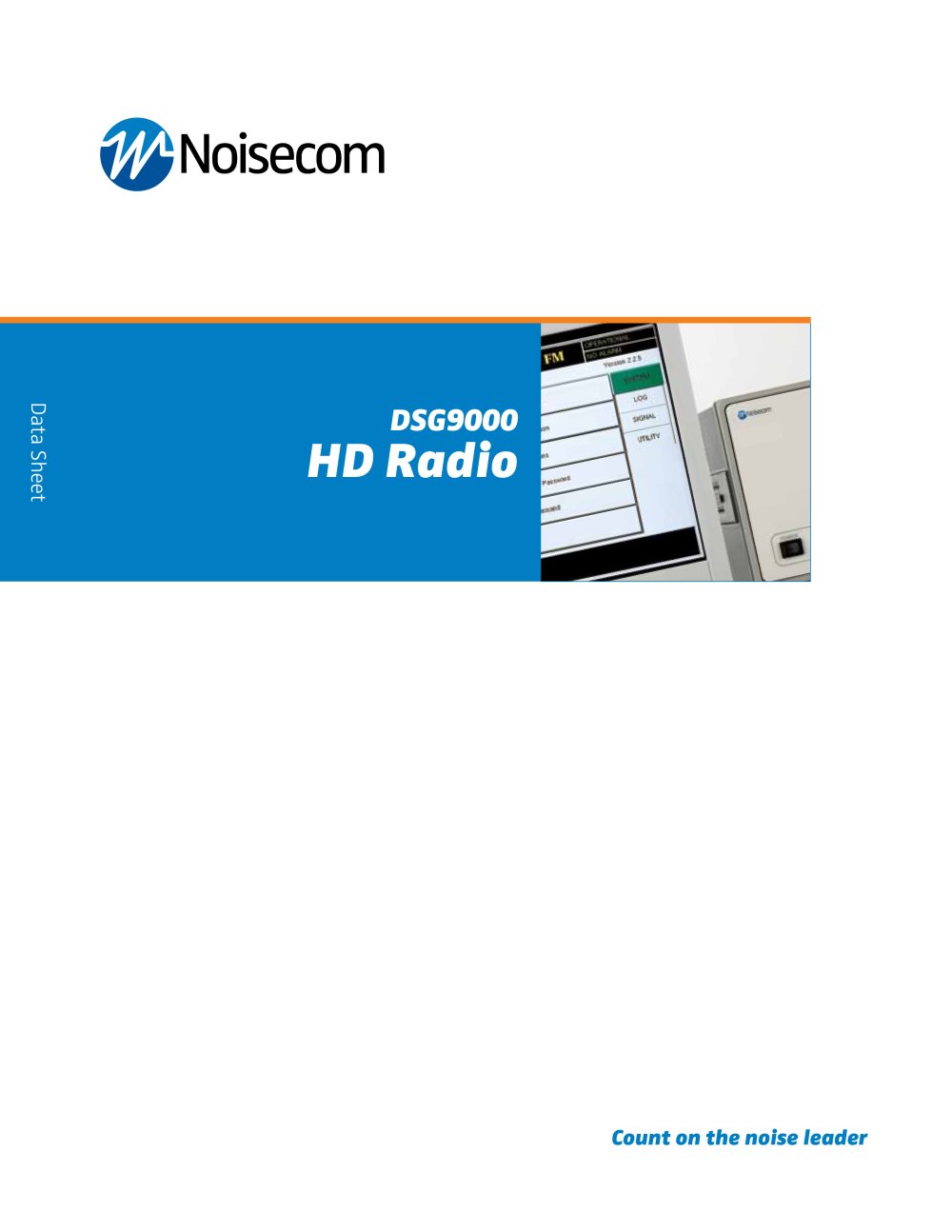

Count on the noise leader Data Sheet DSG9000 HD Radio

Open the catalog to page 1

2 DSG9000 HD Radio Series Features The Dsg9000 series instruments are HD Radio signal sources designed to play pre-recorded test vector files that replicate various HD Radio service modes and channel configurations. Every Dsg9000 includes a removable hdd for test vector storage. New test vectors can be added by exchanging the removable hdd. For a basic service fee, the existing drive can be sent to Noisecom for the upgrade. The instruments are certified by iBiquity Digital Corporation, the sole developer and licenser of Digital HD Radio technology. RF Digital Signal Source Generates Certified...

Open the catalog to page 2

3 DSG9000-01 Test Vectors Vector name Test Description IB_AMr230a_e0wfc102.bin AM production test vector IB_FMr230_e0wfc102.bin FM production test vector DSG9000-02 Test Vectors AM section Vector name, file size in MB, Disc # Test Description IB_AMr208_e0wfa05.bin ,177, 9 MA1, Audio Mix, clean Channel, with SIS & PA IB_AMr208_e0wfa07.bin ,177, 13 MA3, audio mix, clean channel, with SIS & PAD IB_AMr208_e0wfa10.bin ,177, 9 MA1, AWGN audio source, clean channel IB_AMr208a_e0wfb00.bin ,8 ,12 MA1, analog source = pulsed USASI, digital = BER pattern, clean channel IB_AMr208_e0wfb01.bin ,8 ,6 MA3, analog...

Open the catalog to page 3

5 FM Section (cont.) IB_FMr208d_e0wfc540.bin ,1036 ,4 MP5, BER Pattern, Cd/No = 55 dB-Hz IB_FMr208d_e0wfc542.bin ,2073 ,10 MP5, BER Pattern, Cd/No = 57 dB-Hz IB_FMr208c_e0wfc546.bin ,1036 ,3 MP5, BER Pattern, Cd/No = 56 dB-Hz, urban fast fading IB_FMr208c_e0wfc547.bin ,2073 ,5 MP5, BER Pattern, Cd/No = 57 dB-Hz, urban fast fading IB_FMr208c_e0wfc548.bin ,2073 , 5 MP5, BER Pattern, Cd/No = 59 dB-Hz, urban fast fading IB_FMr208d_e0wfc549.bin ,2073 ,8 MP5, BER Pattern, Cd/No = 60 dB-Hz, urban fast fading IB_FMr208c_e0wfc27.bin ,34 ,13 MP1, Stereo 1-kHz tone with calibrated analog and digital audio...

Open the catalog to page 5

Ordering Information DSG9000-01 HD Radio Digital Signal Generator For Production Test DSG9000-02 HD Radio Digital Signal Generator For Full Development Options DSG9opt01 15 Inch LCD Monitor DSG9opt02 Antenna Package (AM loop & FM Whip) DSG9opt03 Vector update for Model - 02 only DSG9opt04 Model - 01 to Model - 02 test vector upgrade DSG9opt05 RF Amplifier & Attenuator Unit DSGopt06 Remote Control Amplifier & Attenuator Unit Wireless Telecom Group Inc. 25 Eastmans Rd Parsippany, NJ United States Tel: +1 973 386 9696 Fax: +1 973 386 9191 www.noisecom.com © Copyright 2011 All rights reserved. N/DSG9000/0311/EN...

Open the catalog to page 6
