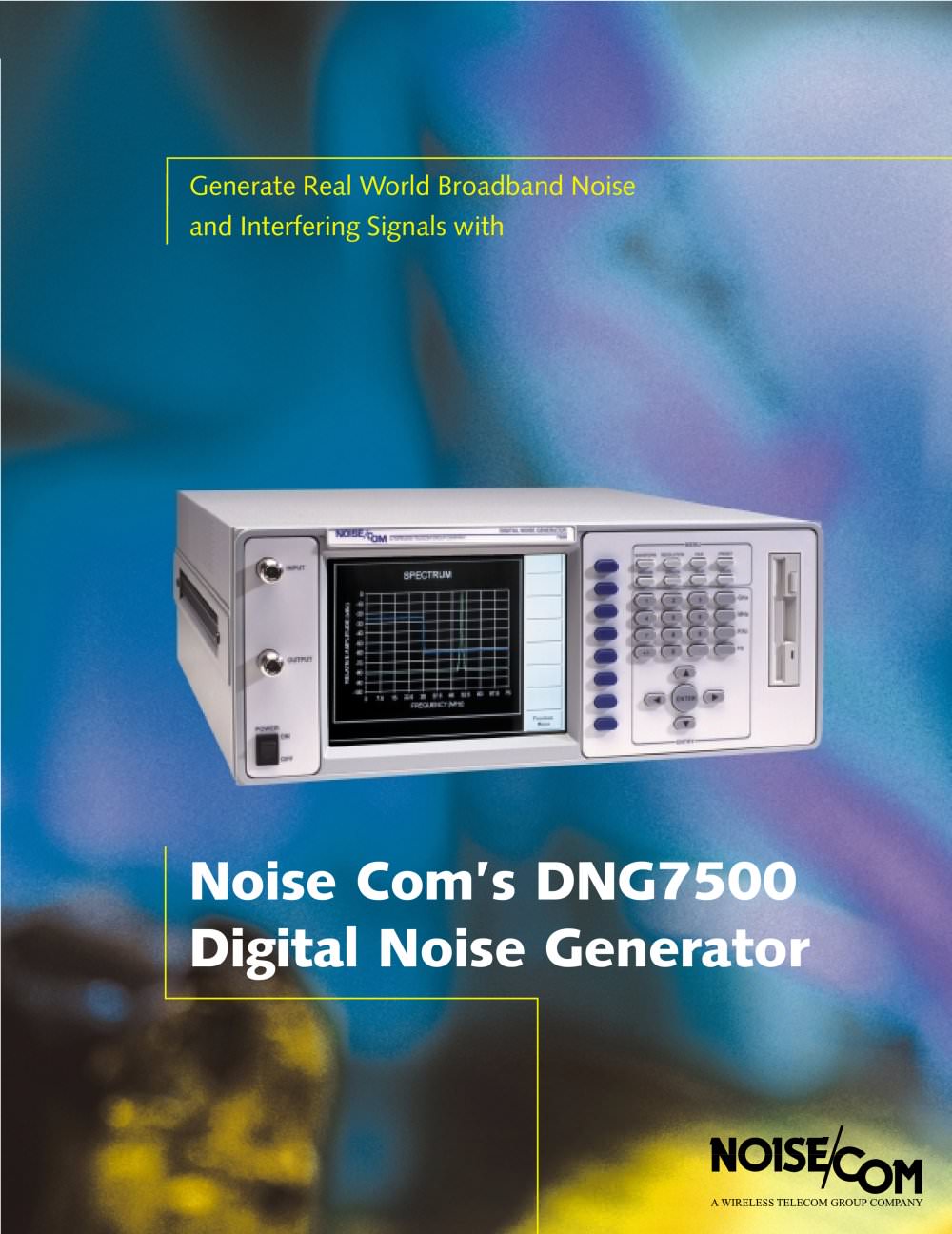

Generate Real World Broadband Noise and Interfering Signals with Noise Coms DNG7500 Digital Noise Generator >

Waveform edit screenPredicted > The Noise Com DNG7500, generates programmable,user specified, pseudo-noise and CW signal spectrums for RF, Microwave, and Fiber Optic equipment testing. It can provide a 70 MHz RF spectrum output including noise and CW waveforms to precisely emulate real-world noise and interference conditions. Noise and Signal parameters can be entered via keypad and a 8.4 inch color GUI- Graphical User Interface. It can also generate signals from data files supplied by the user and downloaded via anoptional Ethernet remote interface. The unit comes standardwith a GPIB,...

Open the catalog to page 2

spectral plotActual waveform displayed on spectrum analyzer > 70 MHz RF output bandwidth Deep memory, 32 M-Byte standard,Up to 64 M-Byte memory External triggering. Generates noise and interfering signals for all types of communica-tions applications Custom frequency converters available up to 40 GHz. View noise and CW spectrum ploton Display. MatLab file download compatible. GUI-Graphical User Interface whichcan plot predicted spectrum Variable output attenuator Internal Analog noise (true AWGN)generation. Rack mountable chassis 8.4 Color VGA Display The DNG includes interfaces forvideo...

Open the catalog to page 3

Frequency Range:500 kHz to 70 MHzFrequency Resolution:Noise:1 Hz CW:1 KHz Output Bandwidth:70 MHz Output Power:0 dBm Output Attenuator: 63.9 dB in 0.1 dB steps Impedance:50 Ohms VSWR:1.5:1 Output Connector:Type N Harmonically Related Spurs:-60 dBc typicalNon-harmonic Spurs:-60 dBc typical <50MHz-55 dBc typical <60MHz -50 dBc typical >60MHz > Memory:32 MB standard, optionally up to 64 MB DAC Resolution:14 bits DAC Output Rate:150 MSPS > Controller/Processor:Pentium Class 500 MHz Memory:256 MB Hard Drive:20.5 GBDisplay:8.4 TFT-LCD 640x480 resolution Operating System:Windows 98 SE...
