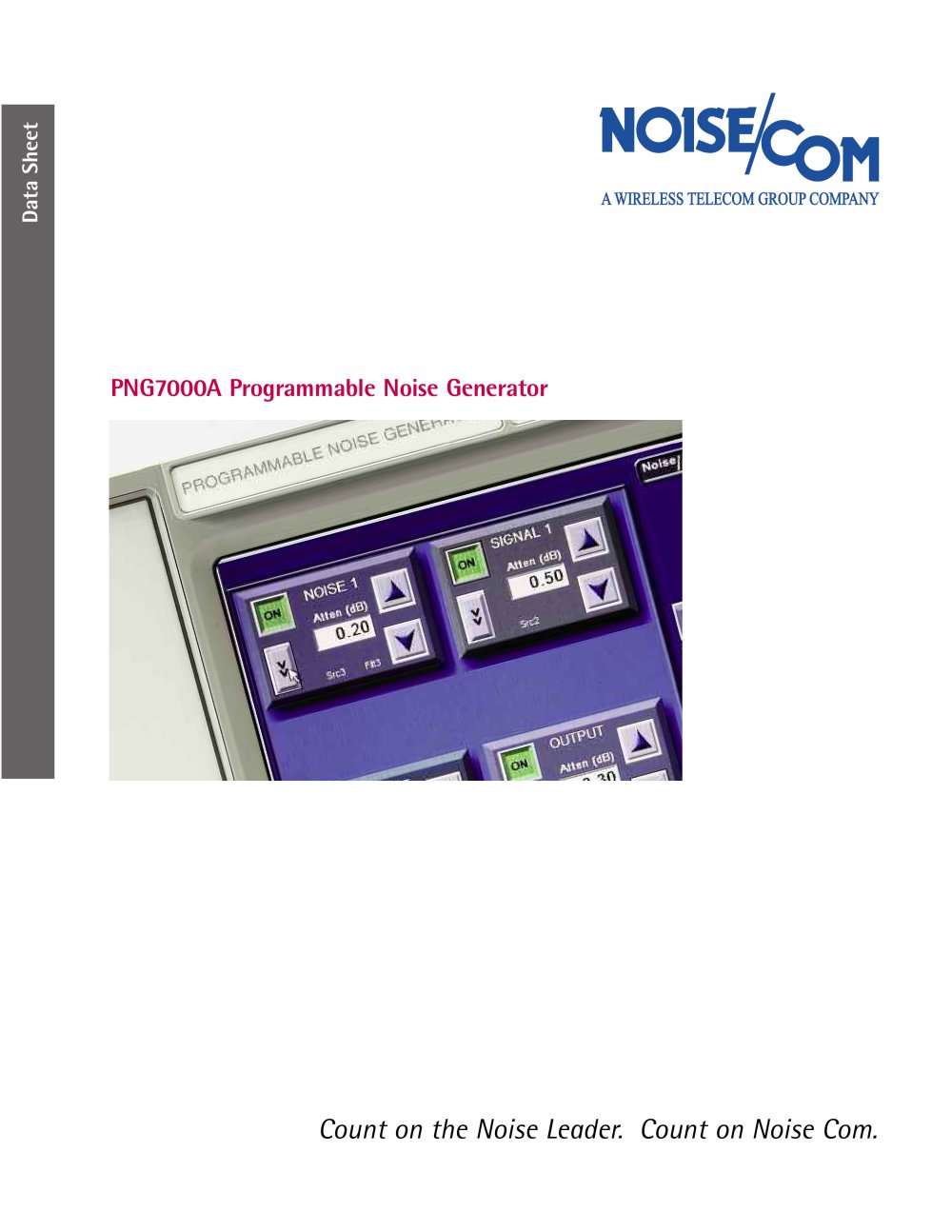

Overview: The PNG7000A Programmable Noise Generator is designed to generate white Gaussian noise with a minimum 18 dB crest factor and an output noise power of +3 dBm. It features a noise attenuator adjustable from 0 to 63 dB in 0.25 dB steps, with high accuracy across various frequency ranges.

Specifications: The device offers a signal path gain of 0 ±1 dB and a group delay variation of ±0.2 nsec/40 MHz. It includes standard SMA female connectors and a 6.25” color VGA, TFT touch screen. The dimensions are 17.22 inches wide, 6.30 inches high, and 19.5 inches deep, with fold-down feet for bench-top use. It operates on 115 VAC, 60 Hz power and within a temperature range of -10° to +65°C.

Functionality: The PNG7000A Series instruments are microprocessor-controlled and can be operated manually via a touch screen or remotely through IEEE-488 bus, Ethernet, or RS232. They are suitable for BER, Jitter Testing, Serial Data Testing, C/N Ratio Testing, Eb/No Testing, Multiplexers, and Disk Drive Channel Testing.

Output Characteristics: The series includes models with varying frequency bands from 1 MHz to 2 GHz, all providing +3 dBm power with a flatness of ±0.25 dB over 40 MHz.

Options: Available options include different input/output impedances, power supply configurations, remote control capabilities, signal attenuators, DC coupling, custom filters, and rack mount configurations.

Contact Information: For further details, Noise Com can be contacted at their Parsippany, NJ office via phone, fax, or email. Their website provides additional resources and contact options.
