UNIVERSAL HANDY CHUCK HOLDER

UNIVERSAL HANDY CHUCK HOLDER

Product catalog summary

Deburring Systems Overview

This document provides an overview of various deburring tools, highlighting their specifications, included components, and applications.

1. SOFT GRIP SG1000

Ergonomically designed handle with two holes to accommodate both S and N blades.
Includes SG handle, S100, and N10 cobalt blades.

2. LIZA BURR LB1000

Double end blade holder for N and S blades.
Telescopic range: 20-110mm with N blades, 20-94mm with S blades.
Includes Uni-handle, SN holder, N1, and N2 blades.

3. LEADER NG3800

Designed for chamfering straight or curved edges at 45°.
Includes NG-3 handle, LD holder, and L1 blade.

4. UNIVERSAL HANDY CHUCK HOLDER PV1000

Aluminum handle with non-slip covering.
Features a 3-jaw chuck for secure clamping of various tools.
Hardness: 58HRC.
Instructions for blade insertion and removal provided.

5. Specialty Tools

NOGA MINI CUT NG3220: For deburring small ridges in hard-to-reach areas. Range: 0-2.5mm.
NOGA CORNER CLEANER NG3230: Effective for corner relief with a wide range of applications.
THREAD CLEANER NG1600: Cleans damaged internal threads. Minimum diameter: 9mm, maximum thread pitch: 3mm.
NOGA SLOT CLEANER NG3210: Relieves corners of narrow slots from 3.5mm.

6. Plastic Tools

PLASTIC RAPID BURR RB1400: Holds all S blades (3.2mm), replaceable blade.
PLASTIC EDGE OFF EO2000: Competitive tool holding all S blades (3.2mm), replaceable blade.
PLASTIC REAMER SP8100: Deburrs both inside and outside edges of tubes, suitable for aluminum, brass, and copper tubing. Range: 4-42mm.
NOGA TRIO RB3000: Standard set includes RB handle with various blades for different materials.

Catalog excerpts

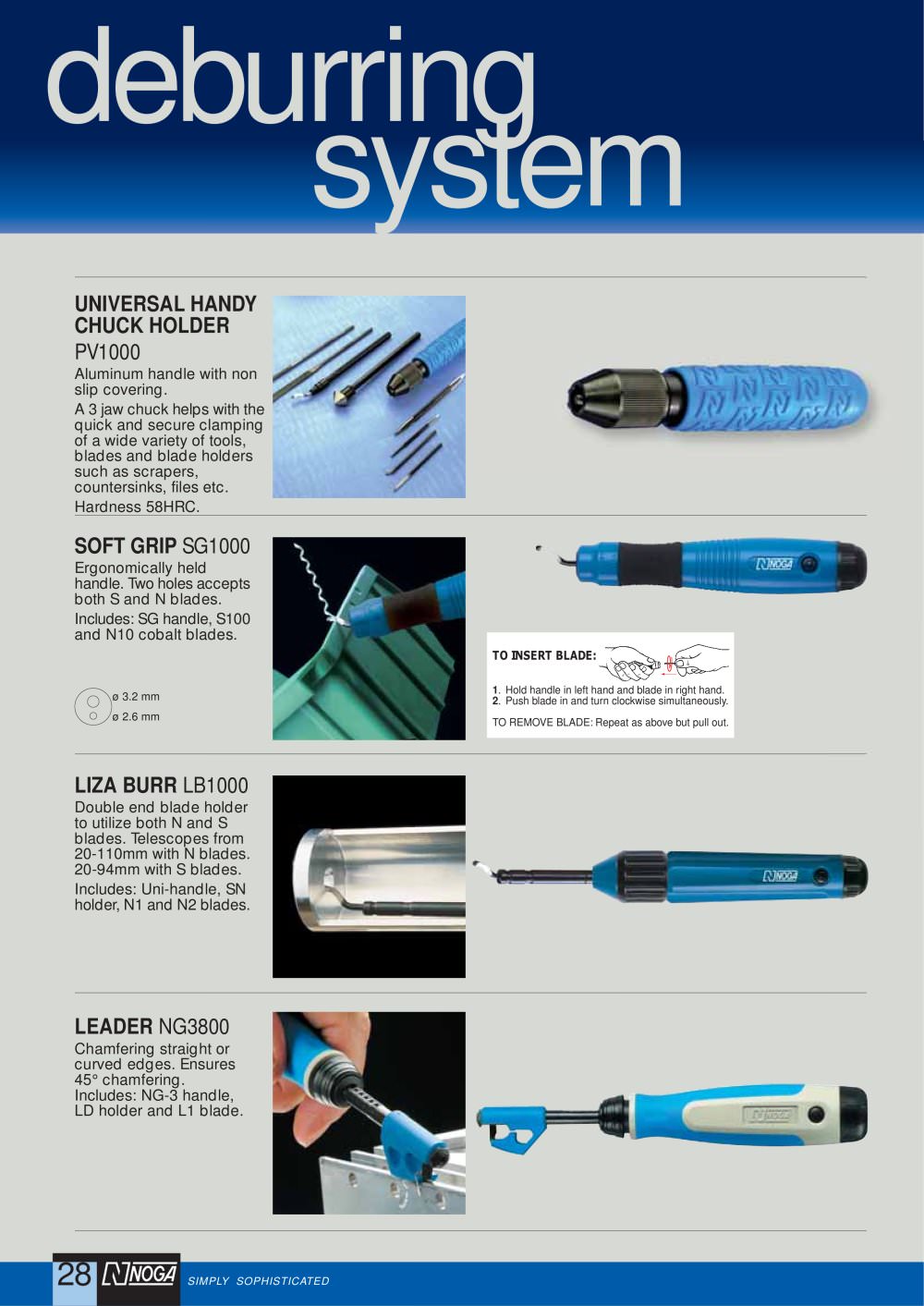

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.80pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:82.00pt "Arial", sans-serif; } deburring svstem UNIVERSAL HANDY CHUCK HOLDER PV1000 Aluminum handle with non slip covering. A 3jaw chuck helps with the quick and secure clamping of a wide variety of tools, blades and blade holders such as scrapers, countersinks, files etc. Hardness 58HRC. SOFT GRIP SG1000 Ergonomically held handle. Two holes accepts both S and N blades. Includes: SG handle, S100 and N10 cobalt blades. TO INSERT BLADE: 0 3.2 mm O /0 2.6 mm 1. Hold handle in left hand and blade in right hand. 2. Push blade in and turn clockwise simultaneously. TO REMOVE BLADE: Repeat as above but pull out. LIZA BURR LB1000 Double end blade holder to utilize both N and S blades. Telescopes from 20-110mm with N blades. 20-94mm with S blades. Includes: Uni-handle, SN holder, N1 and N2 blades. LEADER NG3800 Chamfering straight or curved edges. Ensures 45° chamfering. Includes: NG-3 handle, LD holder and L1 blade.

Open the catalog to page 1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:10.80pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } NOGA SLOT CLEANER NG3210 Used to relieve corners of narrow slots from 3.5mm. Includes: NG-3 handle, L holder and L5 blade. (L7 double end blade for cutting in two directions is also available) NOGA MINI CUT NG3220 Used for deburring small ridges in difficult to reach places. Range: 0-2.5mm. Includes: NG-3 handle. L holder and L4 blade. NOGA CORNER CLEANER NG3230 Effective corner relief. Wide range...

Open the catalog to page 2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:10.80pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:82.00pt "Arial", sans-serif; } deburring svstem PLASTIC RAPID BURR RB1400 Holds all S blades (3.2mm). The blade is replaceable. Includes: plastic handle and S100 blade. PLASTIC EDGE OFF EO2000 Most competitive tool. Holds all S blades (3.2mm). The blade is replaceable. Includes: plastic handle and S10 blade. PLASTIC REAMER SP8100 Deburr both inside and outside edges of tube. Made of...

Open the catalog to page 3
