SPECIALTY BLADES

SPECIALTY BLADES

Product catalog summary

Overview: This document provides a detailed list of specialty blades, including their order numbers, types, and recommended applications. The blades are designed for various materials and specific tasks, ensuring optimal performance and longevity.

Specifications:

Order Numbers: Each blade is identified by a unique order number, such as BN1029, BN1028, etc.
Blade Types: The blades are categorized by material and coating, including Carbide, Diamond, and TiN (Titanium Nitride) coatings.

Applications:

Material Compatibility: Blades are suitable for hardened steel, special plastics, glass, ceramics, aluminum, and more.
Specific Uses: Some blades are designed for long life, handling both internal and external burrs, cross holes, shallow steps, straight edges, and deburring rubber and soft materials.

Recommendations:

Left Hand (LH) and Left/Right Hand (L/R) Usage: Certain blades are specified for left-hand users only, while others are suitable for both left and right-hand users.
Special Features: Some blades have heavy-duty shanks for enhanced durability and are capable of working on holes as small as 1.5mm in diameter.

Critical Information:

Ensure the correct blade type is selected based on the material and specific task requirements to maximize efficiency and blade life.
Consider the hand orientation (LH or L/R) when selecting blades for user comfort and safety.

Catalog excerpts

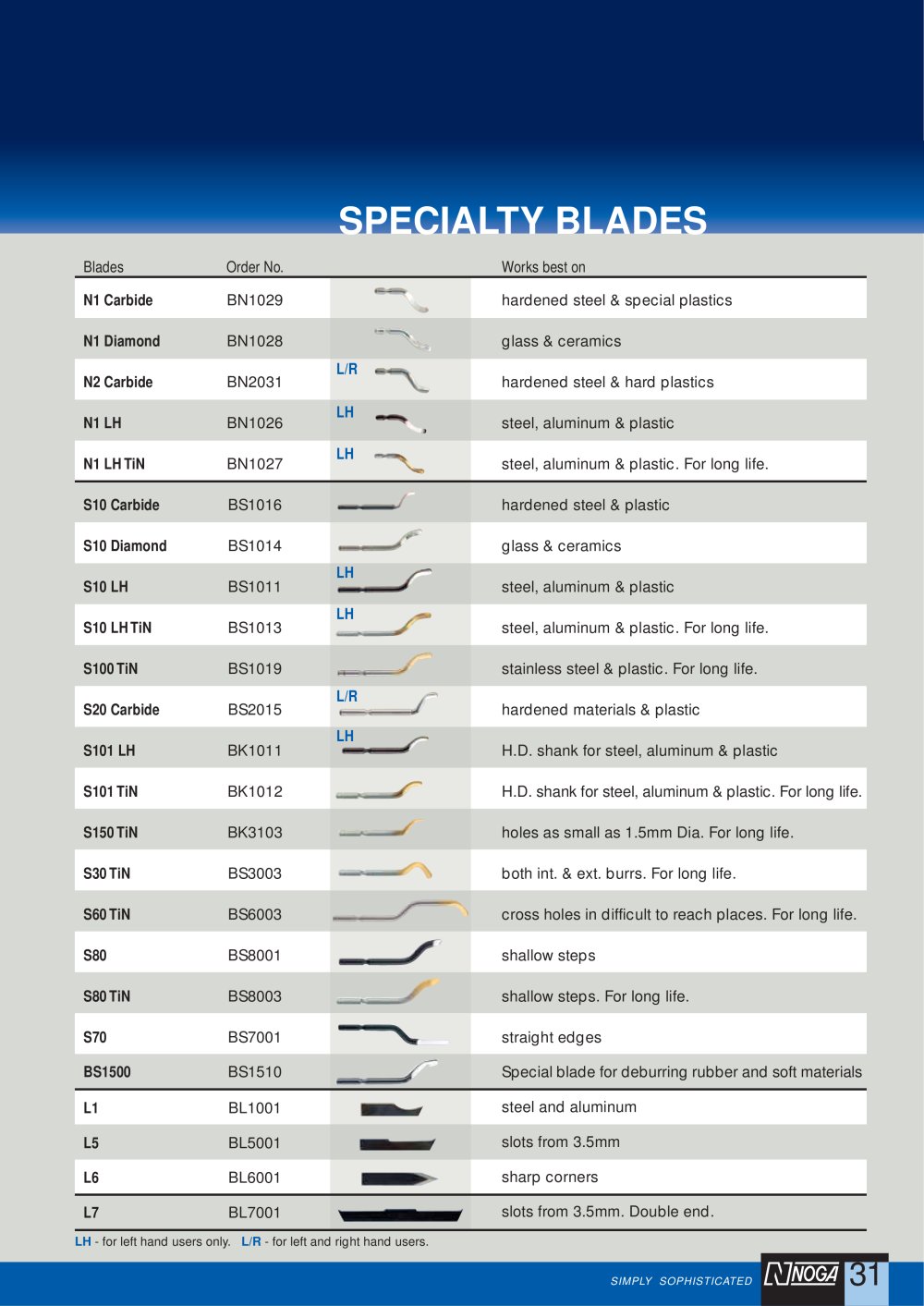

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:7.20pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:22.00pt "Arial", sans-serif; } SPECIALTY BLADES Blades Order No. Works best on N1 Carbide BN1029 hardened steel & spcial plastics N1 Diamond BN1028 glass & ceramics N2 Carbide BN2031 L/R hardened steel & hard plastics N1 LH BN1026 LH steel, aluminum & plastic N1 LH TiN BN1027 LH steel, aluminum & plastic. For long life. S10 Carbide S10 Diamond S10 LH S10 LH TiN 5100 TiN S20 Carbide 5101 LH S101 TiN S150 TiN S30 TiN S60 TiN S80 S80 TiN S70 BS1500 BS1016 BS1014 BS1011 BS1013 BS1019 BS2015 BK1011 BK1012 BK3103 BS3003 BS6003 BS8001 BS8003 BS7001 BS1510 hardened steel & plastic glass & ceramics steel, aluminum & plastic steel, aluminum & plastic. For long life. stainless steel & plastic. For long life. hardened materials & plastic H.D. shank for steel, aluminum & plastic H.D. shank for steel, aluminum & plastic. For long life. holes as small as 1.5mm Dia. For long life. both int. & ext. burrs. For long life. cross holes in difficult to reach places. For long life. shallow steps shallow steps. For long life. straight edges Special blade for deburring rubber and soft materials L1 L5 L6 BL1001 BL5001 BL6001 steel and aluminum slots from 3.5mm sharp corners L7 BL7001 slots from 3.5mm. Double end. LH - for left hand users only. L/R - for left and right hand users. SIMPLY SOPHISTICATED
