Sets & indicators
Product catalog summary
Overview: The document provides details on various holder sets and indicators offered by NOGA, highlighting their specifications and components.

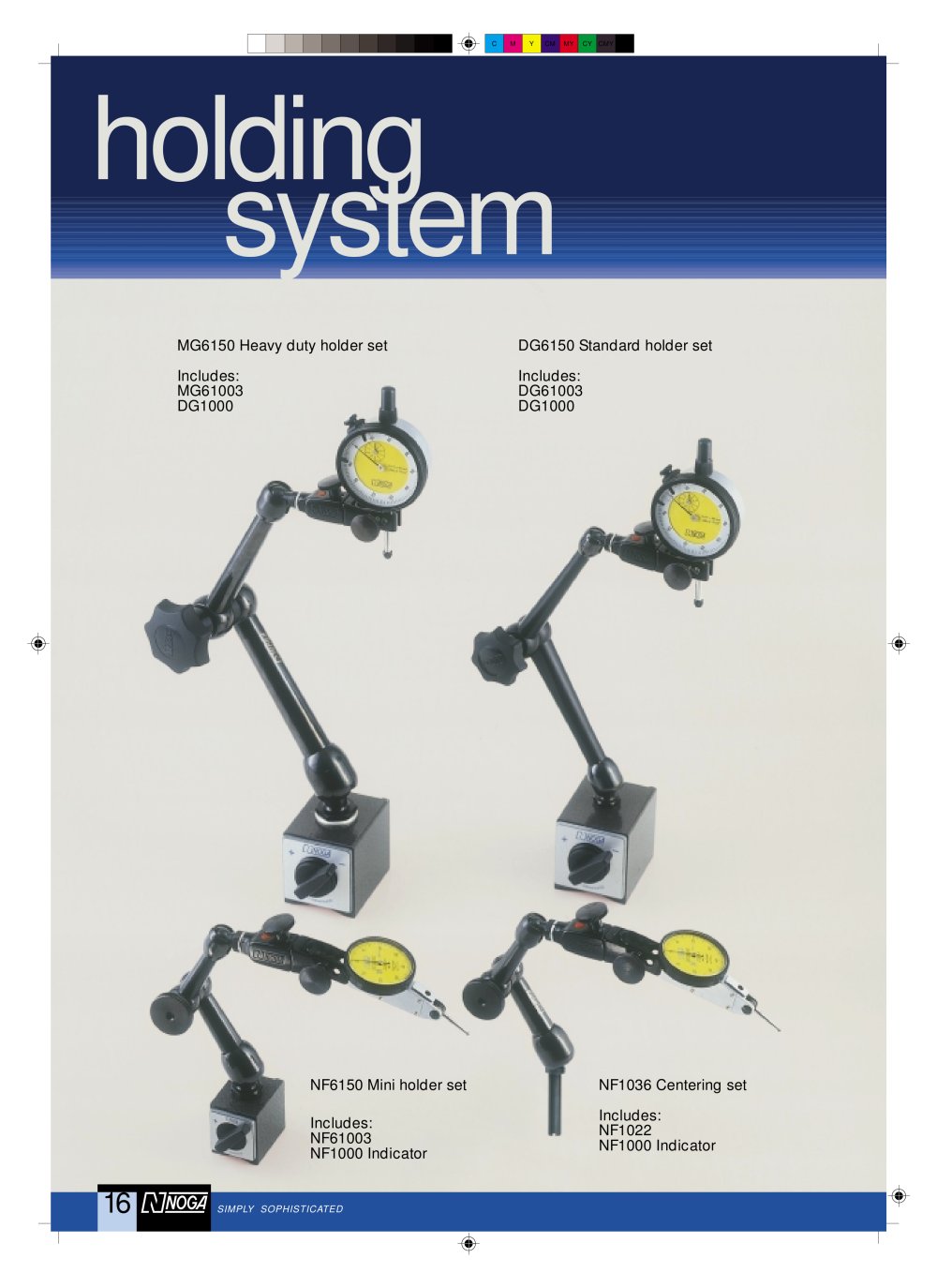

Holder Sets:
- MG6150 Heavy Duty Holder Set: Includes MG61003 and DG1000.
- DG6150 Standard Holder Set: Includes DG61003 and DG1000.
- NF1036 Centering Set: Includes NF1022 and NF1000 Indicator.
- NF6150 Mini Holder Set: Includes NF61003 and NF1000 Indicator.
Indicators:
- NF1000 Indicator: Features a dial diameter of 58 mm, stem diameter of 8 mm, measuring range of 10 mm, and graduations of 0.01 mm.
- DG1000 Indicator: A lever-type test indicator with a dial diameter of 39 mm, measuring range of 0.8 mm, graduations of 0.01 mm, and a contact point of 2 mm diameter and 20.9 mm length. It includes three dovetails for clamping.
Specifications:
- All measurements are in millimeters unless otherwise mentioned.
- Order numbers and dimensions for each set are provided, including bottom thread, dimension weight, magnet holder, and arm lengths.
Key Measurements:
- Bottom arm length (L1), top arm length (L2), and total length (L1 + L2 + L3) are specified for each holder set.
