Product Overview: The NOGACOOL system is a sophisticated cooling solution featuring a manifold and Loc-Line® flexible hose with a nozzle on top and a valve at the bottom. It is mounted on a robust on/off Popeye magnet. The system allows for the replacement of the plug with a second Loc-Line® hose.

Components and Specifications:

The system includes a set of three nozzles with diameters of 1/16”, 1/8”, and 1/4”.
Working conditions include a pressure range of 2-3.4 Bar (30-50 Psi) and a flow rate of 940 l/hour (250 gal/hour).
The maximum working temperature is 170°C.
The flexible Loc-Line® hose measures 324 mm, with other dimensions available upon request.

Nozzle Options:

Plastic nozzles with diameters of 1.6 mm (1/16”), 3.2 mm (1/8”), and 6.3 mm (1/4”).
Wide plastic nozzles with 16 holes of 1 mm and 1.5 mm diameters.

Additional Options: The system is also available with only the magnet and manifold (order no. MC0161).

Spare Parts and Order Numbers:

320N Popeye magnet with top thread M5.
Manifold NF0037.
Various order numbers for different components and configurations, including MC0066, MC0063, MC0067, MC0072, MC0073, MC0320, MC0156, and MC1601.

Catalog excerpts

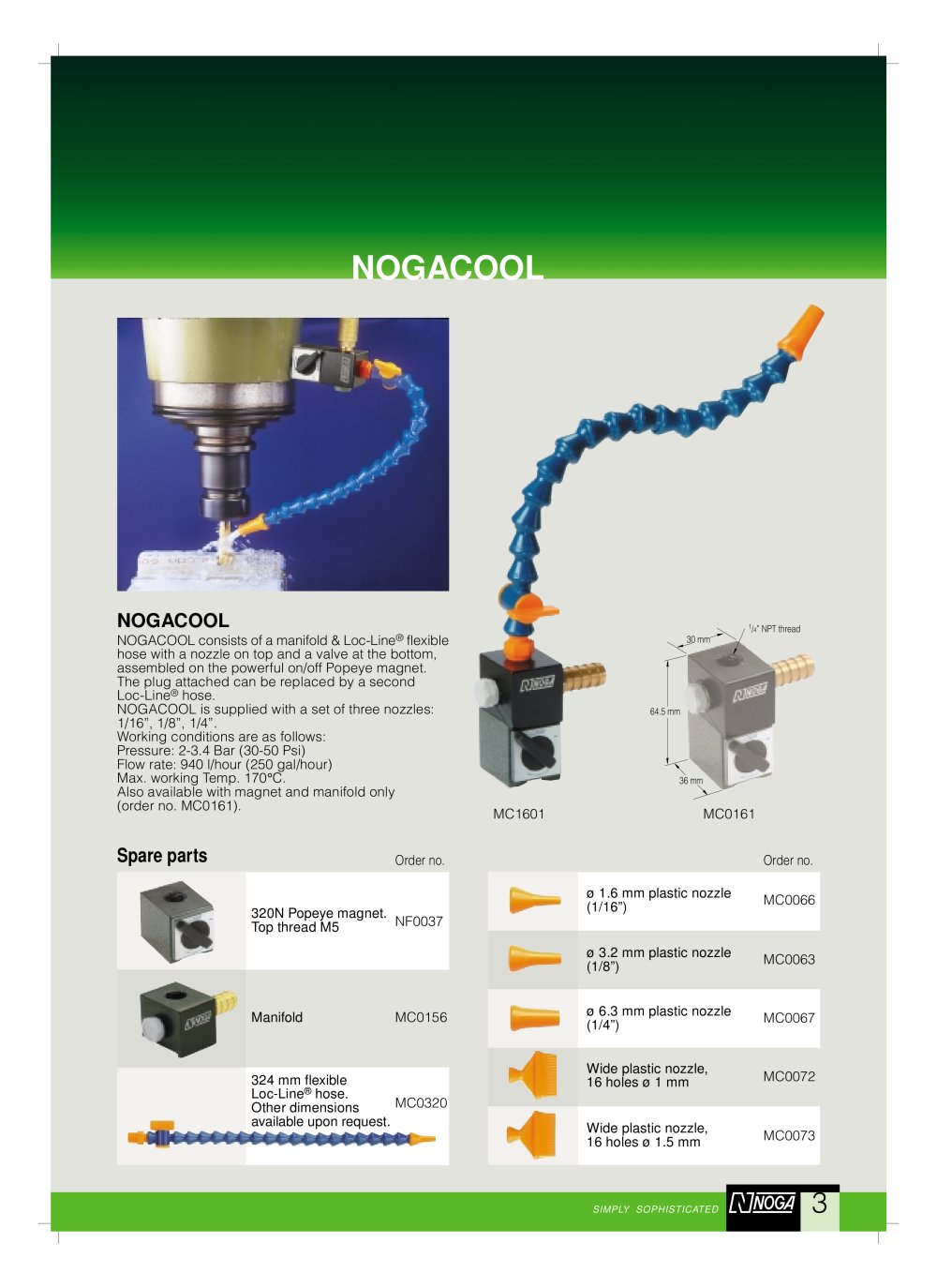

1 / 4 NPT thread 36 mm NOGACOOL consists of a manifold & Loc-Line > Ԯ flexiblehose with a nozzle on top and a valve at the bottom, assembled on the powerful on/off Popeye magnet. The plug attached can be replaced by a second Loc-Line > 30 mm C.Also available with magnet and manifold only (order no. MC0161). > Ю hose.NOGACOOL is supplied with a set of three nozzles: 1/16, 1/8Ԕ, 1/4.Working conditions are as follows: Pressure: 2-3.4 Bar (30-50 Psi) Flow rate: 940 l/hour (250 gal/hour) Max. working Temp. 170 > 64.5 mm MC0161 > Order no. Order no. MC0066MC0063MC0067MC0072MC0073 320N Popeye magnet.Top thread M5Manifold NF0037MC0156 MC1601 324 mm flexible Loc-Line > Ԯ hose.Other dimensions available upon request. 1.6 mm plastic nozzle(1/16)蔸 3.2 mm plastic nozzle(1/8)Ը 6.3 mm plastic nozzle(1/4)Wide plastic nozzle,16 holes Ը 1 mmWide plastic nozzle,16 holes 1.5 mm MC0320 > SIMPLY SOPHISTICATED
