NOGA O-RING BURR

NOGA O-RING BURR

Product catalog summary

Product Overview:
NOGA O-RING BURR NG1100 is designed to remove burrs from internal O-ring grooves with a range of 0-3mm in groove width. It includes an NG-1 handle and an O-ring blade.

Holders:

K Holder EL04003: Holds K blades with an M3 screw, measuring 135mm in length.
L Holder EL07013: Holds L blades in a 3mm square hole, tightened with a 4mm setscrew, and is 131mm long.

Handles:

NG-3 Handle NG3000: NogaGrip-3 is designed for maximum comfort and holds all blade holders.
NG-1 Handle NG1000: NogaGrip-1 is designed for comfort and holds all S blades (3.2mm).

Blades:
All blades are made of High-Speed Steel (H.S.S.) with a hardness of 62-64Rc, except for N80M42 and N80KM42, which have a hardness of 65-67Rc. The blades come in various types with different included angles and ranges.

Key Products:

NOGA V CUT NG3200: Designed for deburring sheet metal ranging from 1-8mm. It includes an NG-3 handle, L holder, and L3 blade.
KEYWAY-BURR NG3300: Effectively removes burrs from internal and external keyways with a range of 2.4-11mm. It includes an NG-3 handle, K holder, and N80K blade.
DOUBLE BURR DB1000: Simultaneously removes burrs from both sides of sheet metal with a range of 0-12mm. It includes a DB handle, hand guard, and two N80 blades.

Features:
All products are part of a patented deburring system, emphasizing comfort and efficiency. The double edge cutting feature enhances the longevity and effectiveness of the blades.

Catalog excerpts

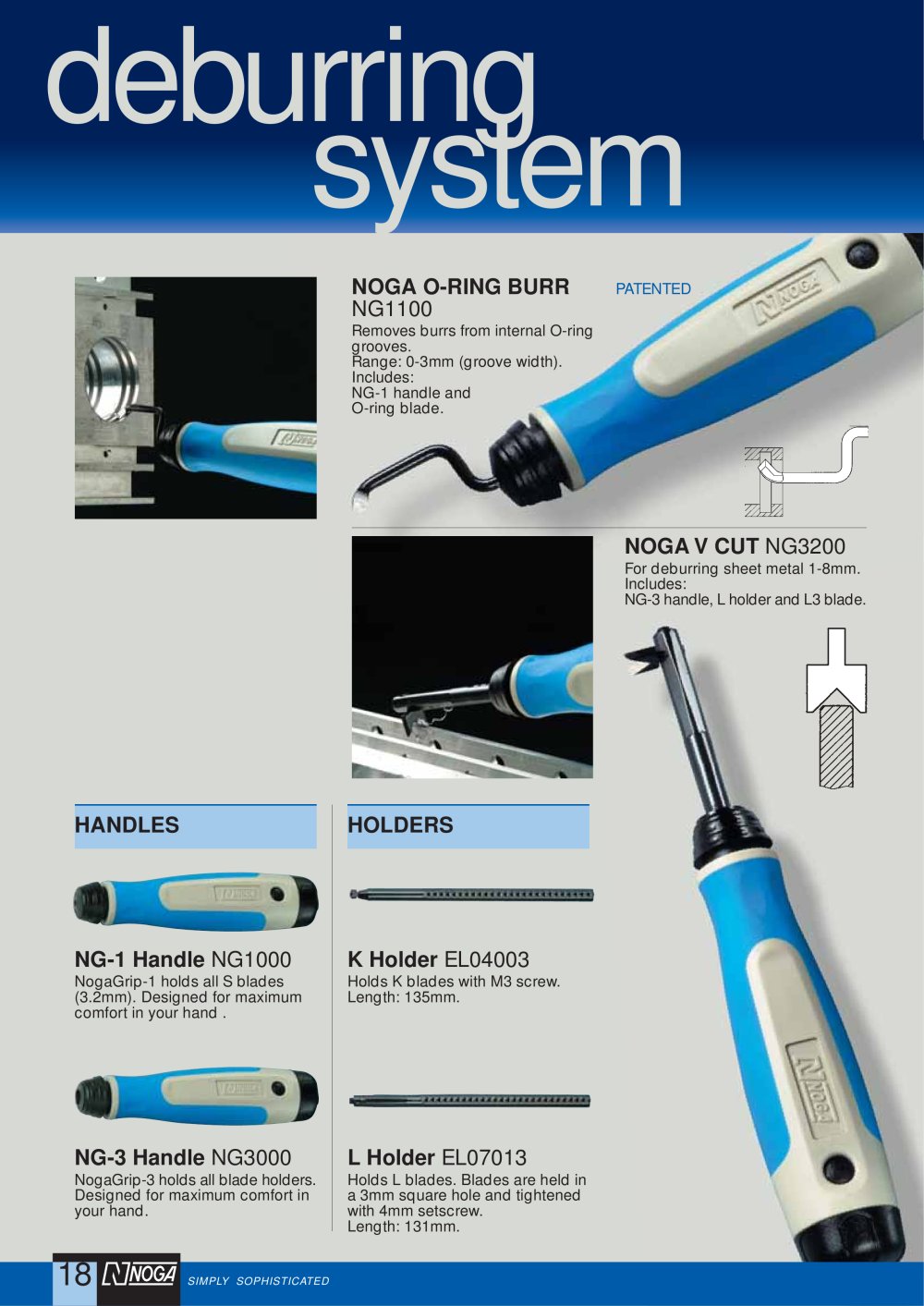

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:82.00pt "Arial", sans-serif; } .font5 { font:56.00pt "Arial Black", sans-serif; } deburrin svstem NOGA O-RING BURR NG1100 Removes burrs from internai O-ring grooves. Range: 0-3mm (groove width). Includes: NG-1 handle and O-ring biade. HANDLES NOGA V CUT NG3200 For deburring sheet metal 1-8mm. Includes: NG-3 handle, L holder and L3 blade. HOLDERS NG-1 Handle NG1000 NogaGrip-1 holds all S blades (3.2mm). Designed for maximum comfort in your hand . K Holder EL04003 Holds K blades with M3 screw. Length: 135mm. NG-3 Handle NG3000 NogaGrip-3 holds all blade holders. Designed for maximum comfort in your hand. L Holder EL07013 Holds L blades. Blades are held in a 3mm square hole and tightened with 4mm setscrew. Length: 131mm. UINOGA SIMPLY SOPHISTICATED

Open the catalog to page 1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:23.00pt "Arial", sans-serif; } .font5 { font:24.00pt "Arial", sans-serif; } .font6 { font:82.00pt "Arial", sans-serif; } .font7 { font:26.00pt "Impact", sans-serif; } .font8 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:74.00pt "Sylfaen", serif; } KEYWAY-BURR NG3300 Effectively removes burrs from internai and external keyways....

Open the catalog to page 2
