Modular holders

Product catalog summary

Overview: The document provides technical specifications and options for modular holders, specifically articulated arms, suitable for various applications. It highlights the availability of custom-made accessories and provides detailed measurements and specifications for different models.

Specifications: The document lists five different sizes of articulated arms: NF60003, DG60003, MG60003, MG70003, and MA60003. Each model is specified with measurements in millimeters, including internal thread sizes (M6, M8, M10 x 1.25), and dimensions D1, D2, L1, and L2. The weight of each model is also provided in kilograms.

Accessories: A variety of accessories are available, including universal swivel clamps, dovetail clamps, socket head screws, and various adaptors (e.g., 3/8” x M6, 1/4” x M6). Custom accessories can be requested with a minimum order of 500 pieces.

Key Measurements: The document provides detailed measurements for each model and accessory, ensuring compatibility and proper selection for specific applications. For example, the NF60003 model has a D1 of 56 mm and a weight of 0.210 kg.

Recommendations: Users are advised to choose the articulated arms and accessories that best fit their specific needs, considering the detailed specifications provided. Custom solutions are available for large orders.

Catalog excerpts

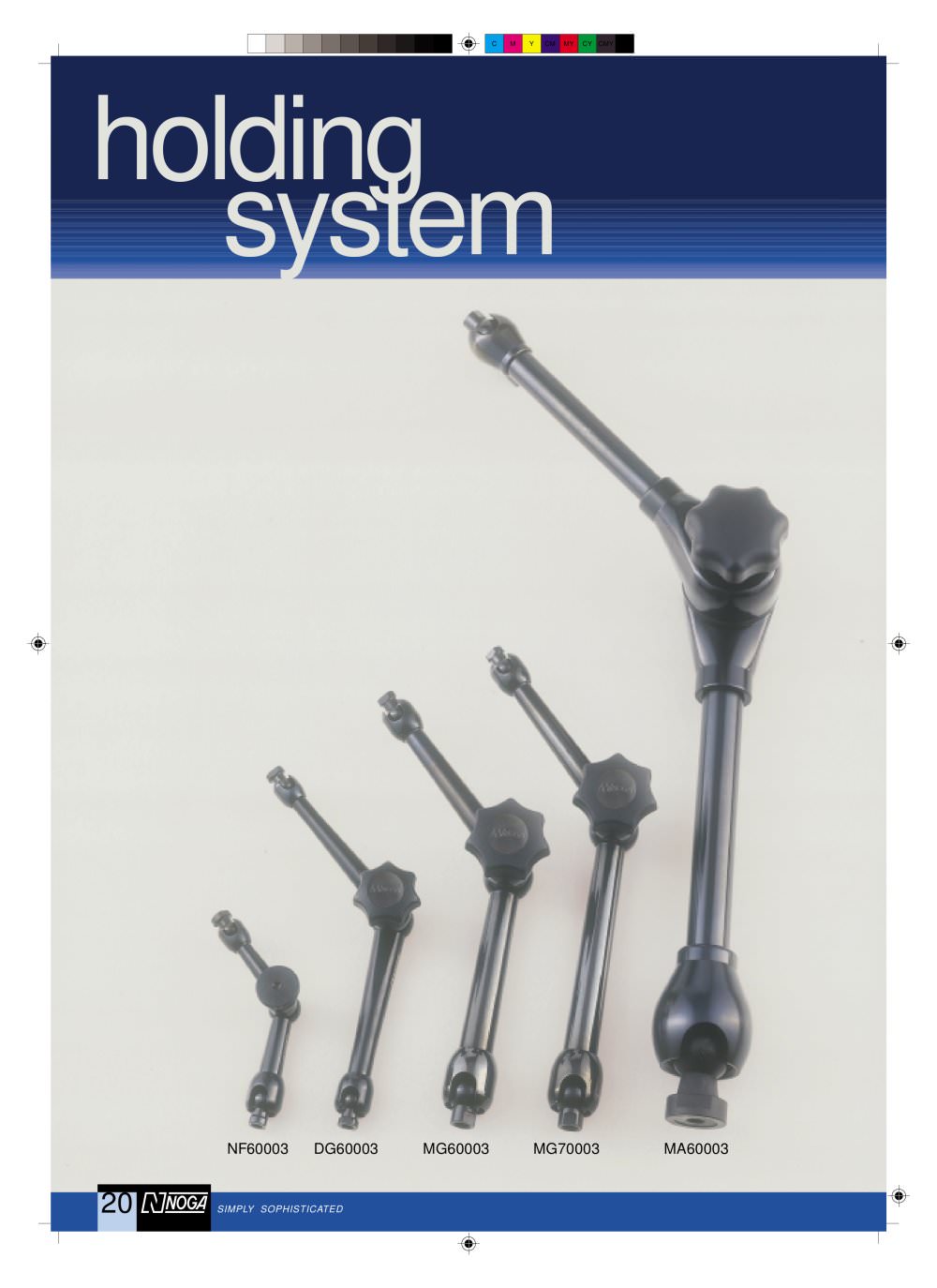

Five different sizes of articulated arms are offered for a wide range ofapplications.Choose the arms that fit your needs. A number of accessories are shown below. Custom-made accessories are available upon request. Minimumquantity 500 pcs. FA1400 FA1300 MA01252 clampPlastic fine adjustmentCamera holder2SM fine adjustment Camera nut1Ԕ clamp DG0125 > M675.7 M686214Dovetail 1/4"14 UniversalSwivel Clamp 501032301240Socket HeadScrew M6x16W1/4 M650.8 1/4 x M6 adaptor 3/8Ԕ x M6 adaptor 3/8 x M6 adaptor 3/8Ԕ x M8 adaptor AD6013 AD6010 AD6030 AD6031 AD8030 NF0125 > 4010.5 W1/4 W1/4 Int. threadD2Int. thread...
