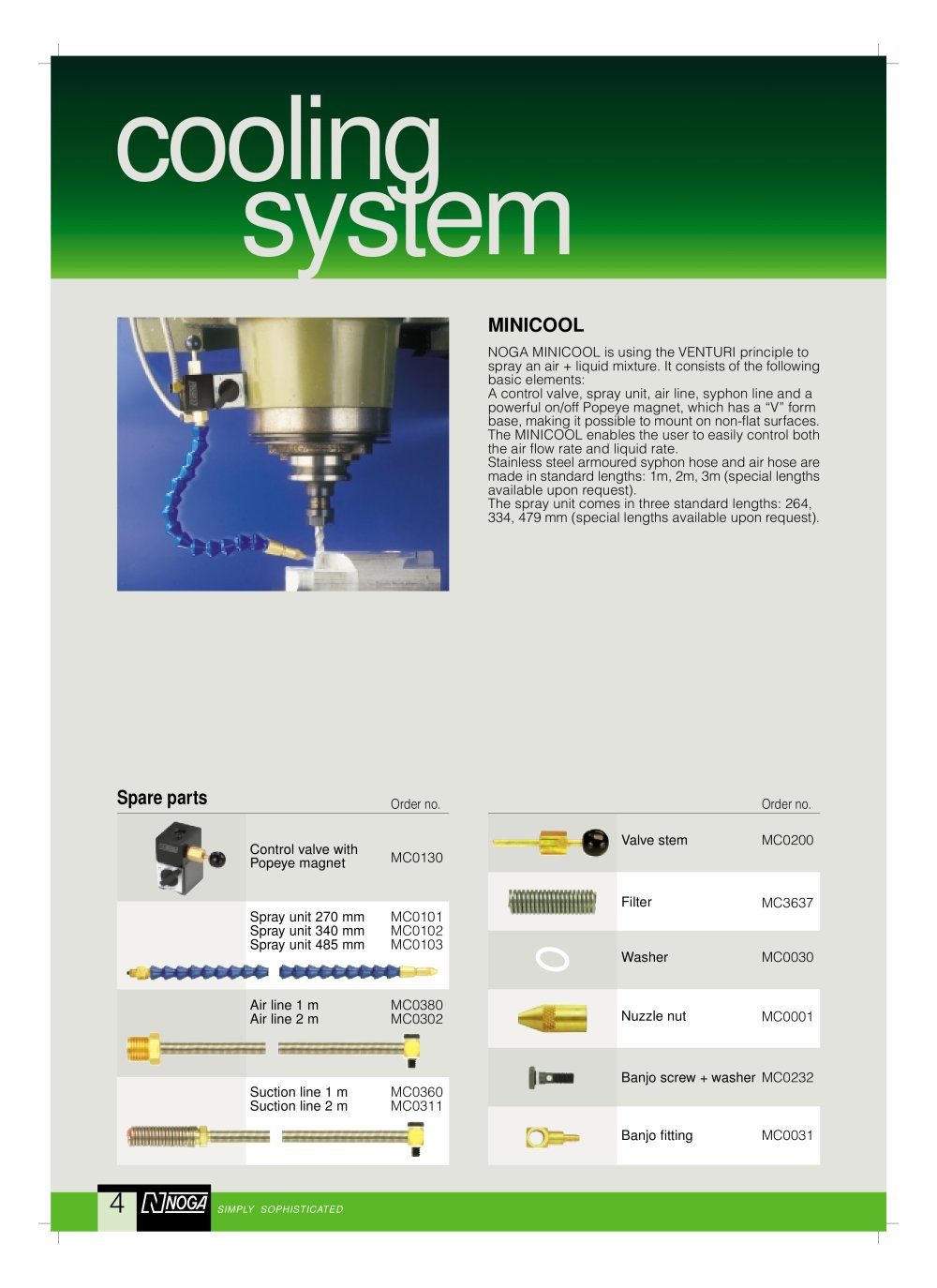

NOGA MINICOOL is using the VENTURI principle tospray an air + liquid mixture. It consists of the following basic elements: A control valve, spray unit, air line, syphon line and a powerful on/off Popeye magnet, which has a VӔ form base, making it possible to mount on non-flat surfaces. The MINICOOL enables the user to easily control both the air flow rate and liquid rate. Stainless steel armoured syphon hose and air hose are made in standard lengths: 1m, 2m, 3m (special lengths available upon request). The spray unit comes in three standard lengths: 264, 334, 479 mm (special lengths available upon request). > Order no. Order no. Control valve with Popeye magnet MC0130MC0101MC0102 MC0103 FilterWasherNuzzle nutBanjo screw + washerBanjo fitting Valve stem Suction line 1 mSuction line 2 m MC3637MC0200 Spray unit 270 mmSpray unit 340 mm Spray unit 485 mm MC0030MC0001MC0232MC0031 Air line 1 mAir line 2 m MC0380MC0302MC0360MC0311 >
