MINI SCRAPER

Product catalog summary

Overview: The document provides detailed specifications and descriptions of various scraping and deburring tools, ideal for tool and die makers. It includes information on handles, blades, and scrapers, highlighting their features, dimensions, and materials.

Specifications:

NG3700 Mini Scraper: Includes NG-3 handle, D holder, triangular mini scraper D50 blade, and hex key.
T120 Blade: Heavy-duty, double-ended, made of CR115 with hardness 58-60Rc, dimensions 7.4x120mm, and a 60° included angle.
SC1000 Scraper: Double-ended for longer tool life, includes Uni-handle and T120 triangular scraper.
SC1300 Handle: 12mm anodized handle with knurled locking collar, compatible with various scrapers, length 120mm.
NG3000 Handle: NogaGrip-3 designed for comfort, holds all blade holders.
EL05003 D Holder: Holds D50 and D66 blades, includes a 3mm setscrew and hex key, length 131mm.
UH1000 Handle: Unique handle for Noga T120 scraper blade.

Blades and Scrapers:

All blades have hardness 62-64Rc, except D55 Carbide (1400-1700 HV) and T80 CR115 (58-60Rc).
SC8000 Adjustable Scraper: Includes 12mm anodized handle and T80 double-ended triangular scraper.
NG3710 Internal Scraper: Ideal for cross-holes deburring, includes NG-3 handle, D holder, and D66 blade.

Additional Products:

YT1200 Adjustable Scraper: Ideal for various materials, includes YT handle and D75 H.S.S triangular mini scraper.
YT1100 Mini Scraper: Includes YT handle and T80 double-ended triangular medium scraper.
Diamond Needle Files: Swiss-made blanks with diamond particles, essential for tool and die shops, total length 140mm, coated length 70mm, grit size D126.

Product Sets:

YT3000: Includes 5 files, D75 HSS Triangular Scraper, T80 double-ended triangular scraper, and YT1000 handle.
YT3300: Includes 5 files and YT1000 handle.

Catalog excerpts

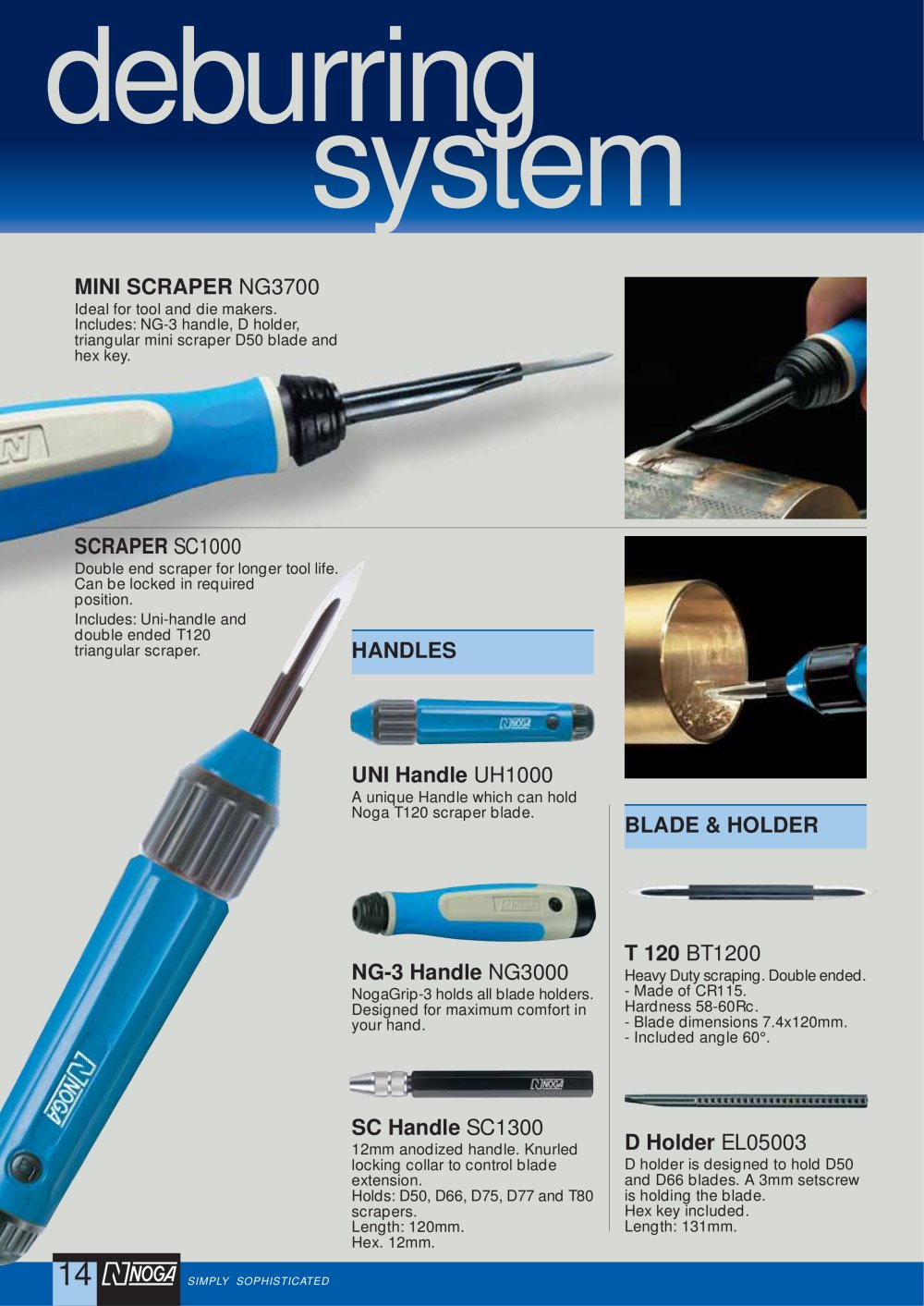

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:10.80pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Arial", sans-serif; } .font6 { font:14.00pt "Arial", sans-serif; } .font7 { font:82.00pt "Arial", sans-serif; } deburring system MINI SCRAPER NG3700 Ideal for tool and die makers. Includes: NG-3 handle, D holder, triangular mini scraper D50 blade and hex key. SCRAPER SC1000 Double end scraper for longer tool life. Can be locked in required position. Includes: Uni-handle and double ended T120 triangular scraper. HANDLES r UNI Handle UH1000 A unique Handle which can hold Noga T120 scraper blade. BLADE & HOLDER NG-3 Handle NG3000 NogaGrip-3 holds ail blade holders. Designed for maximum comfort in your hand. T 120 BT1200 Heavy Duty scraping. Double ended. - Made of CR115. Hardness 58-60Rc. - Blade dimensions 7.4x120mm. - Included angle 60°. SC Handle SC1300 12mm anodized handle. Knurled locking collar to control blade extension. Holds: D50, D66, D75, D77 and T80 scrapers. Length: 120mm. Hex. 12mm. D Holder EL05003 D holder is designed to hold D50 and D66 blades. A 3mm setscrew is holding the blade. Hex key included. Length: 131mm. ϏINOGA SIMPLY SOPHISTICATED

Open the catalog to page 1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial", sans-serif; } .font3 { font:81.00pt "Arial", sans-serif; } .font4 { font:70.00pt "Impact", sans-serif; } deburrin svsxem Adjustable Mini Scraper YT1100 The best mini scraper for tool and die makers. Includes: YT handle (YT1000) and D75 H.S.S triangular mini scraper (BD7501). Size: 75x2.5mm. Adjustable Scraper YT1200 YT Handle YT1000 The perfect grip on: Noga adjustable scrapers Needle files Pins Drills Quick change...

Open the catalog to page 3

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.20pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:22.00pt "Arial", sans-serif; } YT PRODUCTS DIAMOND NEEDLE FILES SETS The files are of Swiss made blanks electroplated with ultra high concentration of precisely graded diamond particles. A must for any tool and die shop, extruders, and repairs of hardened alloys and ceramic. Total length - 140 mm....

Open the catalog to page 4

MINI SCRAPER

MINI SCRAPER
