Light Duty 2.6mm Swivel blade

Light Duty 2.6mm Swivel blade

Product catalog summary

Product Overview
The document provides details on various deburring tools and accessories, specifically focusing on the MAGIC BURR and TELE BURR systems. These tools are designed for deburring tasks across different materials and hard-to-reach locations.

MAGIC BURR Systems

MAGIC BURR 2 NG2002: Suitable for most deburring jobs, includes NG-2 handle and N1, N2 blades.
MAGIC BURR 4 NG2004: Similar to NG2002 but includes additional blades (N3 and N6) for cross holes in difficult-to-reach places.

Handles and Holders

NG-3 Handle NG3000: Compatible with all blade holders, designed for comfort, with spare blade storage.
NG-2 Handle NG2000: Holds N blades (2.6mm), designed for comfort, with spare blade storage.
N Holder EL01033: Holds 2.6mm blades, telescopes from 25-115mm, total length 131mm.

TELE BURR NG3002
Includes NG-3 handle, N holder, N1, and N2 blades. Known for its popularity and versatility.

Blades
Various blades are available, made of high-speed steel (H.S.S.) with hardness ranging from 62-64Rc, except for N10 Cobalt which is 65-67Rc. Blades are designed for different materials and applications, including steel, aluminum, plastic, brass, cast iron, and stainless steel.

Key Features

Blades are replaceable and designed for long-lasting use.
Handles are ergonomically designed for maximum comfort.
Tools are suitable for both internal and external burrs, as well as cross holes.

Applications
These tools are effective on a variety of materials, including steel, aluminum, plastic, brass, cast iron, and stainless steel, and are designed to handle both straight and curved edges, as well as deep and cross holes.

Catalog excerpts

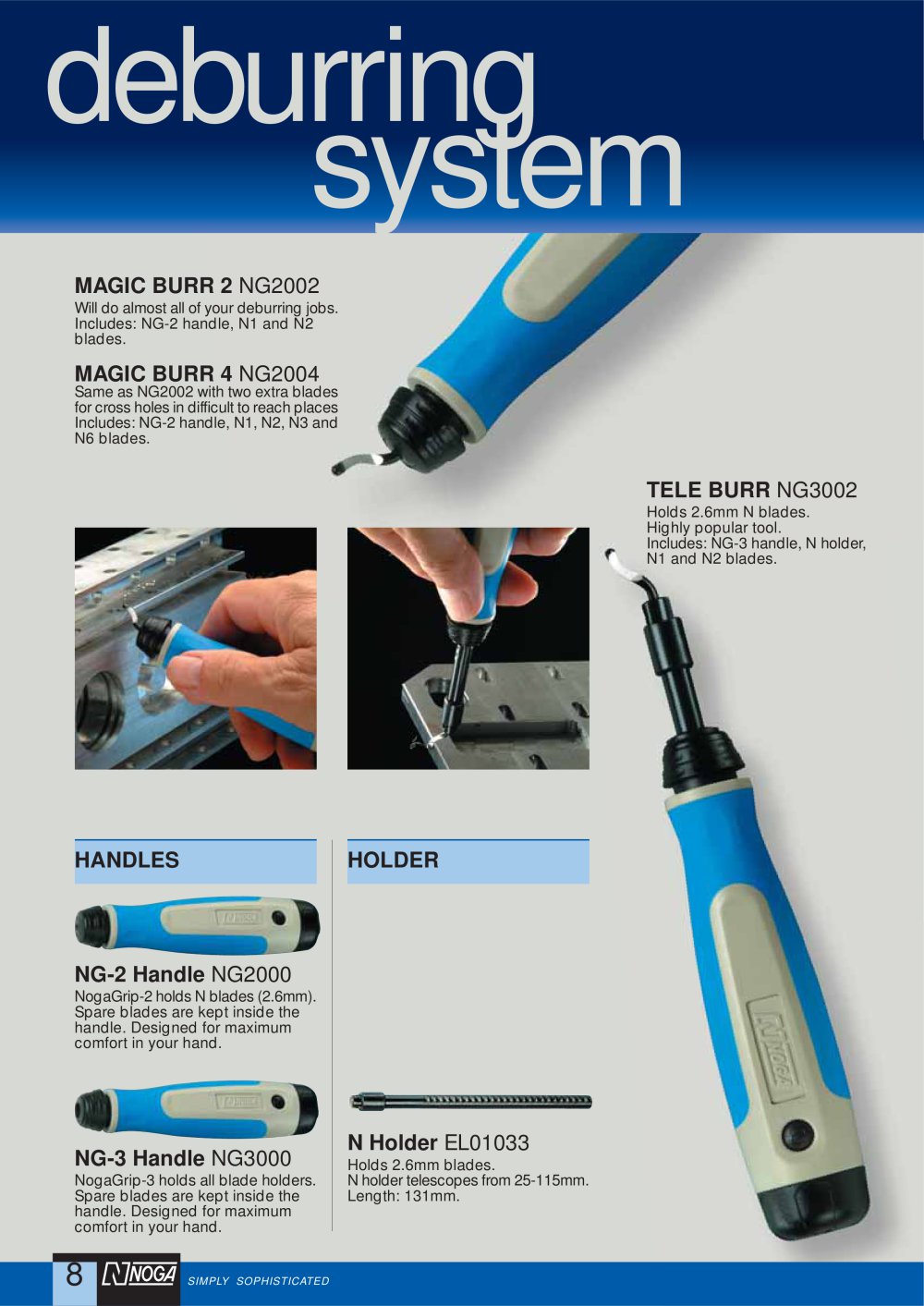

deburring system MAGIC BURR 2 NG2002 Will do almost all of your deburring jobs. Includes: NG-2 handle, N1 and N2 blades. Same as NG2002 with two extra blades for cross holes in difficult to reach places Includes: NG-2 handle, N1, N2, N3 and N6 blades. TELE BURR NG3002 Holds 2.6mm N blades. Highly popular tool. Includes: NG-3 handle, N holder, N1 and N2 blades. NG-2 Handle NG2000 NogaGrip-2 holds N blades (2.6mm). Spare blades are kept inside the handle. Designed for maximum comfort in your hand. NG-3 Handle NG3000 NogaGrip-3 holds all blade holders. Spare blades are kept inside the handle. Designed for maximum comfort in your hand. SIMPLY SOPHISTICATED N Holder EL01033 Holds 2.6mm blades. N holder telescopes from 25-115mm. Length: 131mm.

Open the catalog to page 1

Deep Holes Cross Holes Straight Edge Curved Edge TEDDYBURR TB1000 Design for hard to reach locations. Blade is replaceable. Steel housing for long life of handle. Includes: 8mm painted hexagonal aluminum handle and N1 blade. All blades below are made of H.S.S.. Hardness 62-64Rc except N10 Cobalt 65-67Rc Incl. angle Pkg. weight (degrees) (grams) Package quantity steel, aluminum and plastic abrasive material brass and cast iron stainless steel plastic and hard materials cross holes in difficult to reach places L/R - for left and right hand users. SIMPLY SOPHISTICATED

Open the catalog to page 2

Light Duty 2.6mm Swivel blade

Light Duty 2.6mm Swivel blade
