COUNTERSINK

Product catalog summary

Overview: The document provides detailed specifications and descriptions of various deburring and countersinking tools, focusing on the COUNTERSINK NG3100 and related products. These tools are designed for chamfering and deburring holes and edges in various materials.

Specifications:

COUNTERSINK NG3100: Standard tool for countersinking, useful for chamfering deep holes. Includes NG-3 handle, C holder, and C20 countersink (20mm).
Handles and Holders:
- NG-3 Handle NG3000: Designed for comfort, holds all blade holders.
- C Holder CH3000: Holds C12, C20, and C30 countersinks, features an M7 external thread and hexagonal cross-section to prevent rotation.
Blades: Made of high-speed steel (H.S.S.) with hardness 62-64Rc. Various models available for different ranges and angles.

Procedures:

Blade Replacement: Pull the aluminum knob out of the handle to access the hexagonal key for blade replacement.

Product Variants:

MINI REVERSIBLE RC1000: For deburring both sides of holes, range 3-5.5mm.
MEDIUM REVERSIBLE RC2000: Range 5-10mm.
LARGE REVERSIBLE RC2200: Range 10-22mm.
H.D. EXT. ROTODRIVE NG3500: Chamfers O.D. on bars and tubes, range 8-28mm.
EXT. ROTODRIVE NG1700: Quick chamfering for O.D. on various materials, range 4-18mm.

Key Features:

Tools are designed for maximum comfort and efficiency.
Patented designs for enhanced performance.
Wide range of tools and blades to accommodate different sizes and materials.

Catalog excerpts

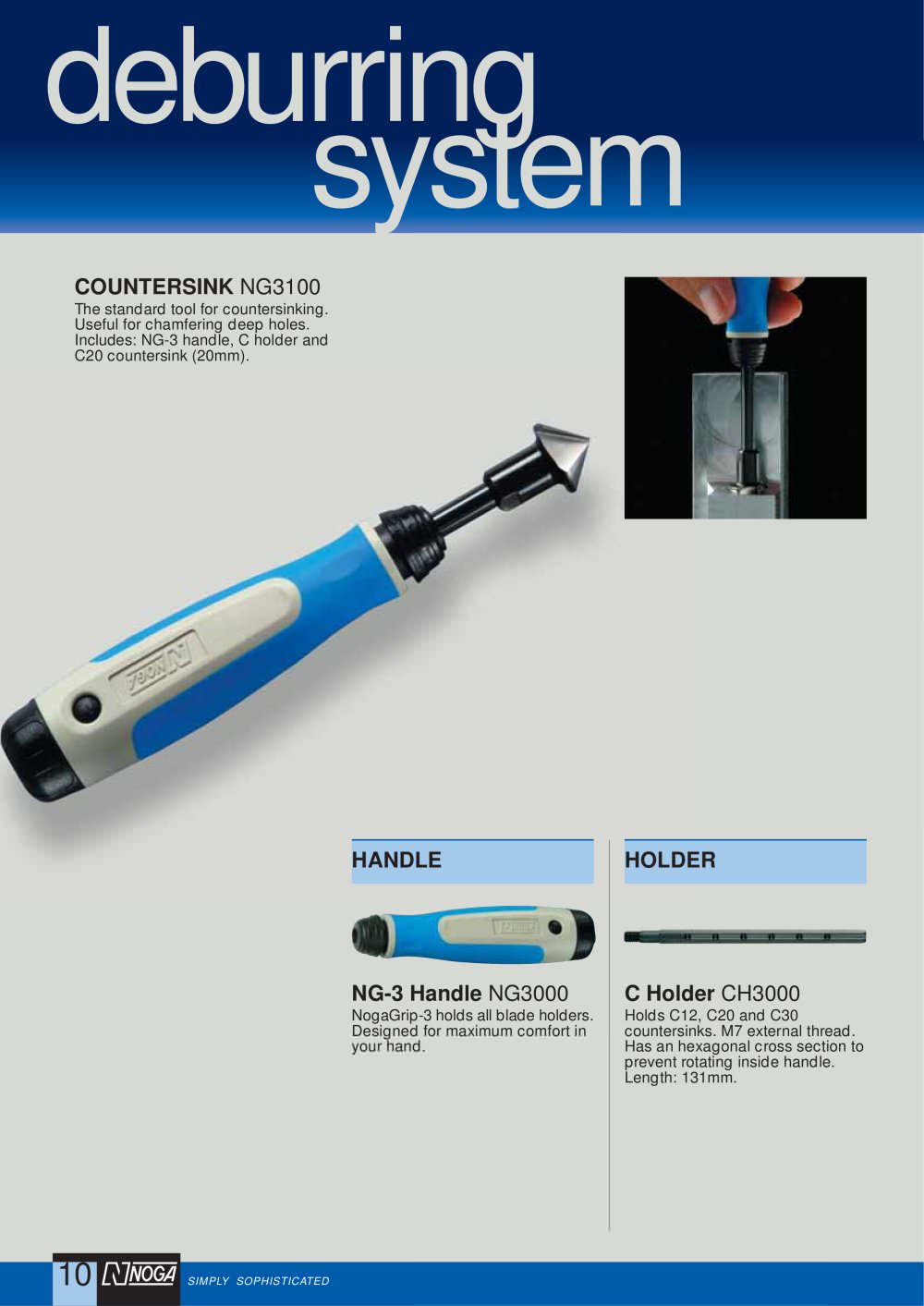

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.10pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:24.00pt "Arial", sans-serif; } .font6 { font:81.00pt "Arial", sans-serif; } .font7 { font:56.00pt "Verdana", sans-serif; } deburrin svstem COUNTERSINK NG3100 The standard tool for countersinking. Useful for chamfering deep holes. Includes: NG-3 handle, C holder and C20 countersink (20mm). HANDLE HOLDER NG-3 Handle NG3000 NogaGrip-3 holds all blade holders. Designed for maximum comfort in your hand. C Holder CH3000 Holds C12, C20 and C30 countersinks. M7 external thread. Has an hexagonal cross section to prevent rotating inside handle. Length: 131mm. To RlNOGA SIMPLY SOPHISTICATED
