CONVEXED CERA-CUT

CONVEXED CERA-CUT

Product catalog summary

Blade Removal and Insertion Procedures
To remove the blade, first remove the cap from the rear of the tool, insert it into the round hole, turn 90°, and pull the blade out. To insert a blade, place it into the groove and secure it by lightly tapping the handle against a solid surface.

CERA-CUT Handle CR2100
This unique plastic handle holds the blade with a self-gripping taper and includes storage space for spare blades. It measures 135mm in length.

Blade Specifications

Convexed CR2200: Ideal for surface cleaning and parting line deflashing. Ceramic material with 1250HV hardness, 90° angle, weight 9 grams.
Concaved CR2500: Suitable for curved edges and small ridges. Ceramic material with 1250HV hardness, 90° angle, weight 9 grams.

Handle and Blade Combinations

Concaved CERA-CUT CR2300: Suitable for all plastic materials and soft metals, ideal for curved edges and small ridges. Includes a 15mm concaved radius blade.
Convexed CERA-CUT CR2000: Suitable for all plastic materials and soft metals, ideal for surface scraping and parting line deflashing. Includes a 250mm convexed radius blade.

NOGA Tools

NOGA HARD CUT TOOL NC5200: Designed for deburring hard abrasive plastics, includes NogaCut handle NC5000 and 75° CR6100 blade.
NOGA SOFT CUT TOOL NC5100: Designed for deburring soft abrasive plastics, includes NogaCut handle NC5000 and 65° CR6000 blade.

CERAMIC DOUBLE BURR DB5000
Ideal for deburring both sides of a workpiece simultaneously, with a range of 1-11 mm. Includes a V-shaped ceramic blade mounted in an ergonomically designed handle with a safety guard.

CERA-CUT CR1100
Designed for deburring plastics and other soft materials, featuring an extremely long life. It is a disposable tool with a 250mm convexed radius ceramic blade and a soft grip handle.

Catalog excerpts

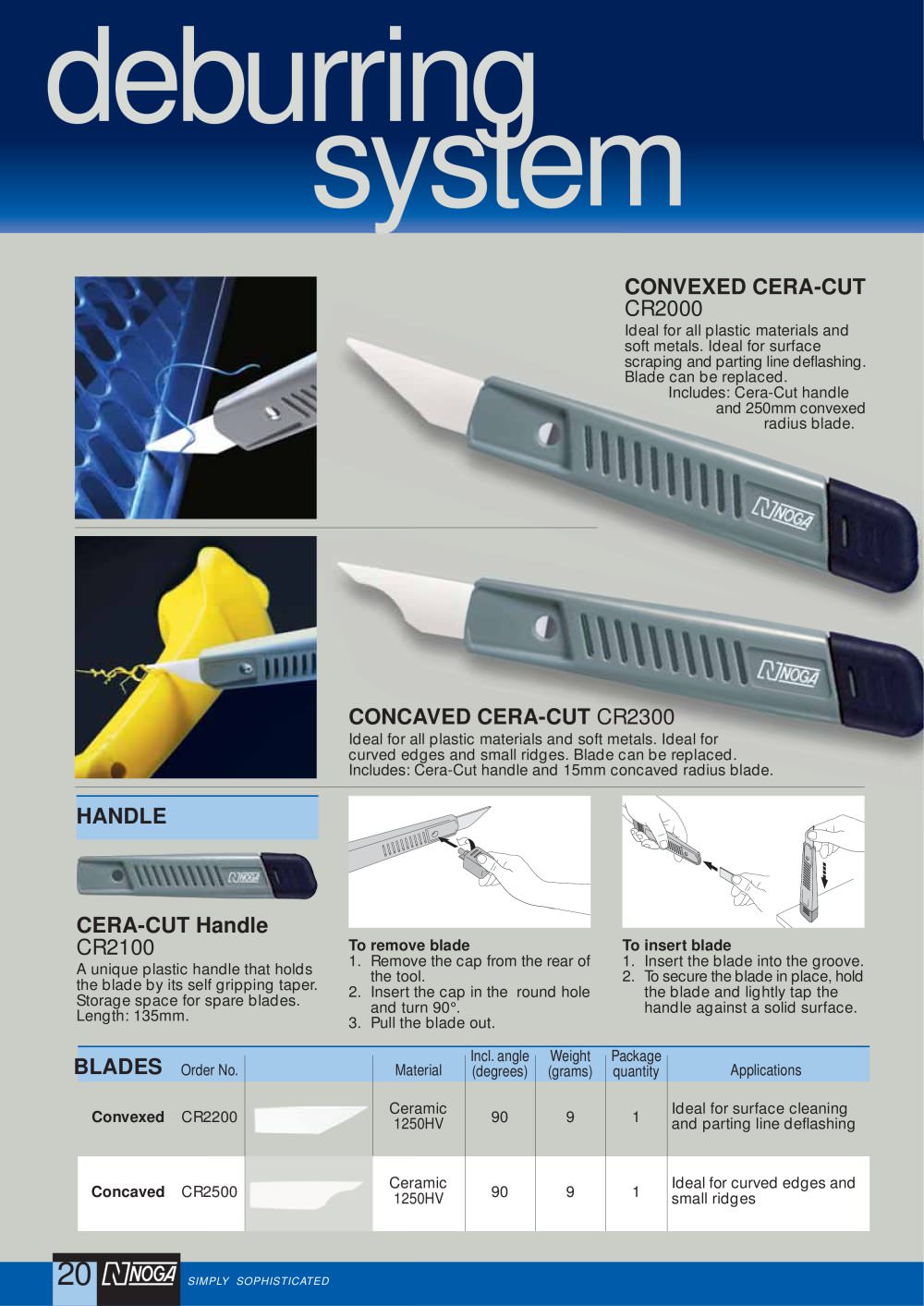

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:82.00pt "Arial", sans-serif; } deburring sysxem CONVEXED CERA-CUT CR2000 Idal for ail plastic materials and soft metals. Idal for surface scraping and parting line deflashing. Blade can be replaced. Includes: Cera-Cut handle and 250mm convexed radius blade. CONCAVED CERA-CUT CR2300 Ideal for all plastic materials and soft metals. Ideal for curved edges and small ridges. Blade can be replaced. Includes: Cera-Cut handle and 15mm concaved radius blade. HANDLE CERA-CUT Handle CR2100 A unique plastic handle that holds the blade by its self gripping taper. Storage space for spare blades. Length: 135mm. To remove blade 1. Remove the cap from the rear of the tool. 2. Insert the cap in the round hole and turn 90°. 3. Pull the blade out. To insert blade 1. Insert the blade into the groove. 2. To secure the blade in place, hold the blade and lightly tap the handle against a solid surface. BLADES Order No. Material Incl. angle Weight Package (degrees) (grams) quantity Ceramic 90 1 1250HV 9 Ceramic 90 1 1250HV 9 Applications Ideal for surface cleaning and parting line deflashing Convexed CR2200 Concaved CR2500 Ideal for curved edges and small ridges RlN0GA\ SIMPLY SOPHISTICATED

Open the catalog to page 1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.20pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Arial", sans-serif; } .font6 { font:22.00pt "Arial", sans-serif; } Holes Thin Sheet Metal Parting Line Flash H Straight Edge Surface Scraping CERAMIC TOOLS NOGA SOFT CUT TOOL NC5100 Ideal for deburring soft abrasive plastics Includes: NogaCut handle NC5000 and NogaCut blade 65° CR6000. NOGA...

Open the catalog to page 2

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.20pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:23.00pt "Arial", sans-serif; } .font6 { font:82.00pt "Arial", sans-serif; } deburrin g svs m CERA-CUT CR1100 Ideal for deburring plastics and other soft materials. Extremely long life. Disposable tool. Includes: 250mm convexed radius ceramic blade, mounted in ergonomically held handle with soft grip....

Open the catalog to page 3
