BASES
BASES
- Magnetic Bases: Eight different magnets are available, ranging from the smallest switchable on/off magnet with a force of 320N to a large magnetic base with a force of 1300N. A 350N vacuum base is also offered.
- Clamps: Five clamps are available, including 4” and 3” clamps, with some featuring plastic covers.
- On/Off Magnets: Various models are listed with dimensions and force specifications. For example, the DG0039 model has dimensions of 55x120x50 mm and a force of 1000N.
- Vacuum Base: The DG0040 model has a diameter of 92 mm and a force of 350N.
- All measurements are in millimeters unless otherwise specified.
- Thread sizes vary across products, including M5, M8, M10 x 1.25, and others.
- Weight of products ranges from 0.230 kg to 2.000 kg.
- Fine adjustment options are available for certain on/off magnets.
- Multi-thread options are available for specific models, providing versatility in application.
Catalog excerpts

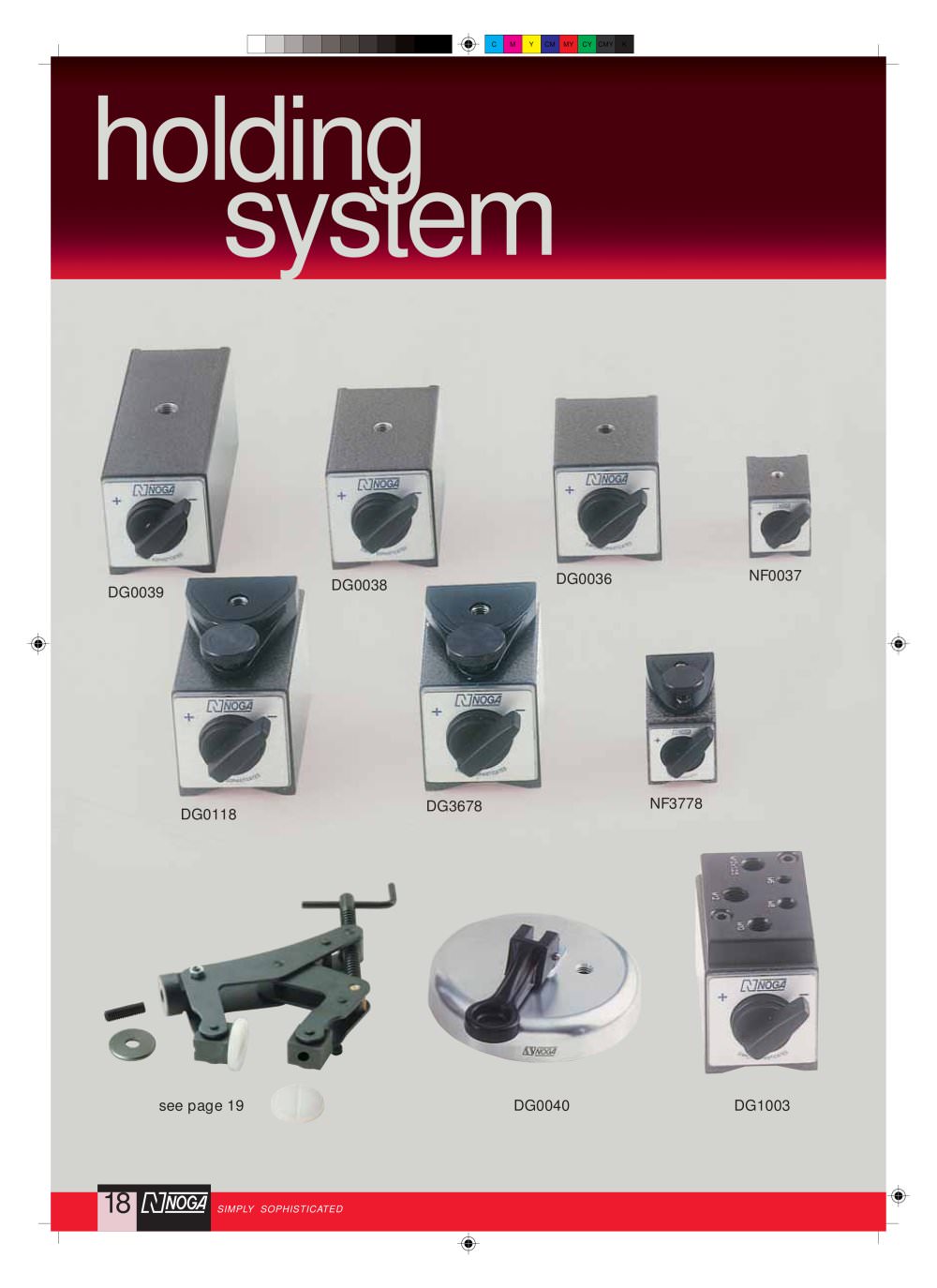

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } nrni10 DG3678 NF3778 DG0118
Open the catalog to page 1
table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:23.00pt "Arial", sans-serif; } C M Y CM MY CY CMY K NOGA bases Eight diffrent magnets ranging from the world's smallest switchable on/off (320N) to a large magnetic base (1300N), a 350N vacuum base and 5 clamps are offered for our customers' choice. All...
Open the catalog to page 2All Noga Engineering catalogs and technical brochures
