NODKA Automation Technology
NP-6140 Series Datasheet

NP-6140 Series Datasheet

Product catalog summary

Overview
The NP-6140 series is a flexible automation PC platform designed for motion and automated production control, supporting Intel Core 12th to 14th generation CPUs with various configurations for industrial applications.

Specifications

CPU: Supports Intel Core i3/i5/i7/i9 LGA1700 CPUs with a TDP of 65W.
Memory: Up to 32GB DDR4-3200MT/s via 2 SO-DIMM slots.
Storage: M.2 slots (2242 and 2280) and a 2.5" SATA slot.
USB Ports: 4 x USB3.0 and 1 x USB2.0 Type-A.
COM Ports: RS232 and RS485 with a max baud rate of 115.2kbit/s.
Ethernet: Up to 7 Intel GbE LAN controllers.
Display: VGA up to 1920x1080@60Hz and HDMI up to 3840x2160@30Hz.
Expansion: 1 x Full-size PCIe mini slot with SIM card holder.
Power: DC12~24V input with protection features, max consumption of 120W or 220W for MVS model.
Chassis: Aluminum-magnesium alloy, wall-mounted or DIN-Rail fixing style.
Environment: Operating temperature from -20ºC to 60ºC, storage temperature from -40ºC to 80ºC.
EMC and Safety: Complies with CE EMC and EN IEC 62368-1 standards.

Model Variants

NP-6140: Basic model with standard features.
NP-6140-16I16O: Includes 16 isolation DI and DO channels.
NP-6140-EX01: Additional RS232/RS485 ports, audio, and optional CAN bus.
NP-6140-MVS: Features PWM light control and higher power consumption.

Options and Accessories

WiFi and 3G/4G modules via mini PCIe.
Various CPU, memory, and storage configurations.
Mounting options include DIN-Rail and wall-mounted brackets.

Ordering Information
Each model has a specific part number and configuration options for customization based on application requirements.

Environmental Specifications

Relative Humidity: 95% at 40°C (Non-condensing).
Operating Vibration: 5~500Hz, 3Grms with SSD and Wall-mounted, compliant with IEC60068-2-64.
Operating Shock: 30G peak acceleration (11ms duration) with SSD and Wall-mounted, compliant with IEC60068-2-27.

Compliance and Safety

EMC: CE EMC, compliant with EN 55011, EN 55032, EN55035, EN 61131-2, EN IEC 61000-3-2, EN IEC 61000-6-2, EN IEC 61000-6-4, FCC Class A.
Safety: Compliant with EN IEC 62368-1.

Technical Specifications

LAN: 6 x Intel GbE LAN controller.
USB Ports: 4 x USB3.0, 2 x USB2.0, 1 x USB2.0 Type A.
Serial Ports: 1 x RS232, 1 x RS485, 1 x RS232/485.
Remote Switch: 1 x Remote switch.
Light Control: 4 x PWM light control with external trigger input.
Digital I/O: 8 x isolation DI (NPN/PNP), 8 x isolation DO (NPN or PNP).
Display Ports: VGA and HDMI.
Expansion Slot: 1 x miniPCIE, supports WiFi, 3G/4G modules.
Power Supply: DC12~24V with overcurrent, overvoltage, and polarity inverse protection.
Mounting Options: Wall-mounted or DIN-Rail.

Product Description
Model: NP-6140-MVS
Features: Includes various ports and supports multiple display and power input options.

Ordering Information
Part No.: B73.61400.0G.0001

Dimensions and Interfaces
Includes power button, VGA display, 4 x GbE LAN, 4 x USB3.0, LEDs, DC IN 12V~24V, HDMI display.

Parts Information
Various terminals and mounting accessories available.

Optional Components

CPUs: Range from i3 to i9 series.
Memory: DDR4 -3200MHz options.
Storage: M.2 and SATA SSD options.
Wireless Modules: WiFi and 3G/4G modules.
Mounting: DIN-Rail option.

Note: Additional system certificates may be required for optional parts in certain regions. Contact NODKA for compliance details.

Catalog excerpts

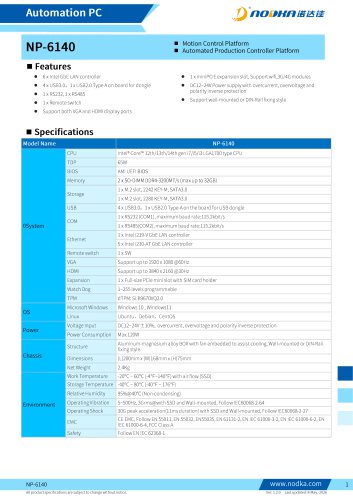

Motion Control PlatformAutomate dProductio nController Platform■ Features• 6x Intel GbE LAN controller • 4xUSB3.0, lxUSB2.0TypeAon board fordongle • 1 x RS232,1 x RS485• 1 x Remote switch• Support both VGA and HDMI display ports • lx miniPCIE expansion slot, Support wifi,3G/4G modules • DC12-24V Power su pply with overcurrent, overvoltage and polarity inverse protection • Support wall-mounted or DIN-Rail fixingstyle■ Specifications ModelName All droOeuanpecifitotiontoresuejecUtoannngewithentnoOun. Ver: 1.2.0 Last updated: 8-May.

Open the catalog to page 1

■ Dimensions (Unit: mm) Power on Button' LEDs 1 x RS232 1 x RS485 Antenna installation hole ■ Ordering Information Part No.

Open the catalog to page 2

Automation PCOptions Parts ■ Parts information Narne Note: If some optional parts are offered with the system, additional system certificates may be required in certain regions/countries. Pleasecontact NODKAforcertificatecompliance.

Open the catalog to page 3

Motion Control PlatformAu^tc^mate dPceduclCo nController Platform■ Features 6xlnt^e^lt0dEL^AN(^onC'CD[p^ti 16 x isolation Dl (NPN/PNP), 16 x isolation DO (NPN or PNP) Support both VGA and HDMI display ports • lx miniPCIE expansion slot, Support wifi,3G/4G modules • DC12-24V Power su pply with overcurrent, overvoltage and polarity inverse protection • Support wall-mounted or DIN-Rail fixingstyle All proOdChtpecifitotionionesuejecttohnnngewichentnoCica. Ver: 1.2.0 Last updated: 8-May.-2026

Open the catalog to page 4

■ Dimensions (Unit: mm) ■ Interfaces: Antenna installation hole DOmod eswitch ■ Ordering Information Part No.

Open the catalog to page 5

Note: If some optional parts are offered with the system, additional system certificates may be required in certain regions/countries. Please contact NODKAfor certificate compliance.

Open the catalog to page 6

Motion Control PlatformAutomate dProductio nController Platform■ Features • 7x Intel GbE LAN controller • 8 x isolation Dl (NPN/PNP), 8 x isolation DO (NPN or PNP) • Support both VGA and HDMI display ports • lx miniPCIE expansion slot, Support wifi,3G/4G modules • DC12-24V Power supply with overcurrent, overvoltage and • Support wall-mounted or DIN-Rail fixingstyle All dtoOeuatpecifitotiontorpsuejecUtoaanngewithentnoOun. Ver: 1.2.0 Last updated:

Open the catalog to page 7

◼ Interfaces: Antenna installation hole Power on Button LEDs 1 x RS232 1 x RS485 1 x SW 4 x GbE LAN 4 x USB3.0 VGA display HDMI display DC IN12V~24V ◼ Ordering Information Part No. B73.61400.EX.0001 Description CPU: NULL, RAM: NULL ,M.2:NULL , SATA:NULL, 2x RS232,4 x RS485, 7x LAN, 4 x USB3.0, 2 x USB2.0, 1 x Mic in, 1 x Line out, 8 x DI, 8 x DO, 2 x CAN(Optional), HDMI/VGA ports, display 12-24V Power input

Open the catalog to page 8

Note: If some optional parts are offered with the system, additional system certificates may be required in certain regions/countries. Please contact NODKAfor certificate compliance.

Open the catalog to page 9

Motion Control PlatformAutomate dProductio nController Platform■ Features • 6x Intel GbE LAN controller • 4x PWM light control support external trigger input • 8 x isolation Dl (NPN/PNP), 8 x isolation DO (NPN or PNP) • Support both VGA and HDMI display ports • lx miniPCIE expansion slot, Support wifi,3G/4G modules • DC12-24V Power su pply with overcurrent, overvoltage and polarity inverse protection • Support wall-mounted or DIN-Rail fixingstyle All droOeuanpecifitotiontoresuejecUtoannngewithentnoOun. Ver: 1.2.0 Last updated: 9-

Open the catalog to page 10

■ Dimensions (Unit: mm) ■ Ordering Information Part Nc.

Open the catalog to page 11

Open the catalog to page 12
