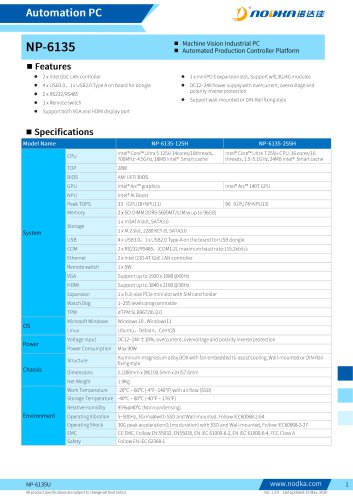

NP-6135 Ultra Datasheet

NP-6135 Ultra Datasheet

Product catalog summary

Overview: The NP-6135 series consists of Machine Vision Industrial PCs designed for automated production control, featuring high-performance Intel® Core Ultra processors, Intel® Arc graphics, and Intel® AI Boost for enhanced computing capabilities.

Specifications:

CPU Options: Intel® Core Ultra 5 125H (14 cores/18 threads) and Intel® Core Ultra 7 255H (16 cores/16 threads).
Memory: Supports up to 96GB DDR5-5600MT/s.
Storage: Includes 1 x mSATA slot and 1 x M.2 slot, both SATA3.0 compatible.
Connectivity: Features 2 x Intel GbE LAN controllers, multiple USB ports, RS232/RS485 ports, and HDMI/VGA display support.
Power Supply: DC12~24V input with protection against overcurrent, overvoltage, and polarity inversion.
Chassis: Constructed from aluminum-magnesium alloy, supports wall-mounted or DIN-Rail installation.
Environmental Tolerance: Operates in temperatures from -20ºC to 60ºC and can withstand vibrations and shocks as per IEC standards.

Models and Features:

NP-6135-125H and NP-6135-255H: Basic models with essential connectivity and display options.
NP-6135-H1 and NP-6135-H1B: Enhanced models with additional PoE LAN controllers, PWM light control, and more digital I/O options.
NP-6135-8PoE: Advanced model featuring 8 PoE LAN controllers for extensive network connectivity.

Compliance and Safety: The systems comply with CE EMC, FCC Class A, and safety standards EN IEC 62368-1.

Ordering Information: Various configurations are available, with options for memory, storage, and additional modules like WiFi and 3G/4G.

Environmental and Safety Standards: The systems are designed to operate in temperatures ranging from -20ºC to 60ºC and can be stored between -40ºC and 80ºC. They comply with EMC standards (EN 55032, EN55035, etc.) and safety standards (EN IEC 62368-1).

Options and Accessories: Optional parts include memory upgrades, mSATA and M.2 SSDs, WiFi and 3G/4G modules, and mounting options. Specific part numbers and specifications for these accessories are provided.

Key Features: The NP-6135-CAN2 model includes additional CAN2.0 bus interfaces and supports a range of operating systems including Windows 10/11 and various Linux distributions. The systems feature Intel Arc graphics and AI Boost capabilities, with peak performance metrics provided.

Dimensions and Interfaces: Detailed dimensions and interface options are listed, including power buttons, display ports, and network interfaces.

Notes: The document notes that specifications are subject to change and advises contacting NODKA for compliance information regarding optional parts.
