Pearl™ Solid-State Laser Pumping Series
3Pages

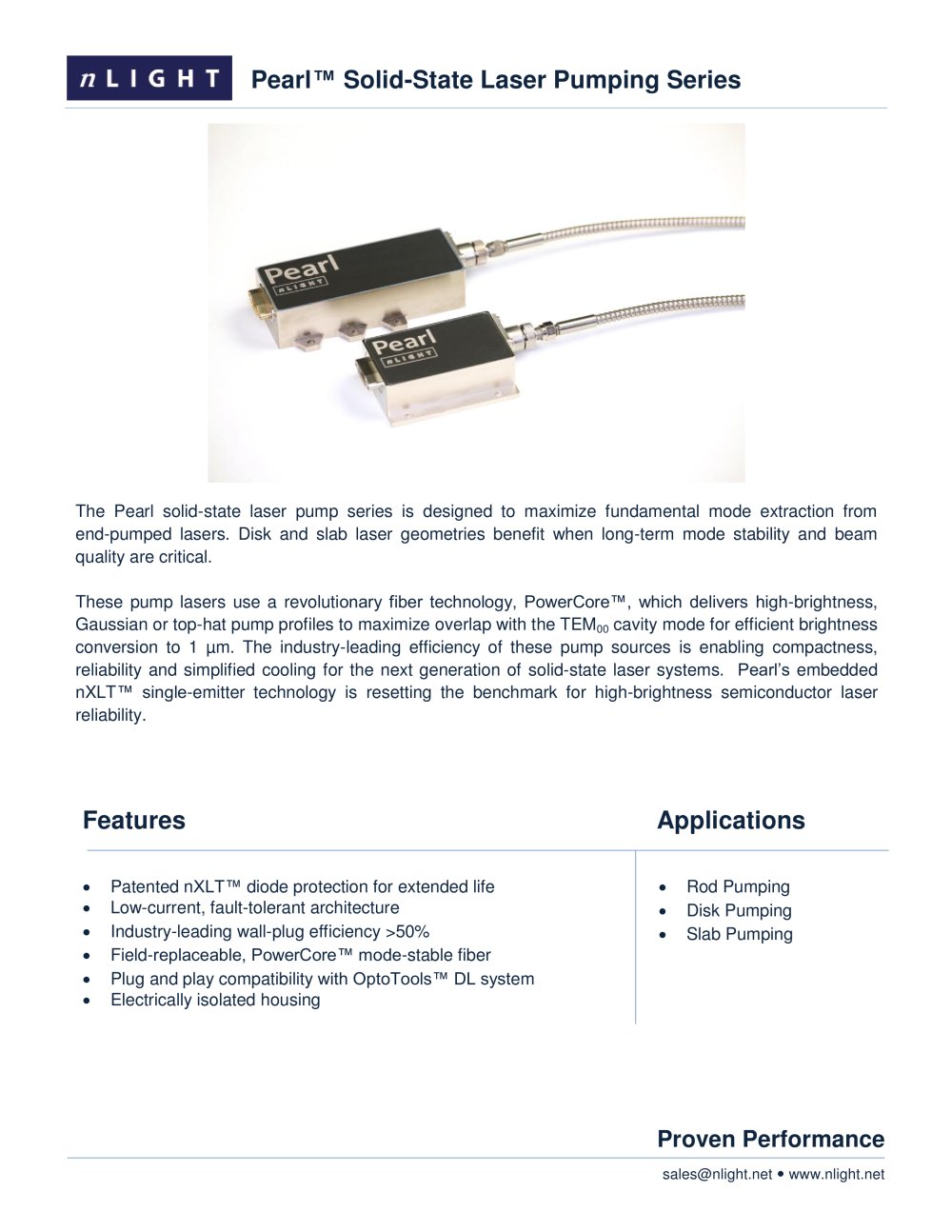

sales@nlight.net „H www.nlight.net Proven Performance Pearl™ Solid-State Laser Pumping Series The Pearl solid-state laser pump series is designed to maximize fundamental mode extraction from end-pumped lasers. Disk and slab laser geometries benefit when long-term mode stability and beam quality are critical. These pump lasers use a revolutionary fiber technology, PowerCore™, which delivers high-brightness, Gaussian or top-hat pump profiles to maximize overlap with the TEM00 cavity mode for efficient brightness conversion to 1 ìm. The industry-leading efficiency of these pump sources is enabling compactness, reliability and simplified cooling for the next generation of solid-state laser systems. Pearl’s embedded nXLT™ single-emitter technology is resetting the benchmark for high-brightness semiconductor laser reliability. Features Applications „h Patented nXLT™ diode protection for extended life „h Low-current, fault-tolerant architecture „h Industry-leading wall-plug efficiency >50% „h Field-replaceable, PowerCore™ mode-stable fiber „h Plug and play compatibility with OptoTools™ DL system „h Electrically isolated housing „h Rod Pumping „h Disk Pumping „h Slab Pumping

sales@nlight.net „H www.nlight.net Proven Performance Pearl™ Solid-State Laser Pumping Series Typical Device Performance Package P10 P16 Optical Wavelength nm 80x / 88x / 9xx Wavelength tolerance nm ± 3 CW output power W 50 / 60 / 70 100 / 110 / 120 Fiber core diameter ìm 400, 600 @ 0.16NA 800 @ 0.13NA 400, 600 @ 0.16NA Fiber length m 2.0, 3.0, 5.0 Slope efficiency W / A 10.5 17 Electrical Power conversion efficiency % 50 / 54 / 58 Threshold current A 1.0 / 1.0 / 0.6 Operating current A 5.8 7.0 Operating voltage V 17 28 Series resistance Ù 0.3 0.4 Mechanical Storage temperature range2 °C...

sales@nlight.net „H www.nlight.net Proven Performance Pearl™ Solid-State Laser Pumping Series Package Dimensions * 800um fiber 0.13NA configuration increases the length of P10 Package 10.06 mm CFR Regulation These components do not comply with the federal regulation (Title 21 CFR, Chapter 1, Subchapter J) as administered by the Center for Device and radiological Health. Purchaser acknowledges that their products must comply with these regulations before they can be sold to an end-use. Copyright © 2008 nLIGHT. All rights reserved. Notice nLIGHT continually improves its products to provide...
