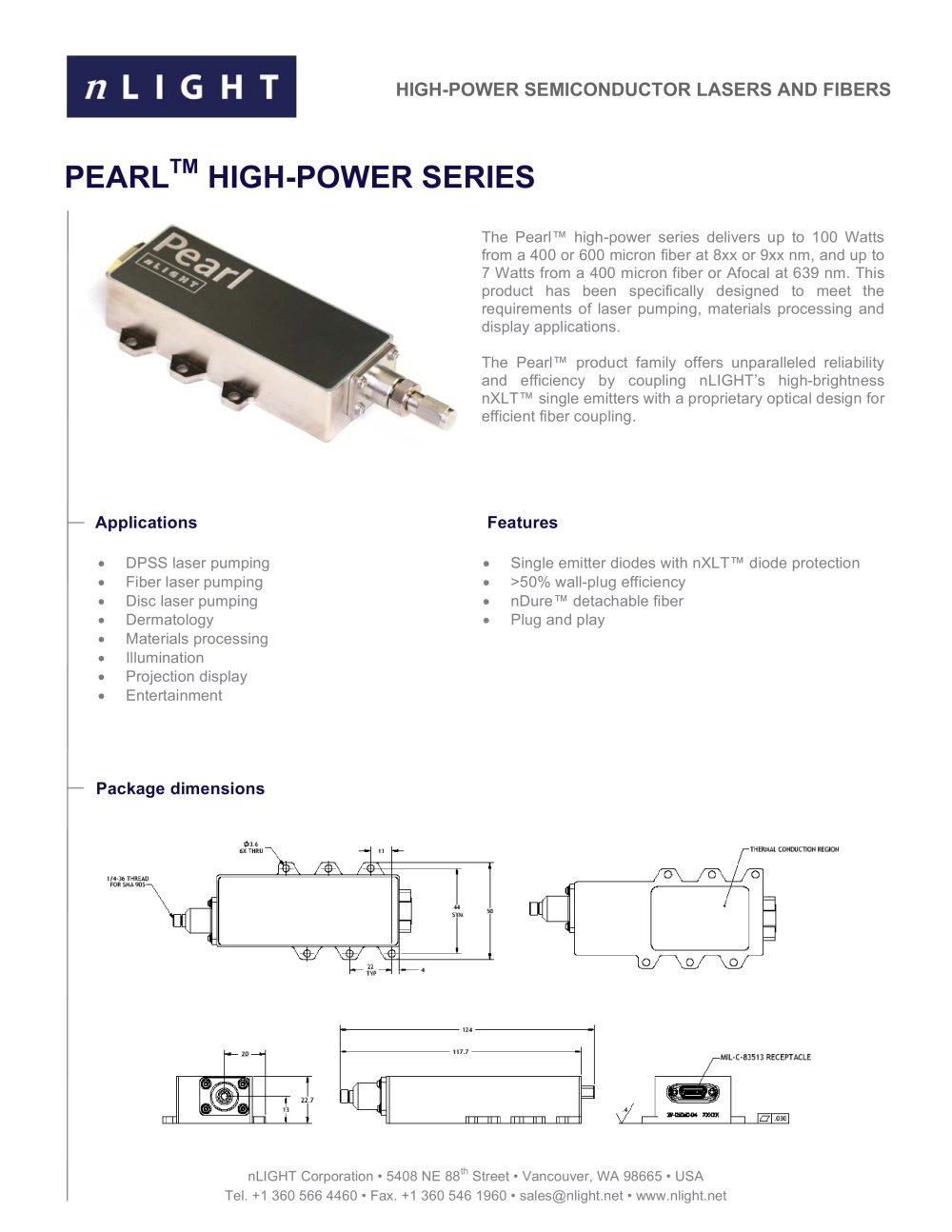

The Pearl high-power series delivers up to 100 Watts from a 400 or 600 micron fiber at 8xx or 9xx nm, and up to 7 Watts from a 400 micron fiber or Afocal at 639 nm. This product has been specifically designed to meet the requirements of laser pumping, materials processing and display applications. The Pearlٙ product family offers unparalleled reliability and efficiency by coupling nLIGHTs high-brightness nXLTҙ single emitters with a proprietary optical design for efficient fiber coupling. > DPSS laser pumping Single emitter diodes with nXLT diode protection Fiber laser pumping >50% wall-plug efficiency Disc laser pumping nDureٙ detachable fiber Dermatology Plug and play Materials processing Illumination Projection display Entertainment > nLIGHT Corporation 5408 NE 88 th Street Օ Vancouver, WA 98665 USA Tel. +1 360 566 4460 Օ Fax. +1 360 546 1960 [email protected] Օ www.nlight.net size="-1">

P4-100-0808-3 P4-100-0880-3 P4-100-0980-3 Optical Center wavelength nm 808 880 980 Center wavelength tolerance nm 3 ѱ 3 3 CW output power W 100 100 100 Fiber core diameter ѵm 400 or 600 400 or 600 400 or 600 Beam divergence NA > 1 < 0.22 < 0.22 < 0.22 Spectral width (FWHM) nm < 3 < 3.5 < 3.5 Slope efficiency W / A 17.9 15.8 15.3 Electrical Power conversion efficiency % 50 51 54 Threshold current A 1.0 1.0 0.7 Operating current A 6.6 7.2 7.2 Operating voltage V 30.6 27.2 25.3 Series resistance 0.6 0.6 0.6 Mechanical Storage temperature range > 2 C -30 to +60 -30 to +60 -30 to +60 Mass gr TBD TBD...
