OPTOTOOLS™ INDUSTRIAL DIODE LASER OEM MODULES
3Pages

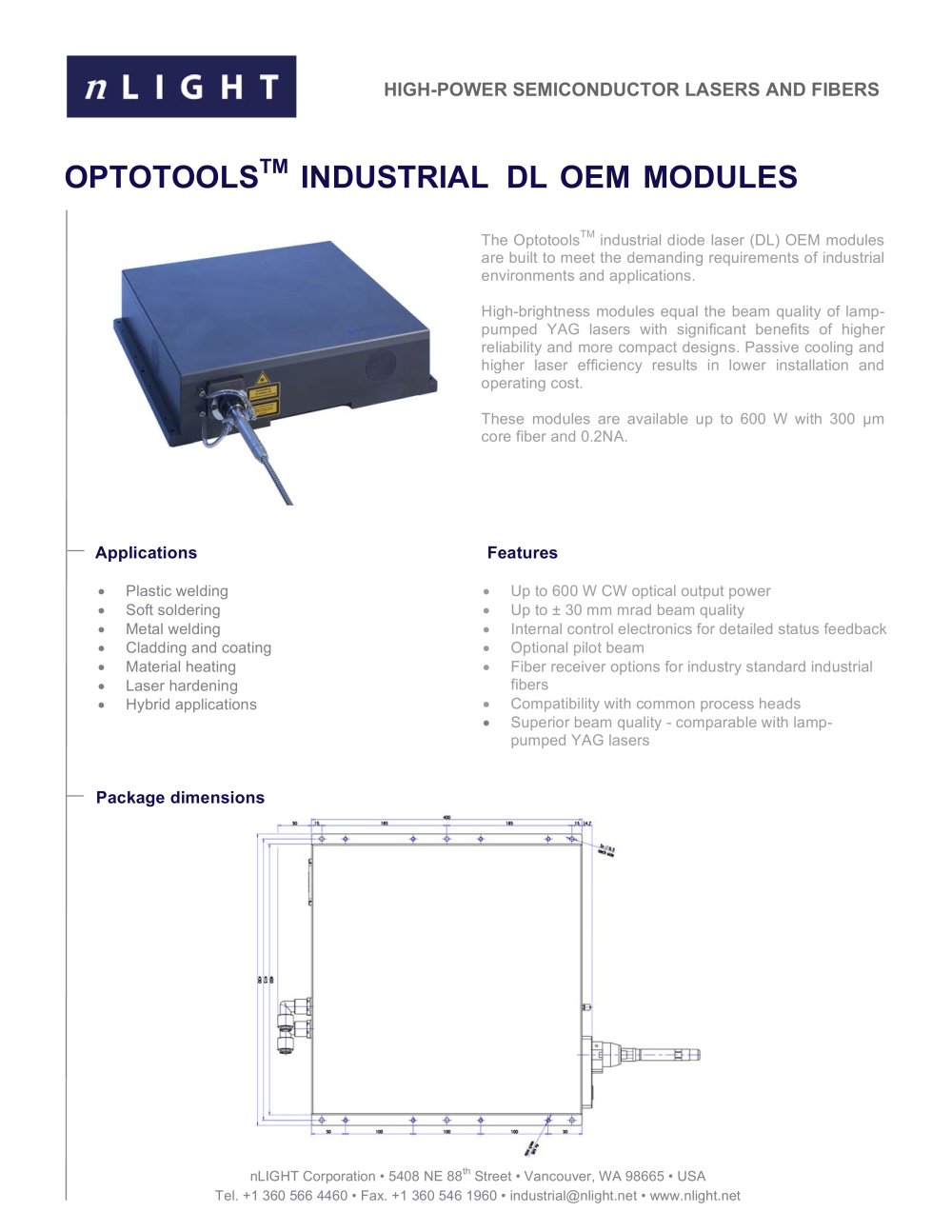

The Optotools > TM industrial diode laser (DL) OEM modules are built to meet the demanding requirements of industrial environments and applications. High-brightness modules equal the beam quality of lamp-pumped YAG lasers with significant benefits of higher reliability and more compact designs. Passive cooling and higher laser efficiency results in lower installation and operating cost. These modules are available up to 600 W with 300 m core fiber and 0.2NA. > Plastic welding Up to 600 W CW optical output power Soft soldering Up to ձ 30 mm mrad beam quality Metal welding Internal control electronics for detailed status feedback Cladding and coating Optional pilot beam Material heating Fiber receiver options for industry standard industrial fibers Laser hardening Hybrid applications Compatibility with common process heads Superior beam quality - comparable with lamp-pumped YAG lasers > nLIGHT Corporation 5408 NE 88 th Street Օ Vancouver, WA 98665 USA Tel. +1 360 566 4460 Օ Fax. +1 360 546 1960 industrial@nlight.net Օ www.nlight.net size="-1">

DL-OEM-0100-030-W-M DL-OEM-0200-030-W-M DL-OEM-0300-030-W-M DL-OEM-0400-030-W-M DL-OEM-0500-030-W-M DL-OEM-0600-030-W-M Optical Optical output power W 100 200 300 400 500 600 Short term stability (On/off, < 10 sec) % < 5 < 5 < 5 < 5 < 5 < 5 Stability over 24 h (At same operating temp.) % 1 ѱ 1 1 ѱ 1 1 ѱ 1 Wavelength nm 980 980 980 980 980 980 Wavelength tolerance nm 5 ѱ 5 5 ѱ 5 5 ѱ 5 Pilot laser (Option) Wavelength nm 635 635 635 635 635 635 Output power mW < 1 < 1 < 1 < 1 < 1 < 1 Fiber Fiber connector SMA 905/4 mm/LLK-LP SMA 905/4 mm/LLK-LP SMA 905/4 mm/LLK-LP LLK-LP LLK-HP LLK-HP Fiber...

DL-OEM-0100-030-W-M DL-OEM-0200-030-W-M DL-OEM-0300-030-W-M DL-OEM-0400-030-W-M DL-OEM-0500-030-W-M DL-OEM-0600-030-W-M Electrical Operating voltage (Max. value) V 28 56 84 112 140 168 Operating current (Max. value) A 8 8 8 8 8 8 Power conversion efficiency (Typical) % > 40 > 40 > 40 > 40 > 40 > 40 Threshold current (Typical) A 1 1 1 1 1 1 Thermal non condensing conditions > 2 Storage temperature ְC -20 to 50 -20 to 50 -20 to 50 -20 to 50 -20 to 50 -20 to 50 Operating humidity % 5 - 95 5 - 95 5 - 95 5 - 95 5 - 95 5 - 95 Cooling power (Max. value) W 150 300 400 550 700 800 Cooling water...
