LIEKKI™ YB600-20/125

Product catalog summary

Overview: The document provides technical specifications and performance data for nLIGHT Corporation's LIEKKITM Yb600-20/125DC fibers, which are high-power semiconductor laser amplifier fibers with a large core to cladding area ratio and high photodarkening resistivity.

Specifications:

Optical: Peak cladding absorption at 976 nm is nominally 14.6 dB/m. Cladding absorption at 920 nm is 3.4 ± 0.7 dB/m. The core numerical aperture is 0.08 ± 0.01.
Geometrical and Mechanical: Core diameter is 20 ± 2 µm with a core concentricity error of less than 1.5 µm. Cladding diameter is 125 ± 2 µm with an octagonal geometry. Coating diameter is 245 ± 15 µm, made of low index acrylate. Cladding numerical aperture is greater than 0.46. Proof test exceeds 100 kpsi.

Features:

High peak power and moderate average power amplifiers.
High photodarkening resistivity.
Large core to cladding area ratio and short application length.
Matching 6+1:1 pump to signal combiner available.

Applications: The fibers are suitable for high-power amplifiers and marking applications.

Performance Data: The document includes a graph showing signal power versus absorbed pump power at 920 nm, indicating an efficiency of 74%.

Notice: nLIGHT Corporation reserves the right to make changes to specifications and product descriptions without notice and offers a limited warranty for customer satisfaction.

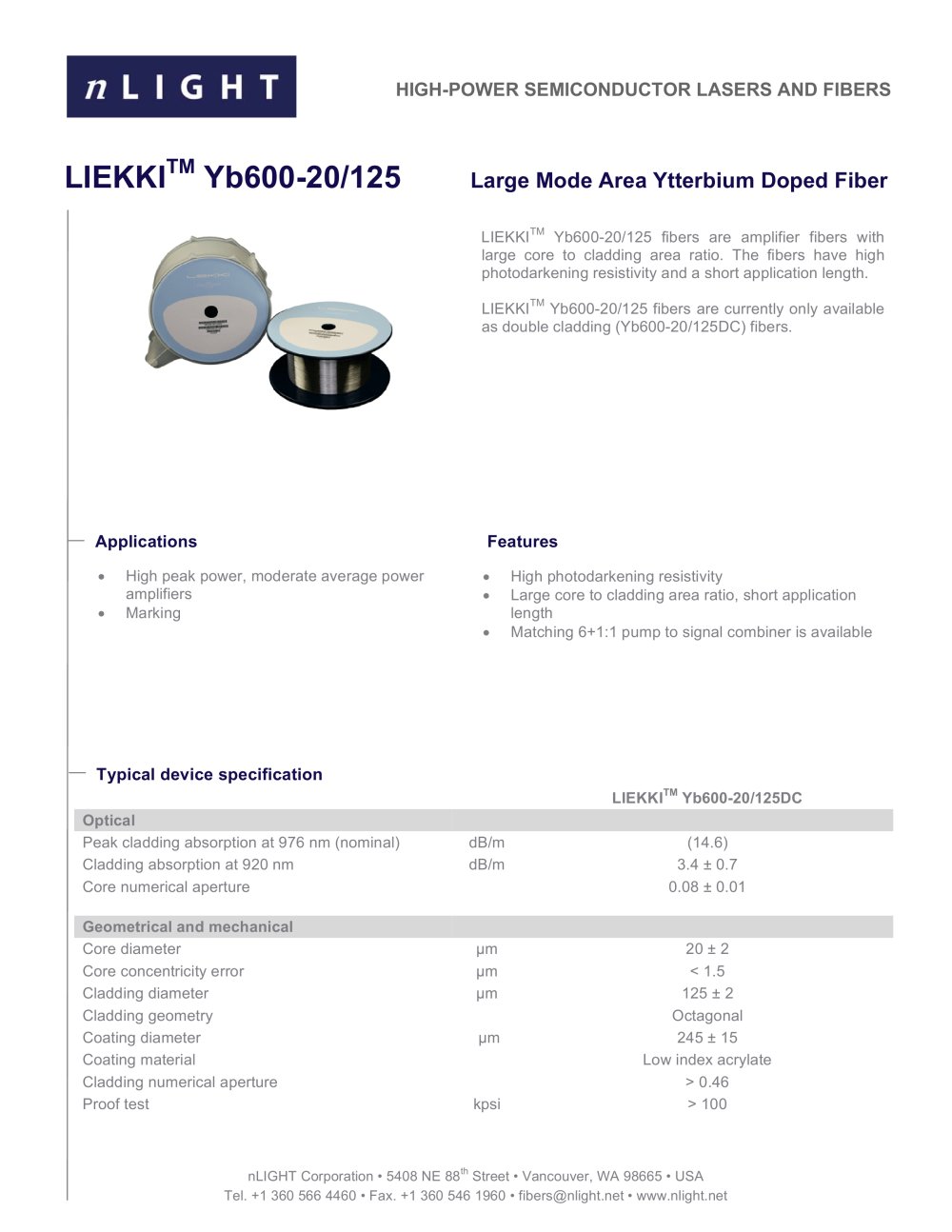

Catalog excerpts

LIEKKI > TM Yb600-20/125 fibers are amplifier fibers with large core to cladding area ratio. The fibers have high photodarkening resistivity and a short application length. LIEKKI > TM Yb600-20/125 fibers are currently only available as double cladding (Yb600-20/125DC) fibers. > High peak power, moderate average power amplifiers High photodarkening resistivity Large core to cladding area ratio, short application length Marking Matching 6+1:1 pump to signal combiner is available LIEKKI > TM Yb600-20/125DC Optical Peak cladding absorption at 976 nm (nominal) dB/m (14.6) Cladding absorption at 920 nm dB/m 3.4 0.7 Core numerical aperture 0.08 ѱ 0.01 Geometrical and mechanical Core diameter m 20 ձ 2 Core concentricity error m < 1.5 Cladding diameter յm 125 2 Cladding geometry Octagonal Coating diameter ѵm 245 15 Coating material Low index acrylate Cladding numerical aperture > 0.46 Proof test kpsi > 100 > nLIGHT Corporation ѕ 5408 NE 88 th Street ? Vancouver, WA 98665 ? USA Tel. +1 360 566 4460 ? Fax. +1 360 546 1960 ? [email protected] ? www.nlight.net size="-1">

Open the catalog to page 1
