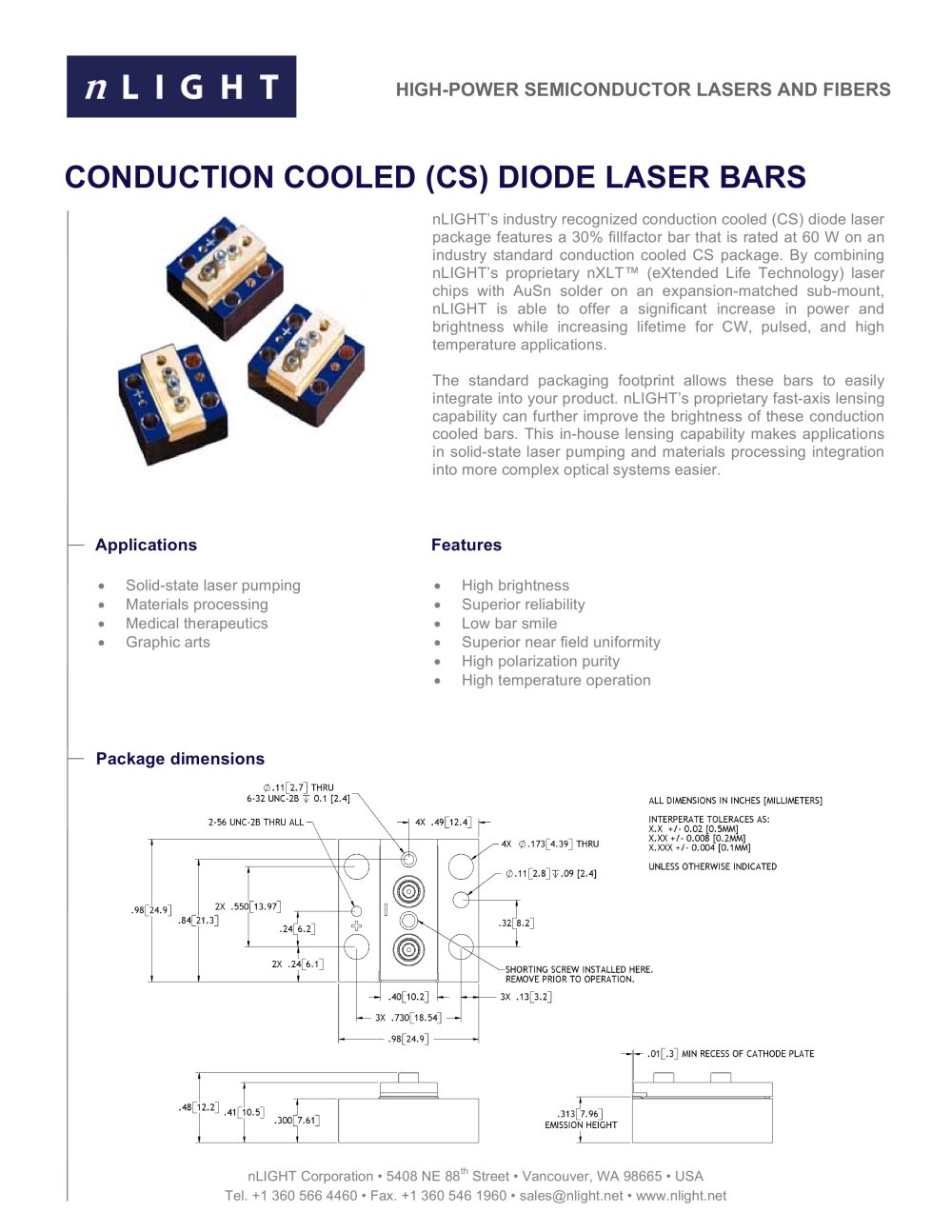

CONDUCTION COOLED (CS) DIODE LASER BARS (NON VISIBLE) - 1

nLIGHTs industry recognized conduction cooled (CS) diode laser package features a 30% fillfactor bar that is rated at 60 W on an industry standard conduction cooled CS package. By combining nLIGHTҒs proprietary nXLT (eXtended Life Technology) laser chips with AuSn solder on an expansion-matched sub-mount, nLIGHT is able to offer a significant increase in power and brightness while increasing lifetime for CW, pulsed, and high temperature applications. The standard packaging footprint allows these bars to easily integrate into your product. nLIGHTْs proprietary fast-axis lensing capability can further improve the brightness of these conduction cooled bars. This in-house lensing capability makes applications in solid-state laser pumping and materials processing integration into more complex optical systems easier. > Solid-state laser pumping High brightness Materials processing Superior reliability Medical therapeutics Low bar smile Graphic arts Superior near field uniformity High polarization purity High temperature operation > nLIGHT Corporation 5408 NE 88 th Street Օ Vancouver, WA 98665 USA Tel. +1 360 566 4460 Օ Fax. +1 360 546 1960 sales@nlight.net Օ www.nlight.net size="-1">

Open the catalog to page 1

CONDUCTION COOLED (CS) DIODE LASER BARS (NON VISIBLE) - 2

CS-60-xxx Optical Center wavelength (Range) nm 790 - 830 CW output power W 60 Center wavelength tolerance nm 3 Emitter area ѵm 150 x 1 Number of emitters # 19 Emitter size m 150 Emitter spacing յm 500 Spectral width (FWHM) nm < 3 Slope efficiency W / A > 1.1 Polarization TM or TE TM Fast-axis divergence Degrees 36 Slow-axis divergence Degrees 10а Wavelength temperature coefficient > 1 nm 0.28 / C Electrical Total conversion efficiency % 52 Threshold current A 10 Operating current A 60 Operating voltage V < 1.9 Series resistance 0.002 Mechanical Storage temperature range > 3 аC -20 to +80...
