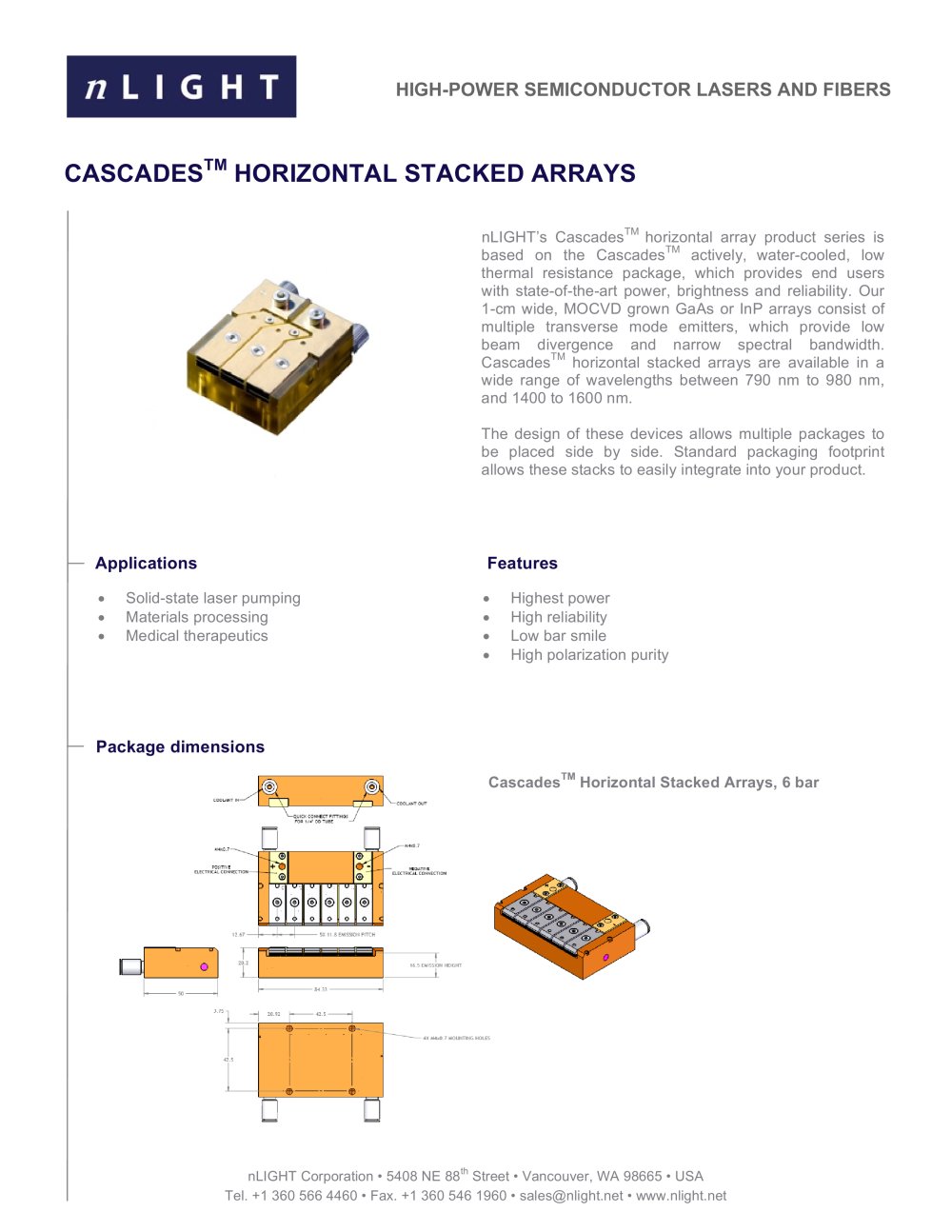

CASCADESTM HORIZONTAL STACKED ARRAYS
1 / 3Pages

nLIGHT Corporation • 5408 NE 88th Street • Vancouver, WA 98665 • USA Tel. +1 360 566 4460 • Fax. +1 360 546 1960 • sales@nlight.net • www.nlight.net HIGH-POWER SEMICONDUCTOR LASERS AND FIBERS nLIGHT’s CascadesTM horizontal array product series is based on the CascadesTM actively, water-cooled, low thermal resistance package, which provides end users with state-of-the-art power, brightness and reliability. Our 1-cm wide, MOCVD grown GaAs or InP arrays consist of multiple transverse mode emitters, which provide low beam divergence and narrow spectral bandwidth. CascadesTM horizontal stacked arrays are available in a wide range of wavelengths between 790 nm to 980 nm, and 1400 to 1600 nm. The design of these devices allows multiple packages to be placed side by side. Standard packaging footprint allows these stacks to easily integrate into your product. • Solid-state laser pumping • Materials processing • Medical therapeutics • Highest power • High reliability • Low bar smile • High polarization purity CASCADESTM HORIZONTAL STACKED ARRAYS Applications Features Package dimensions CascadesTM Horizontal Stacked Arrays, 6 bar

nLIGHT Corporation • 5408 NE 88th Street • Vancouver, WA 98665 • USA Tel. +1 360 566 4460 • Fax. +1 360 546 1960 • sales@nlight.net • www.nlight.net HIGH-POWER SEMICONDUCTOR LASERS AND FIBERS HSA-ww-xxxx-yyyy1 Optical Center wavelength nm 790 - 825 790 - 825 910 - 980 910 - 980 1400 - 1600 Center wavelength tolerance nm ± 3 ± 3 ± 5 ± 3 ± 5 Number of bars2 # 1 - 13 1 - 13 1 - 13 1 - 13 1 - 13 CW output power / bar W 60 100 60 80 25 Bar length cm 1 1 1 1 1 Number of emitters / bar # 49 64 19 49 19 Emitter size ìm 100 120 100 100 100 Emitter spacing ìm 200 150 200 200 500 Spectral width (FWHM)...

nLIGHT Corporation • 5408 NE 88th Street • Vancouver, WA 98665 • USA Tel. +1 360 566 4460 • Fax. +1 360 546 1960 • sales@nlight.net • www.nlight.net HIGH-POWER SEMICONDUCTOR LASERS AND FIBERS 1 HSA-ww-xxxx-yyyy: ww denotes the number of bars in the stack; xxxx denotes CW power; yyyy denotes the operating wavelength. 2 Available up to 12 bars across. 3 The wavelength temperature coefficient is the wavelength shift per °C change at the diode junction. 4 A non-condensing environment is required for storage and operation below ambient dew point. 5 Thermal resistance is the diode junction...
