Tactile Electrical Ratings

Product catalog summary

Switch Selection Guide Summary

Specifications:

Switches are categorized by their current and voltage ratings, ranging from 0.4VA to 30A and 28V AC/DC to 250V AC.
Switch types include miniature, ultra-mini, submini, and standard, with various angle configurations such as 30°, 45°, 60°, 90°, and 120°.

Procedures:

Selection of switches should be based on the required current and voltage specifications for the application.
Consideration of the physical configuration (angle and mounting type) is essential for compatibility with the device design.

Norms and Recommendations:

Ensure that the switch's current and voltage ratings match the application's requirements to prevent electrical failures.
Choose the appropriate switch type (miniature, ultra-mini, etc.) based on space constraints and design needs.

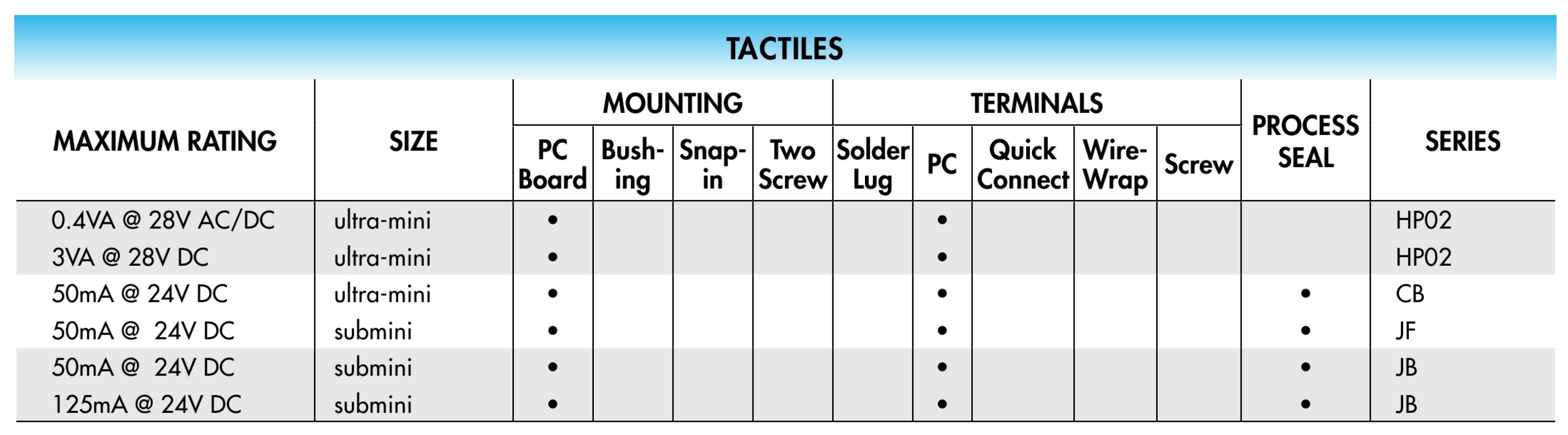

Key Data from Tables:

Switches with lower current ratings (e.g., 0.4VA) are available in ultra-mini and submini configurations, suitable for low-power applications.
Higher current switches (up to 30A) are available in standard configurations, suitable for high-power applications.

Critical Information:

Exigencies: Ensure compatibility of switch ratings with application requirements.
Parameters: Current and voltage ratings, physical configuration, and mounting type.
Limitations: Space constraints may dictate the choice of switch type.
Best Practices: Verify all specifications before selection to ensure optimal performance and safety.
