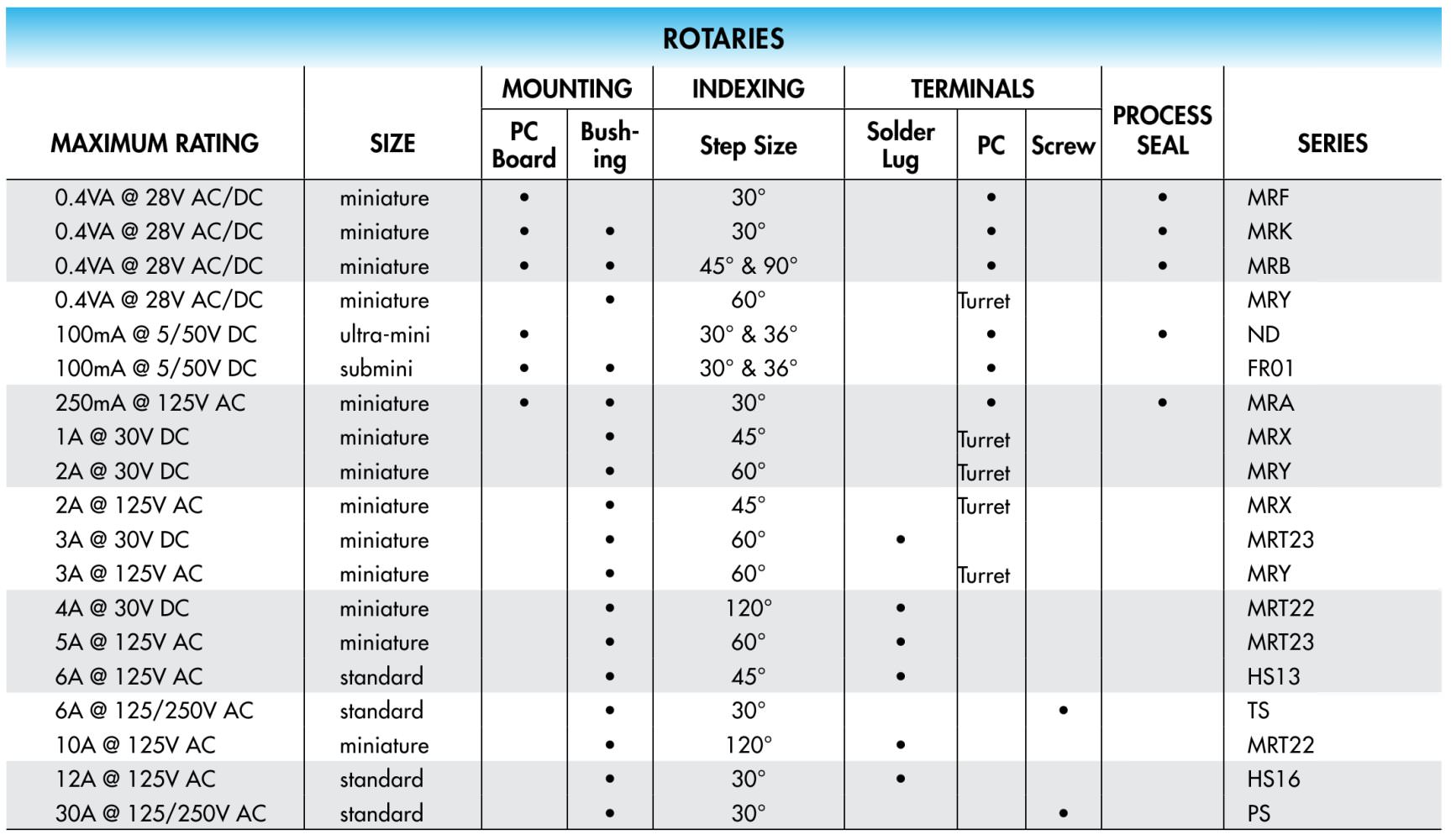

Rotary Electrical Ratings

Product catalog summary

Switch Selection Guide Summary

Specifications:

Switches are categorized by their current and voltage ratings, ranging from 0.4VA to 30A, and 28V AC/DC to 250V AC.
Switch types include miniature, ultra-mini, submini, and standard, with various angle configurations such as 30°, 45°, 60°, 90°, and 120°.

Procedures:

Selection of switches should be based on the required current and voltage specifications for the application.
Consideration of the physical configuration (angle and mounting type) is crucial for compatibility with the intended use.

Key Data from Tables:

Miniature switches are available in various configurations, supporting different current ratings from 0.4VA to 10A.
Standard switches support higher current ratings, up to 30A, and are available in 30° and 45° configurations.
Submini and ultra-mini switches are designed for lower current applications, with ratings from 50mA to 125mA.

Recommendations:

Choose switches based on the specific electrical requirements and physical constraints of the application.
Ensure compatibility with the system's voltage and current needs to prevent failures.
