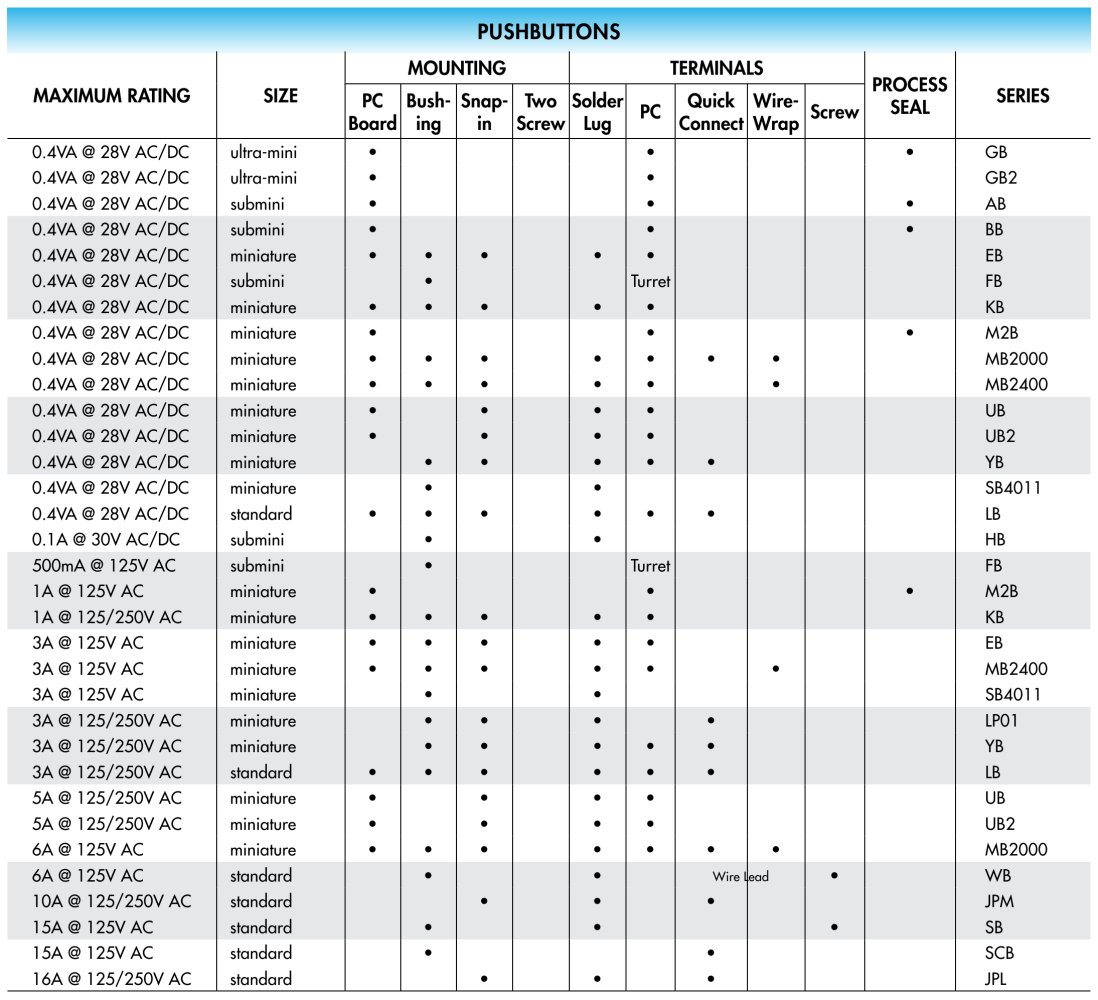

Pushbutton Electrical Ratings

Product catalog summary

Switch Selection Guide Summary

Specifications:

Switches are categorized by their voltage and current ratings, ranging from ultra-miniature to standard sizes.
Voltage ratings include 28V AC/DC, 125V AC, and 250V AC.
Current ratings vary from 0.4VA to 16A, depending on the switch type and application.

Switch Types:

Ultra-miniature: Designed for low power applications, with ratings such as 0.4VA @ 28V AC/DC and 1.0mA @ 10mV AC/DC.
Subminiature: Slightly larger than ultra-miniature, with ratings like 0.4VA @ 28V AC/DC and 0.1A @ 30V AC/DC.
Miniature: Suitable for moderate power applications, with ratings up to 6A @ 125V AC.
Standard: For higher power applications, with ratings up to 16A @ 125/250V AC.

Applications:

Switches are used in various electronic devices, with specific models tailored for different voltage and current requirements.
Wire lead options are available for certain models, indicating flexibility in installation and connectivity.

Key Considerations:

Selection of a switch should be based on the specific voltage and current requirements of the application.
Consideration of the physical size and mounting type is crucial for compatibility with the device design.
