Keylocks

Product catalog summary

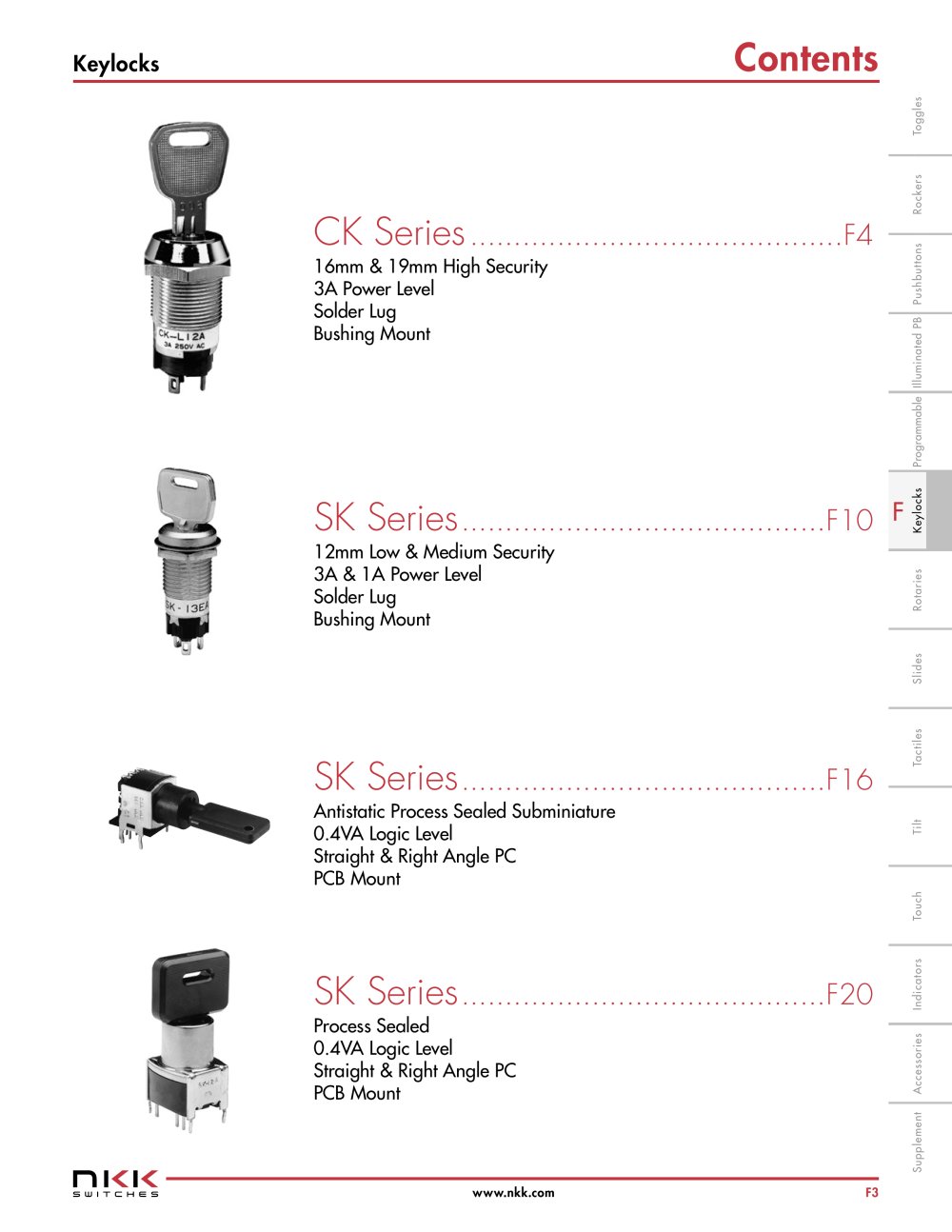

Overview: The document outlines the specifications and features of the CK and SK series keylocks by NKK Switches, focusing on high-security and low-to-medium security applications. It covers electrical capacity, mechanical and electrical life, materials, environmental data, installation guidelines, and ordering examples.

CK Series High Security Keylocks:

Specifications: Available in 16mm and 19mm sizes, with a power level of 3A at 250V AC. Features include solder lug terminals and bushing mount.
Electrical and Mechanical Ratings: Contact resistance is 20 milliohms max, insulation resistance is 1,000 megohms min at 500V DC, and dielectric strength is 1,000V AC min between contacts.
Materials: Keys are made of brass with nickel or chrome plating, and the housing is made of glass fiber reinforced PBT or zinc alloy.
Environmental Data: Operating temperature ranges from -25°C to +70°C, with humidity resistance and vibration and shock specifications provided.
Distinctive Features: High dielectric strength, antistatic features, and a push-and-lock mechanism for tubular keys.

SK Series Low & Medium Security Keylocks:

Specifications: Available in 12mm size, with power levels of 3A at 125V AC for low and medium security, and 1A at 250V AC for low security.
Electrical and Mechanical Ratings: Contact resistance is 10 milliohms max, insulation resistance is 1,000 megohms min at 500V DC, and dielectric strength is 1,000V AC min between contacts.
Materials: Keys and tumbler barrels are made of zinc alloy with chrome plating, and the base is made of phenolic resin.
Environmental Data: Operating temperature ranges from -25°C to +70°C, with humidity resistance and vibration and shock specifications provided.
Distinctive Features: High dielectric strength, dust-resistant construction, and a detent mechanism for accurate switch setting.

Ordering Information: Examples of typical switch ordering codes are provided, detailing configurations for circuits, key-removable positions, contact materials, and lock mechanisms.

SK Series Keylocks Detailed Specifications:

Security Mechanisms: Low and medium security options with 90° and 45° angular throws.
Contact Materials: Silver over silver for power level applications and gold over bronze or copper for logic level applications.
Electrical Ratings: Power level rated at 3A @ 125V AC; logic level rated at 0.4VA @ 28V AC/DC.
Mechanical and Electrical Life: 30,000 mechanical cycles and 20,000 electrical cycles minimum.
Environmental Data: Operating temperature range from -25°C to +70°C, with humidity resistance of 90-95% for 240 hours at 40°C.

Materials and Construction:

Key: Made of polyacetal.
Housing/Bushing: Glass fiber reinforced polyester (PBT).
Base: Glass fiber reinforced polyamide.
Contacts: Beryllium copper and phosphor bronze with gold plating.

Distinctive Features:

Antistatic protection withstanding 15 kilovolts ESD.
Sealed construction with internal o-ring and gasket for protection during automated processing.
Subminiature size for high-density mounting.
Bifurcated, self-wiping contact mechanism for reliable logic-level performance.

Standards and Certifications: The SK Series devices are not tested for UL recognition or CSA certification but are designed for low-voltage, low-current, logic-level circuits.
