NKK Switches

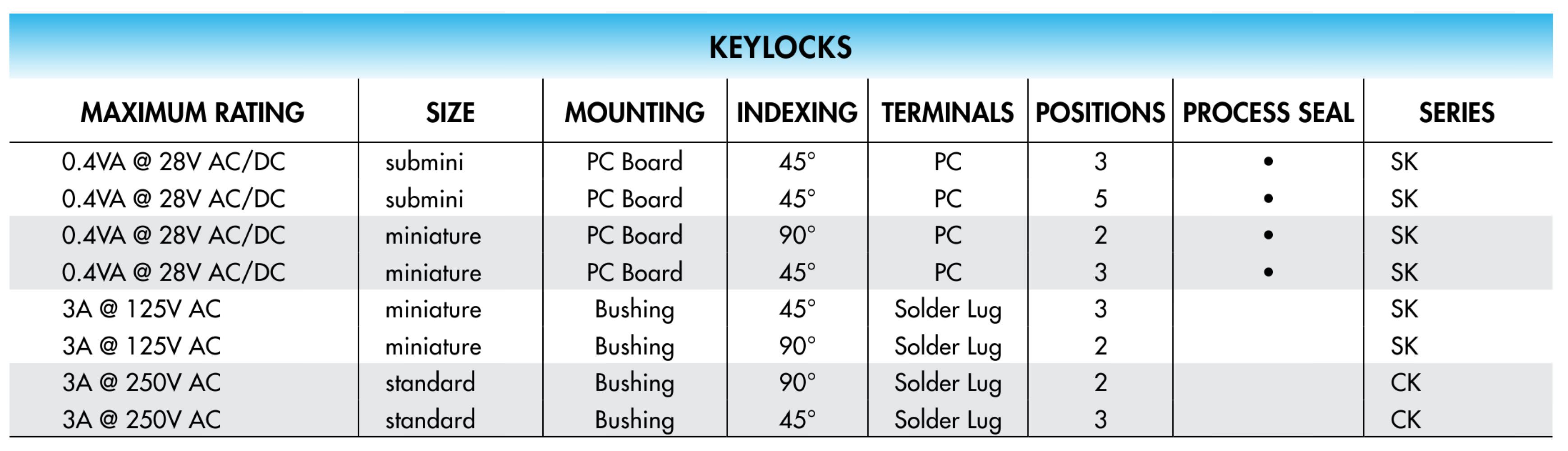

Keylock Electrical Ratings

Keylock Electrical Ratings

1 / 1 PageView full catalog

Keylock Electrical Ratings

Product catalog summary

Switch Selection Guide Summary

Specifications:

Switches are categorized by their voltage and current ratings, ranging from 0.4VA to 30A, and voltages from 5V to 250V AC/DC.
Switch types include miniature, ultra-mini, submini, and standard, with various angle configurations such as 30°, 45°, 60°, 90°, and 120°.

Procedures:

Selection of switches should be based on the required current and voltage specifications for the application.
Consideration of the physical configuration (angle and mounting type) is crucial for compatibility with the device design.

Norms and Recommendations:

Ensure compatibility with the electrical specifications to prevent overloading and potential failure.
Choose the appropriate switch type (miniature, submini, etc.) based on space constraints and design requirements.

Key Data from Tables:

Switches with higher current ratings (up to 30A) are available for standard applications, while lower ratings (0.4VA) are suitable for miniature and subminiature applications.
Different mounting options such as PC Board and Solder Lug are available, providing flexibility in design and installation.

Critical Information:

Ensure the switch's current and voltage ratings match the application's requirements to maintain safety and functionality.
Consider the physical dimensions and mounting style to ensure proper fit and operation within the device.
