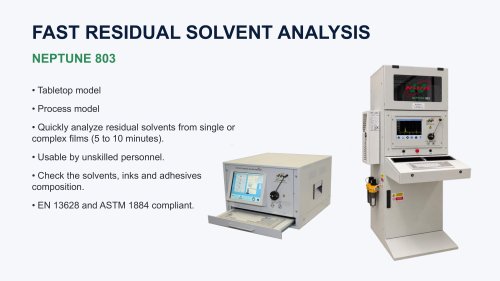

• Tabletop model • Process model • Quickly analyze residual solvents from single or complex films (5 to 10 minutes). • Usable by unskilled personnel. • Check the solvents, inks and adhesives composition.

TURN RESIDUAL SOLVENT ANALYSIS INTO NEPTUNE 803 Traditional Lab GC • Skilled technician required • Response time in 45 min. Neptune 803 • Usable by press operators • Response time 7 min. The speed of the Neptune analyser allows production to correct for high concentrations of residual solvent, starting with the first roll prod

COMPARISON WITH STANDARD GCs TRADITIONAL LAB GC Response time from 45 to 50 min. Response time from 7 to 14 min. Slow and complex sampling. Quick and easy sampling. Need frequent span checks. Complex software and report reading. Guided software and easy reports. For skilled personnel only. Works in clean and temperature-controlled environment only. Works in harsh environment (made for production areas). No fault alarm recording.

HOW TO USE IT? Neptune 803 quickly extract and measure residual solvents from single or multilayer films automatically. Simply cut a known film sample and insert it into the headspace. Neptune will print and create a .pdf file report with the results, directly on your corporate network within 7 minutes. 5. Film insertion in test tube 6. Insertion in desorber body 8. Automatic analysis Start-up

RAPPORTO ANALISI FILM N. 994 Area Film Campione [cm1] SO Tempo Incubaziene [r Rapporto Risultati N. Name IS-n-Buti Acetate Cone V Area R.T. R.T.Ref. 'Vabre Riferito ad Acetate di Elite Condizioni Operative Min Max Defta Mir Max Delta Ineubazbne CanMIMII 2 23 0? CaiUlROw IBiMI IB XI IS ErnijJip.™ |MI] 0.53 029 i COMPARABLE RESULTS TO THE MAIN EUROPEAN AND US STANDARDS EN 13628 comparable | ASTM 1884 comparable

• 40 Liters gas cylinder or optional H2 generator • Nira filtering system Power supply

CALIBRATION AND MAINTENANCE We worked hard to minimize maintenance and calibration frequencies, obtaining record results. Once a year Ask for a service visit from our staff. Every 6 months Calibration check: the procedure is guided from the software and takes just few minutes using a single injection of a customized standard mixture.

E-mail, remote and phone service. Interventions performed per Instruments serviced Working days for intervention Working days for intervention year worldwide in Europe worldwide Our service department work worldwide every day, on 6 different kind of Nira instruments.
